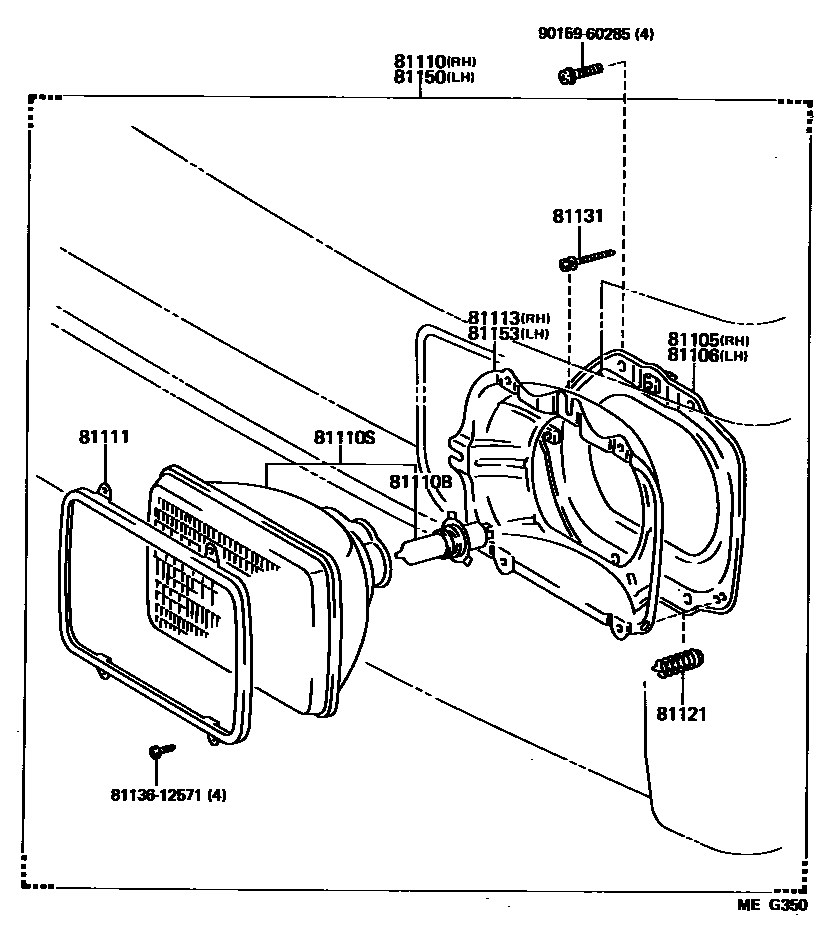

Toyota DYNA100 — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
HALOGEN,WHITE
81110BBULB(FOR HEADLAMP, NO.1)
12V 45/40W,WHITE,12V 45/40W,WHITE
12V 60/55W,*HAL *WH,12V 60/55W,WHITE,HALOGEN
sub90981-13058
12V 60/55W,*HAL *YE,12V 60/55W,YELLOW,HALOGEN
sub90981-13H01
81110SSEALED BEAM UNIT, NO.1
12V 65/55W,*WB
12V 45/40W,*WSB,*SSB,WHITE
12V 45/40W,*WSB,*SSB,WHITE
12V 60/55W,*WSB,*SSB,HALOGEN,WHITE
12V 60/55W,*YSB,*SSB,HALOGEN,YELLOW
81111RING, SEALED BEAM RETAINING
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
HALOGEN,WHITE
81153RING, SEALED BEAM MOUNTING, NO.1 LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9015960285
main90159-60285
13 parts on this diagram · 1 diagram in section
