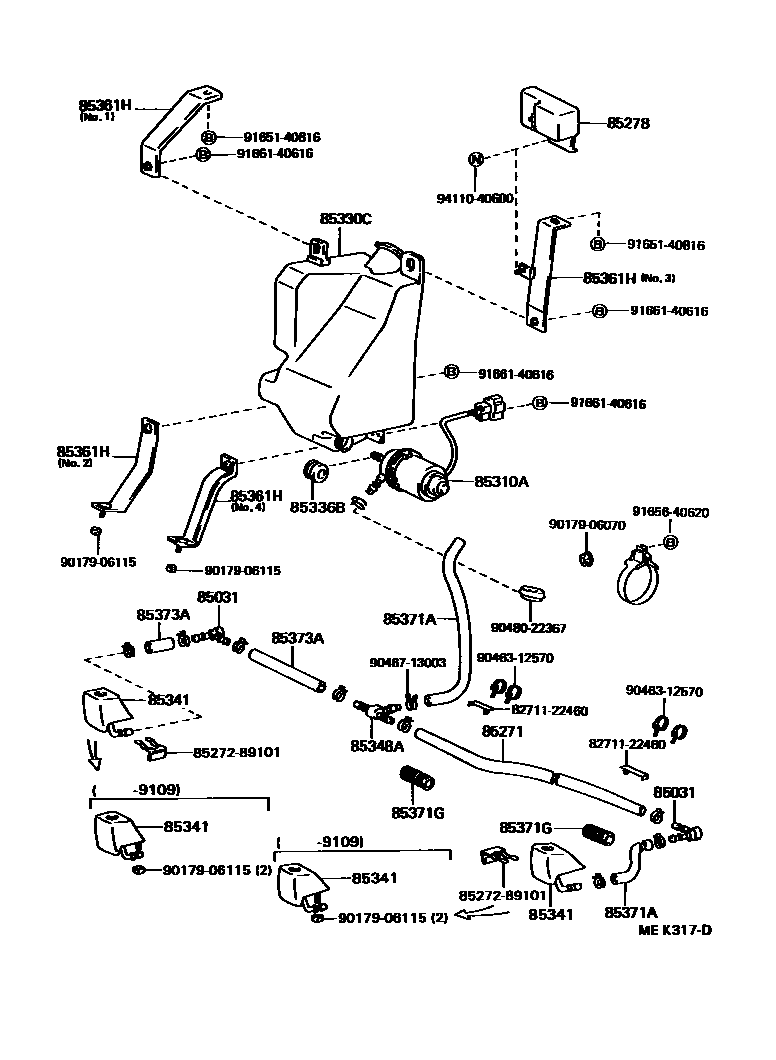

Toyota DYNA100 — HEADLAMP CLEANER
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85271HOSE, HEADLAMP CLEANER, NO.1
L=1320
85278RELAY ASSY, HEADLAMP CLEANER CONTROL
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85330CJAR ASSY, HEADLAMP CLEANER WASHER
85336BPACKING, HEADLAMP CLEANER WASHER
FINLAND SPEC
SWEDEN SPEC
85341NOZZLE, HEADLAMP CLEANER WASHER
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85361HBRACKET, WASHER
NO.1
NO.2
NO.3
NO.4
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=640
85371GPROTECTOR, FRONT WASHER
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
L=40
8271122460WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22460
8527289101CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-89101
9017906070
main90179-06070
9017906115
main90179-06115
9046312570
main90463-12570
9046713003
main90467-13003
9048022367
main90480-22367
9165140816
main91651-40816
9165640620
main91656-40620
9166140616
main91661-40616
9411040600
main94110-40600
23 parts on this diagram · 1 diagram in section
