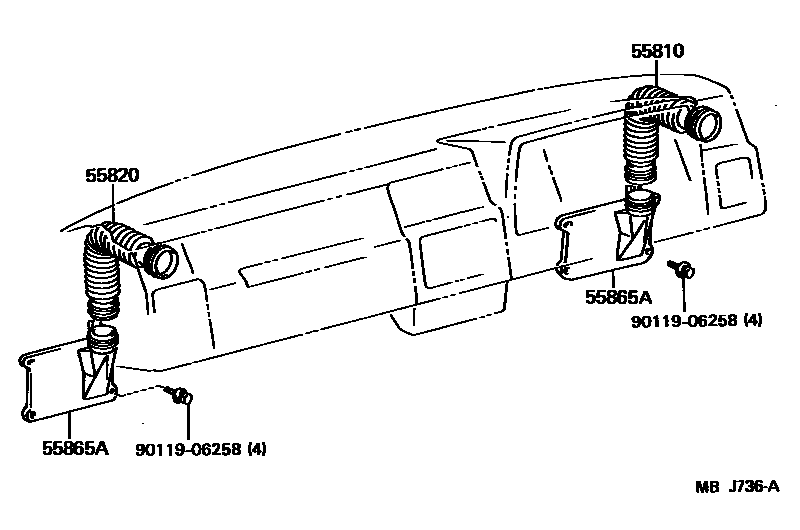

Toyota DYNA100 — FRONT VENTILATOR

0001 1 0002 1 0003 1

55810DUCT ASSY, SIDE VENTILATOR, RH

main55863-95405iLH80,YH8#..EUR,GEN198508-198708

55820DUCT ASSY, SIDE VENTILATOR, LH

main55863-95405iLH80,YH8#..EUR,GEN198508-198708

55865ABOX, INSTRUMENT VENTILATOR

main55084-95400×2iLH80,YH8#..EUR,GEN198508-198708

main55810-95403iLH80,YH80..LHD..GEN198608-198708

W/FOOT VENTILATOR,LH

9011906258

main90119-06258

4 parts on this diagram · 3 diagrams in section
