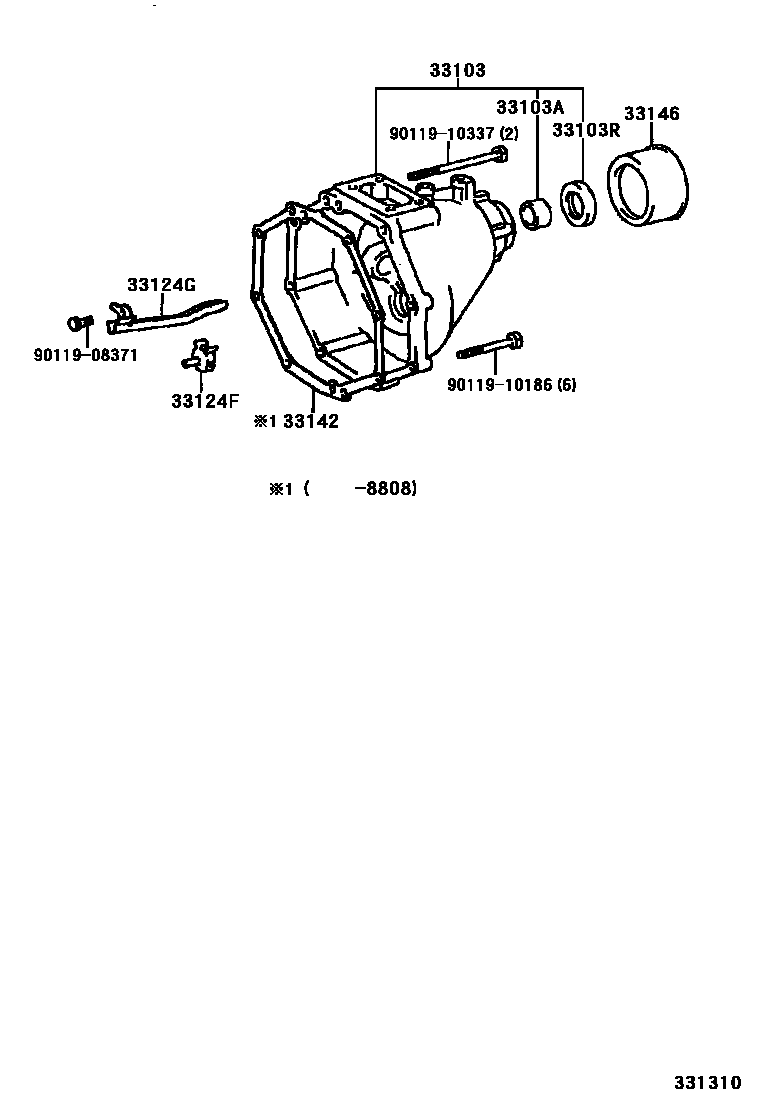

Toyota DYNA100 — EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-26042iLH80,YH81..5F198708-198906

main33103-28041iLH80,YH81..5F198906-199505

sub33103-28031

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-73120iLH80,YH81..5F198708-199505

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iLH80,YH81..5F198808-199505

main90311-38040iLH80,YH81..5F198708-198808

sub90311-38030

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-36010iLH80,YH81..5F198708-199505

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-28010iLH80,YH81..5F198708-198908

sub33124-28011

main33124-28011iLH80,YH81..5F198908-199505

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iLH80,YH81..5F198708-198808

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iLH80,YH81..5F198708-199303

sub33146-30020

main33146-30010iLH80,YH81..GEN..IV199303-199501

MALAYSIA SPEC

sub33146-30020

main33146-30020iLH80,YH81199303-199505

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

10 parts on this diagram · 1 diagram in section
