Toyota DYNA100 — DISTRIBUTOR

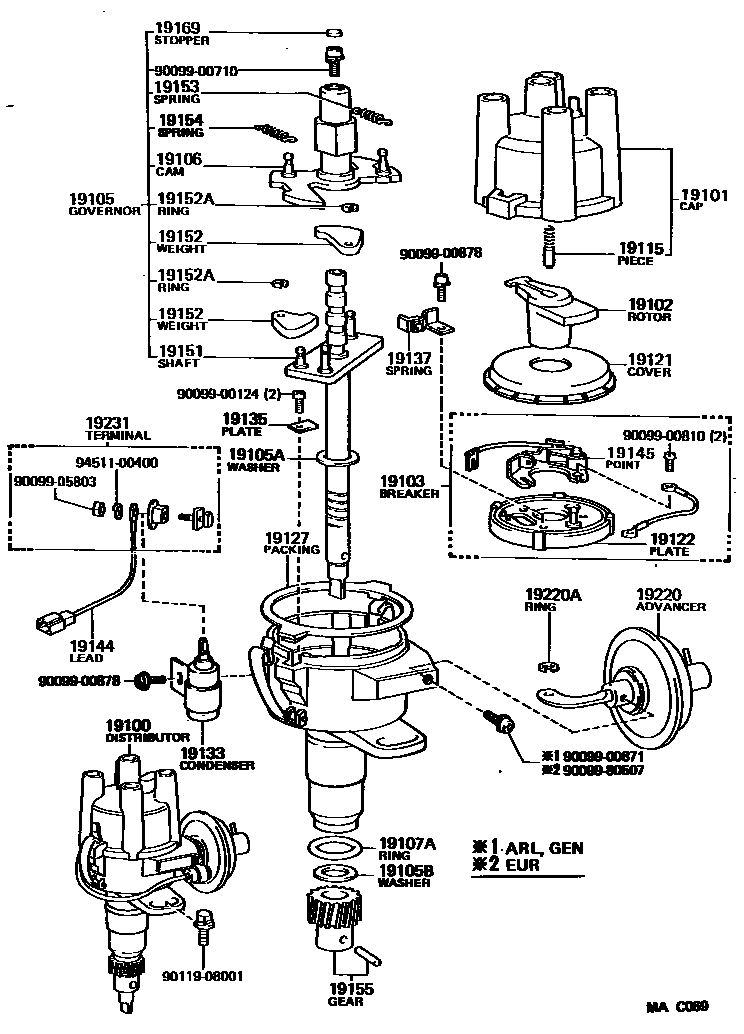

Parts diagram

19100DISTRIBUTOR ASSY

main19030-72080i199109-199505

main19030-73060i198910-199109

main19030-73130i199109-199505

main19100-71010i198708-199109

main19100-71020i198708-198910

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-71010i199109-199505

main19101-71020i198910-199109

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16040i199109-199505

main19102-16060i198910-199505

main19102-26151i198708-198903

main19102-33012i198708-198903

main19102-73060i198903-198910

main19102-75010i198903-199109

19103BREAKER SUB-ASSY, DISTRIBUTOR

main19103-26211i198910-199109

19105GOVERNOR SUB-ASSY

main19105-71011i198910-199010

main19105-71060i198910-199109

19105AWASHER(FOR GOVERNOR SHAFT THRUST)

main90099-01385i198910-199010

T=2.5

main90099-01386i198708-198910

T=2.7

main90099-01387i198910-199010

T=2.9

main90099-01412i198910-199010

T=2.3

main90099-01486×2i198910-199109

T=0.3

main90099-01487×2i198910-199109

T=0.4

main90099-01488×2i198910-199109

T=0.6

main90099-01489×2i198910-199109

T=0.5

19105BWASHER, NO.2(FOR GOVERNOR SHAFT THRUST)

main90099-01429i198708-199010

19106CAM SUB-ASSY, DISTRIBUTOR

main19106-71010i199010-199109

main19106-88220i198910-199010

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i198910-199010

main90099-14090i199103-199505

main90099-14106i199010-199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i198708-198910

main19115-63010×2i198910-199109

19121COVER, DUST PROOF

main19121-38030i198708-198910

main19121-63010i198910-199109

NO.1

main19121-63040i198910-199109

NO.2

19122PLATE, STATIONARY, DISTRIBUTOR

main19122-26211i198910-199109

19127PACKING, DUST PROOF

main19127-15010i198708-198910

main19127-63010i199109-199505

NO.1

main19127-63020i198910-199109

NO.2

19133CONDENSER, DISTRIBUTOR

main90099-52059i198708-199109

main90099-52070i198708-198910

19135PLATE, HOLDER

main90099-02198×2i198708-198910

19137SPRING SUB-ASSY, DAMPER

main19137-33012i198910-199109

19144LEAD, DISTRIBUTOR BREAKER

main19144-34180i198708-198809

main19144-34190i198910-199109

main19144-71061i198910-199109

main19144-72020i199109-199309

main19144-73050i199109-199505

main19144-73070i199309-199505

19145POINT, DISTRIBUTOR

main19145-26060i198910-199109

19151SHAFT, GOVERNOR

main19151-71010i198910-199109

main19151-71020i198708-198910

19152WEIGHT, GOVERNOR

main19152-63010×2i198711-199505

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122×2i198708-199505

19153SPRING, GOVERNOR, A

main19153-71012i198708-198910

main19153-71060i198910-199109

main19153-72060i199109-199505

19154SPRING, GOVERNOR, B

main19153-71012i198708-198910

main19153-71060i198910-199109

main19153-72060i199109-199505

19155GEAR, SPIRAL, DISTRIBUTOR

main19195-71010i198910-199109

main19195-71011i198708-198910

19169STOPPER, CAM GREASE

main19169-63011i199109-199505

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-71011i198708-198910

main19220-71030i199010-199109

main19220-71060i198910-199109

main19220-72070i199109-199505

main19220-73130i199109-199505

19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)

main90099-07109i198708-198910

19231TERMINAL, DISTRIBUTOR

main19231-24140i198910-199109

9009900124

main90099-00124

9009900710

main90099-00710

9009900810

main90099-00810

9009900871

main90099-00871

9009900878

main90099-00878

9009905803

main90099-05803

9009980507

main90099-80507

9011908001

main90119-08001

9451100400

main94511-00400

37 parts on this diagram · 5 diagrams in section

DISTRIBUTOR for Toyota DYNA100

This section contains 55 genuine Toyota parts for the DISTRIBUTOR system of the Toyota DYNA100. Key components include: IGNITION COIL & SPARK PLUG / GLOW PLUG, DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, BREAKER SUB-ASSY, DISTRIBUTOR.
