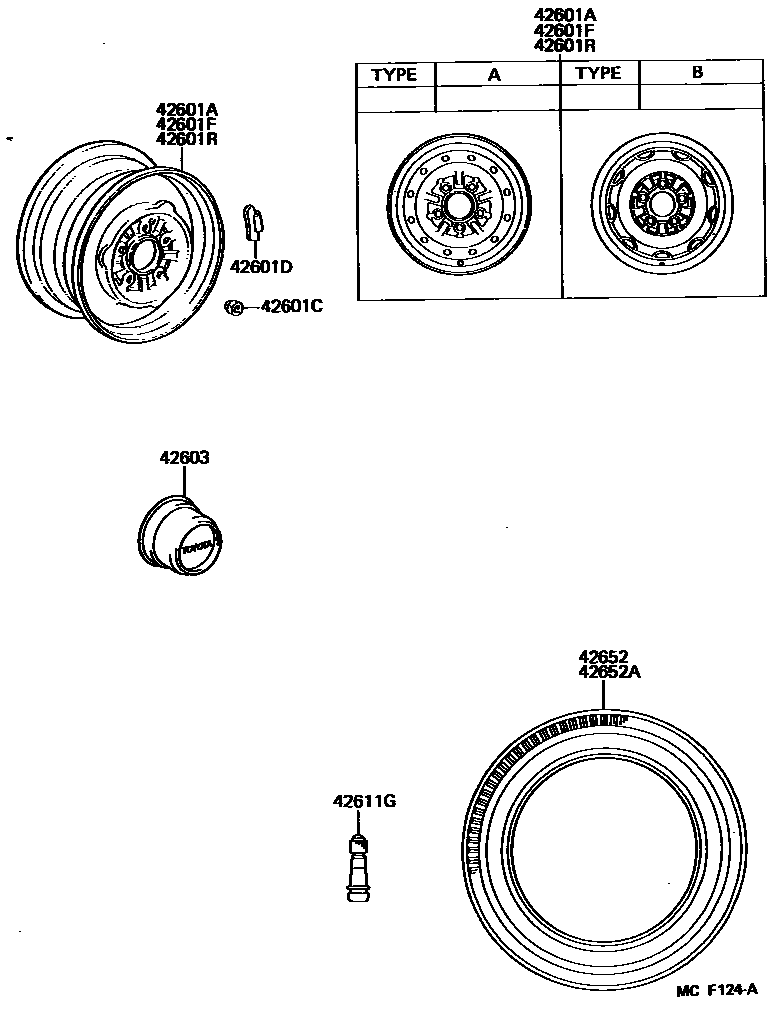

Toyota DYNA100 — DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
42601CNUT, HUB (FOR AXLE)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
10G,T=8.6
20G,T=8.6
30G,T=8.6
40G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
42601FWHEEL, DISC (FOR FRONT)
42601RWHEEL, DISC (FOR REAR)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*STE
42611GVALVE (FOR TUBELESS TIRE)
42652TIRE
185R14 6PR,*D/L,*T/Y
6.00-14-6,W(TUBE)
6.00-14-8,W(TUBE)
185R14-6,W(TUBE)
185R14C-8
185R14C-8
42652ATIRE (FOR SPARE)
185R14 6PR,*D/L,*T/Y
6.00-14-8,W(TUBE)
185R14-6,W(TUBE)
185R14C-8
185R14C-8
9 parts on this diagram · 1 diagram in section
