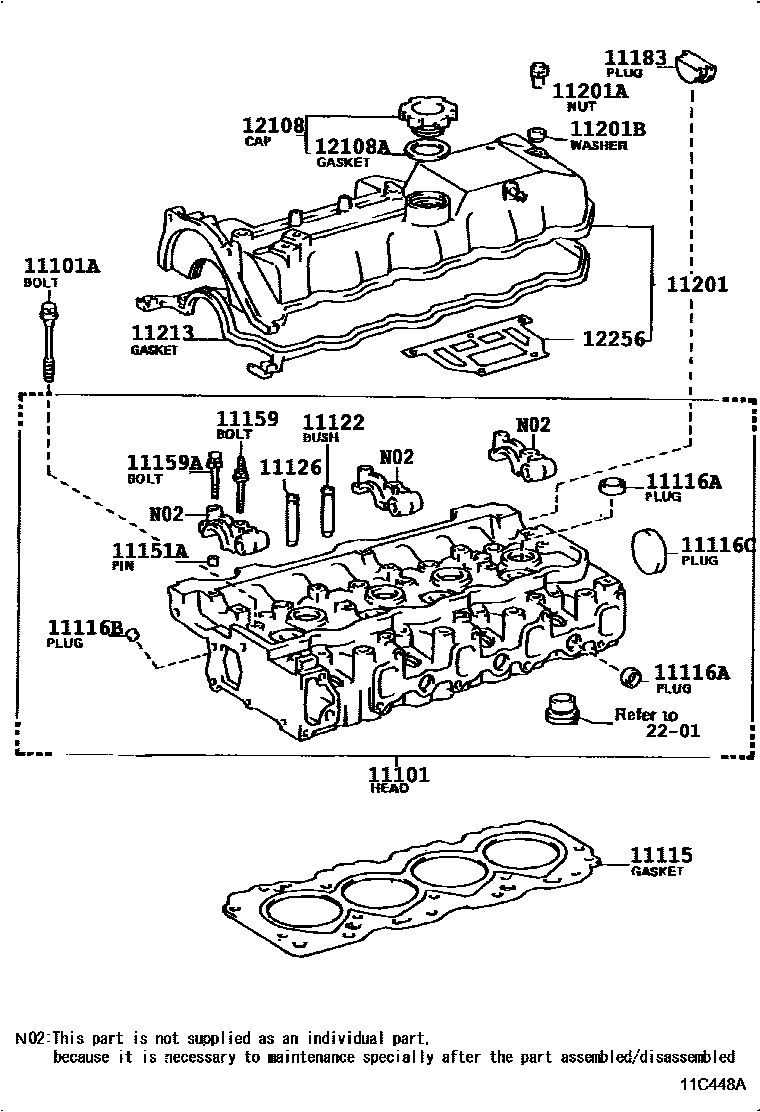

Toyota DYNA100 — CYLINDER HEAD
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=11,OD=11
L=8,OD=11
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-71012
sub11210-54031
sub11210-54032
sub11210-54041
sub11210-54042
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108AGASKET(FOR OIL FILLER CAP)
12256GASKET, VENTILATION BAFFLE
2201
20 parts on this diagram · 3 diagrams in section
