Toyota DYNA100 — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31231HUB, CLUTCH RELEASE BEARING
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
31232ACLIP, RELEASE BEARING HUB
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
IRELAND SPEC
33311WBEARING (FOR INPUT SHAFT)
9011908026
main90119-08026
11 parts on this diagram · 2 diagrams in section

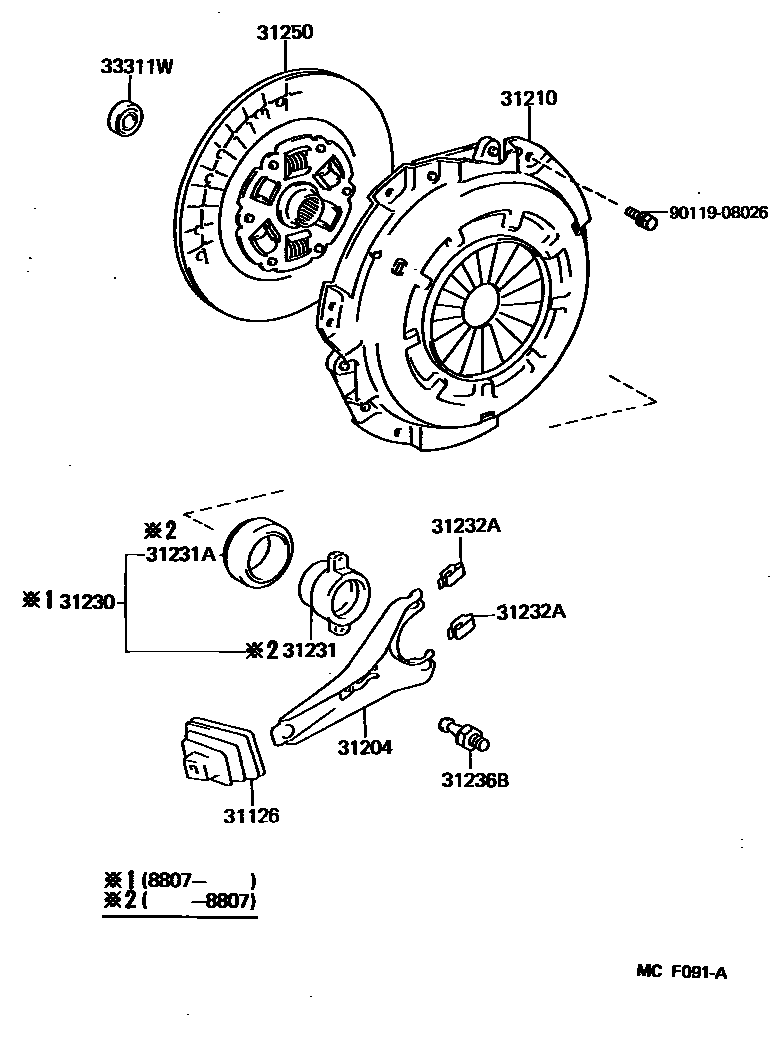

CLUTCH & RELEASE FORK for Toyota DYNA100
This section contains 11 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota DYNA100. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, HUB, CLUTCH RELEASE BEARING.
