Toyota DYNA100 — CARBURETOR ASSEMBLY

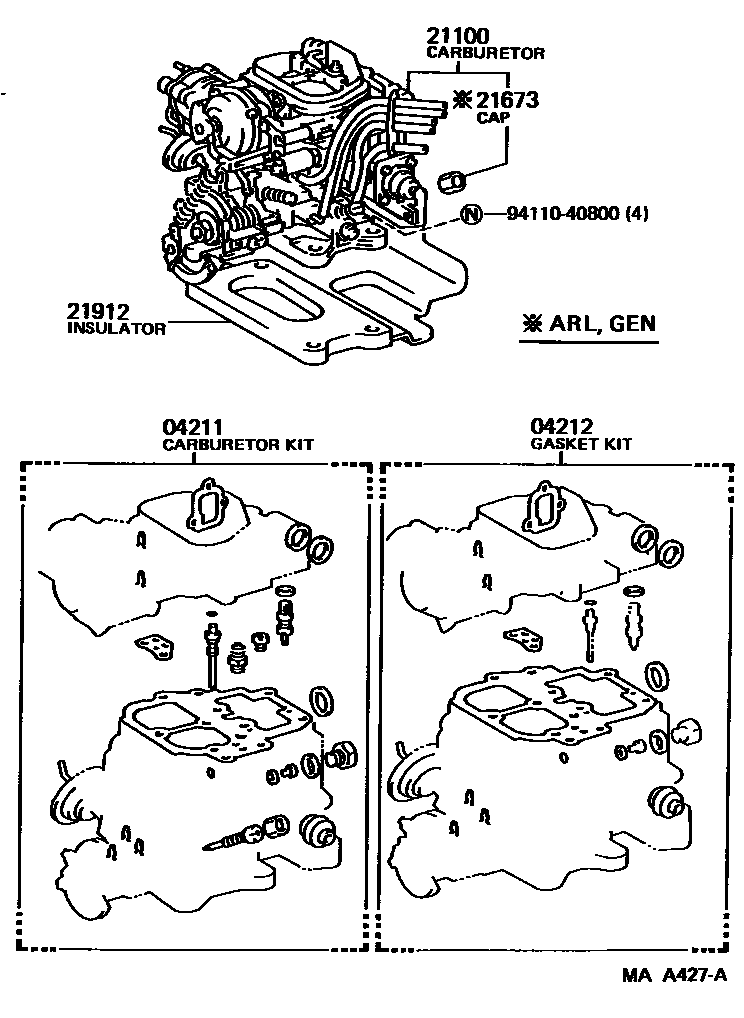

Parts diagram
04211CARBURETOR KIT
main04211-71050i198708-199001
sub04211-71051
main04211-71070i198708-199003
sub04211-71071
main04211-71071i199003-199208
sub04211-71072
main04211-71072i199208-199505
main04211-72260i199001-199003
sub04211-72261
main04211-72261i199003-199505
04212GASKET KIT, CARBURETOR
main04212-72010i198708-199003
sub04212-72011
main04212-72011i199003-199208
sub04212-72012
main04212-72012i199208-199505
main04212-75010i199001-199003
sub04212-75011
main04212-75011i199003-199505
21100CARBURETOR ASSY
main21100-71101i198708-198808
sub21100-71102
main21100-71102i198808-199001
main21100-71121i198708-199505
main21100-72350i199001-199505
21673CAP, IDLE LIMIT
main21673-13280i198708-199505
main21673-31330i199001-199505
21912INSULATOR, CARBURETOR HEAT
main21912-72010i198708-198912
sub21912-72011
main21912-72011i198912-199505
9411040800
main94110-40800

6 parts on this diagram · 1 diagram in section
