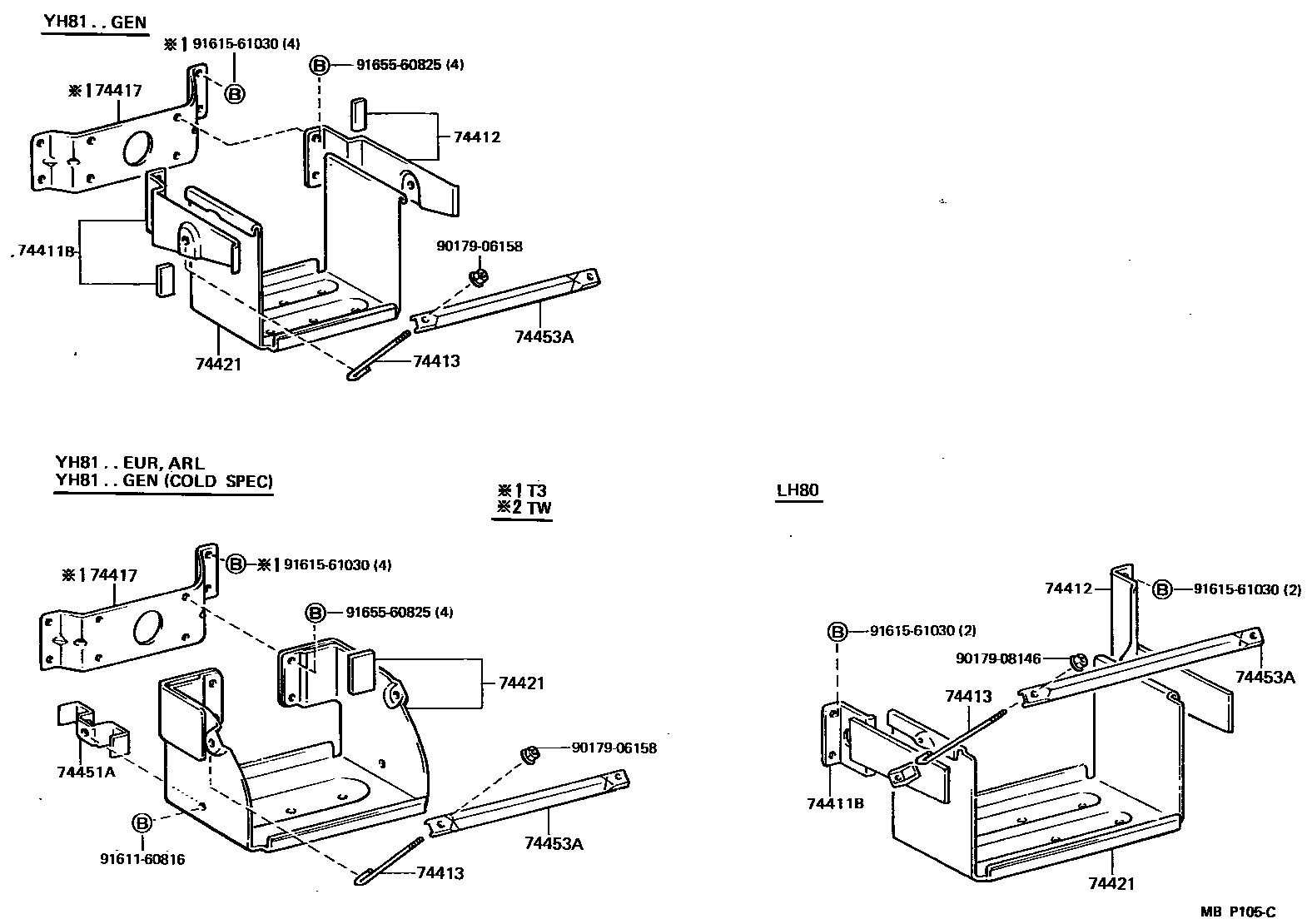

Toyota DYNA100 — BATTERY CARRIER

0001 1 0002 1

74411BBRACKET, BATTERY, FRONT

main74401-26040iLH80..T3198708-199505

main74401-26050iLH80..T3..EUR198708-198808

W(130E41L BATTERY)

main74401-26060iLH80..TW198708-199003

main74401-26070iLH80..TW198708-198808

W(130E41L BATTERY)

main74401-26080iLH80..TW199003-199505

main74411-25011iYH81..GEN198708-199505

74412BRACKET, BATTERY, REAR

main74402-26040iLH80198708-199505

main74402-26050iLH80..EUR198708-198808

W(130E41L BATTERY)

main74402-26060iLH80..TW199003-199505

main74412-25011iYH81..GEN198708-199505

74413BOLT, BATTERY CLAMP

main74451-25020iYH81198708-199505

main74451-36070iLH80198708-199505

74417BRACKET, BATTERY CARRIER

main74417-26050iYH81..T3198708-199505

main74417-26090iLH80..T3..EUR..IV199410-199505

W(80D26R 2PIECE PARALLEL BATTERY)

main74417-26090iLH80..T3..EUR198808-199410

main74417-26100iLH80..TW..CBU199410-199505

W(80D26R 2PIECE PARALLEL BATTERY)

sub74417-26101

main74417-26100iLH80,YH81..TW198808-199410

sub74417-26101

74421HANGER, BATTERY

main74421-25020iYH81..ARL,EUR198708-198710

W(50D20R BATTERY)

sub74421-26020

main74421-26010iYH81..GEN198708-199505

main74421-26020iYH81..ARL,EUR198710-199505

W(50D20R BATTERY)

main74421-36041iLH80..EUR198708-198808

W(130E41L BATTERY)

main74421-36091iLH80198708-199505

74451APLATE, BATTERY SET

main74451-25050iYH81198708-198910

main74451-25060iYH81..EUR198708-198910

W(55D23R BATTERY)

74453ABAR, BATTERY SET PLATE

main74453-25080iYH81..GEN198708-199505

main74453-25090iYH81..GEN198708-199505

W(50D20R BATTERY)

main74453-25100iLH80198708-199505

main74453-36060iLH80..EUR198708-198808

W(130E41L BATTERY)

main74453-36070iLH80..EUR198808-199505

W(80D26R 2PIECE PARALLEL BATTERY)

sub74453-37130

9017906158

main90179-06158

9017908146

main90179-08146

9161160816

main91611-60816

9161561030

main91615-61030

9165560825

main91655-60825

12 parts on this diagram · 2 diagrams in section
