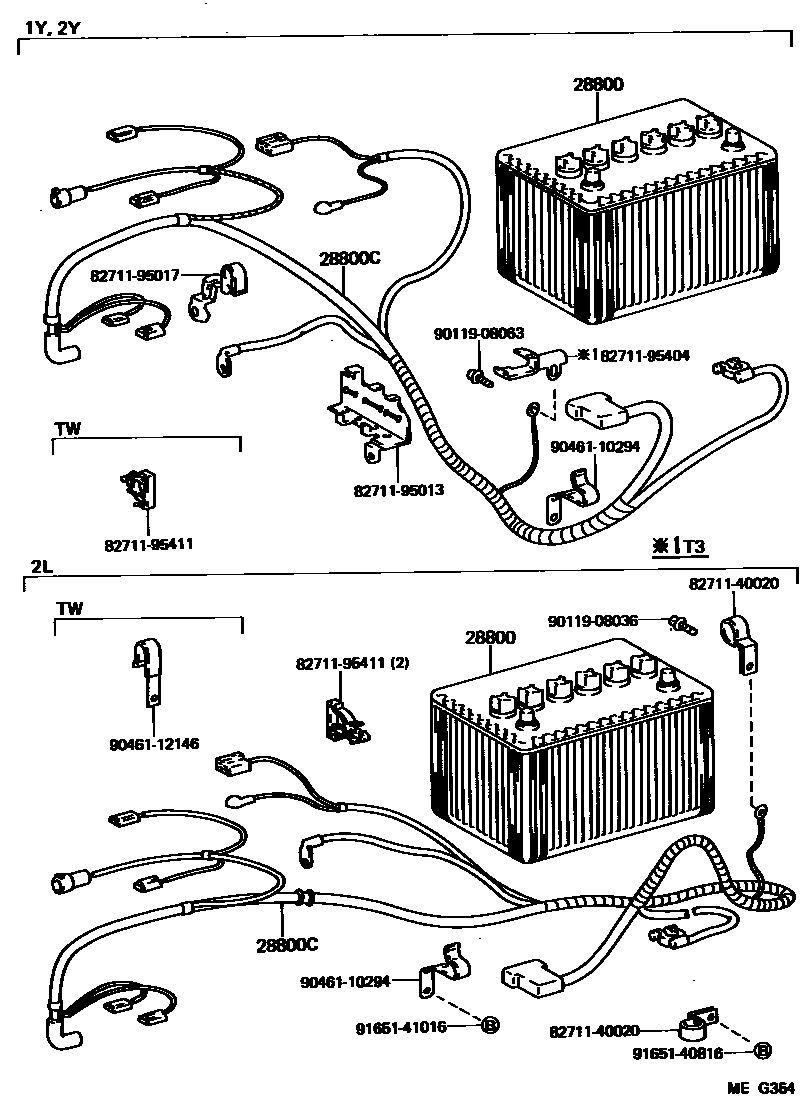

Toyota DYNA100 — BATTERY & BATTERY CABLE

28800BATTERY

main28800-12060i1Y,2Y..YH8#198508-198708

50D20R,50D20R

sub28800-14040

main28800-14010i2Y..YH81..EUR198508-198708

55D23R,50D23R

sub28800-15020

main28800-46012i2L..LH80..5F198508-198708

75D31R,75D31R(N70Z)

sub28800-46050

main28800-54030i2L..LH80..GEN;2L..LH80..4FC198508-198708

95D31L,95D31L(NX120-7L)

sub28800-64180

main28800-54050i2L..LH80..EUR198508-198708

130E41L,130E41L(NX200-10L)

main28800-72010i1Y..YH80198508-198708

34B19L(S),34B19L(NS40ZAL)

sub28800-72020

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-95A27i1Y..YH80..T3198508-198708

34B19L(NS40ZAL)

main82021-95A28i1Y,2Y..YH8#..T3198508-198708

50D20R

main82021-95A29i1Y..YH80..TW198508-198708

34B19L(NS40ZAL)

main82021-95A30i1Y,2Y..YH8#..TW198508-198708

50D20R

main82021-95A31i2Y..YH81..T3..EUR198508-198708

55D23R

main82021-95A32i2Y..YH81..TW..EUR198508-198708

55D23R

main82021-95A34i2L..LH80..T3..EUR198508-198708

130E41L(NX200-10L)

main82021-95A37i2L..LH80..TW..EUR198508-198708

130E41L(NX200-10L)

main82021-95A38i2L..LH80..5F..T3198508-198708

75D31R(N70Z)

main82021-95A39i2L..LH80..GEN..IV198508-198708

95D31L(NX120-7L)

main82021-95A40i2L..LH80..TW198508-198708

75D31R(N70Z)

main82021-95A41i2L..LH80..TW..GEN198508-198708

95D31L(NX120-7L)

main82021-95A42i2L..LH80..4FC198508-198708

95D31L(NX120-7L)

8271140020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-40020

8271195013WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95013

8271195017WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95017

8271195404WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95404

8271195411WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95411

9011908036

main90119-08036

9011908063

main90119-08063

9046110294

main90461-10294

9046112146

main90461-12146

9165140816

main91651-40816

9165141016

main91651-41016

13 parts on this diagram · 1 diagram in section
