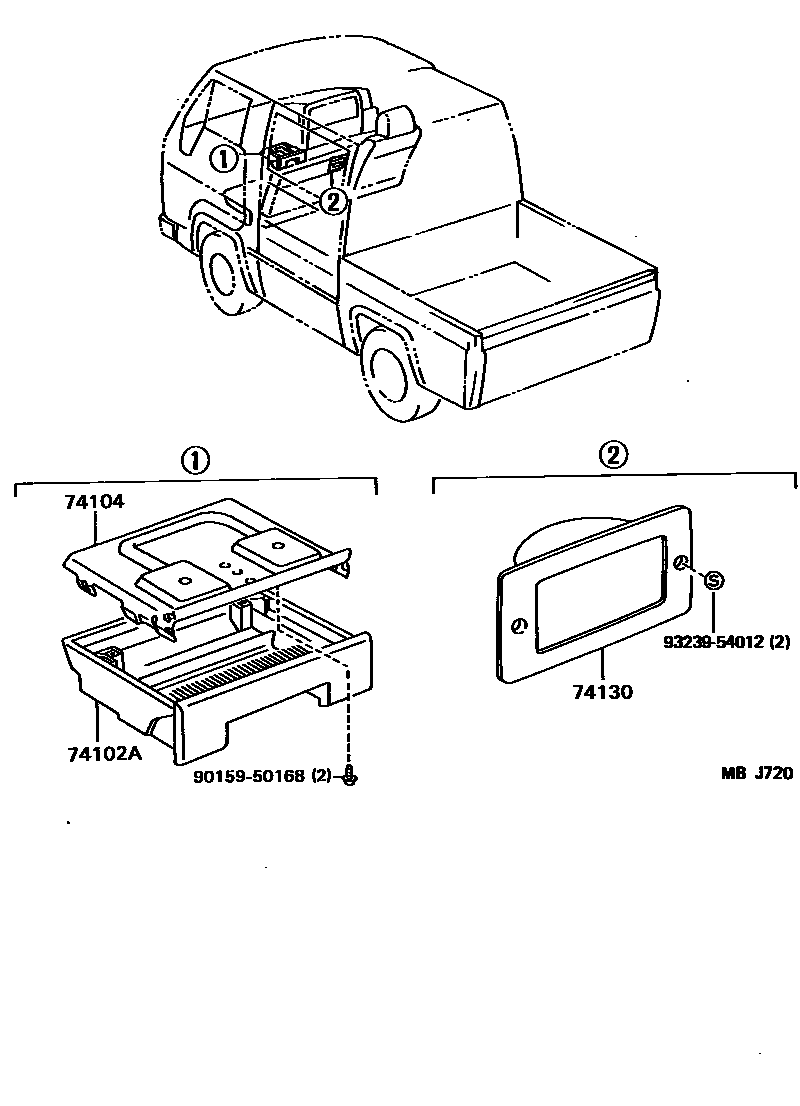

Toyota DYNA100 — ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-10020-01iLH80,YH8#198508-198704

BLACK,BLACK

sub74102-10020

sub74102-95409

main74102-95409-01iLH80,YH8#198704-198708

BLACK,BLACK

sub74102-95409

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-95406iLH80,YH8#198508-198708

74130RECEPTACLE ASSY, REAR ASH

main74106-87201-01iLH80,YH8#..TW198508-198708

BLACK,BLACK

sub74106-87201

9015950168

main90159-50168

9323954012

main93239-54012

5 parts on this diagram · 1 diagram in section
