Toyota DYNA100 — ARMREST & VISOR

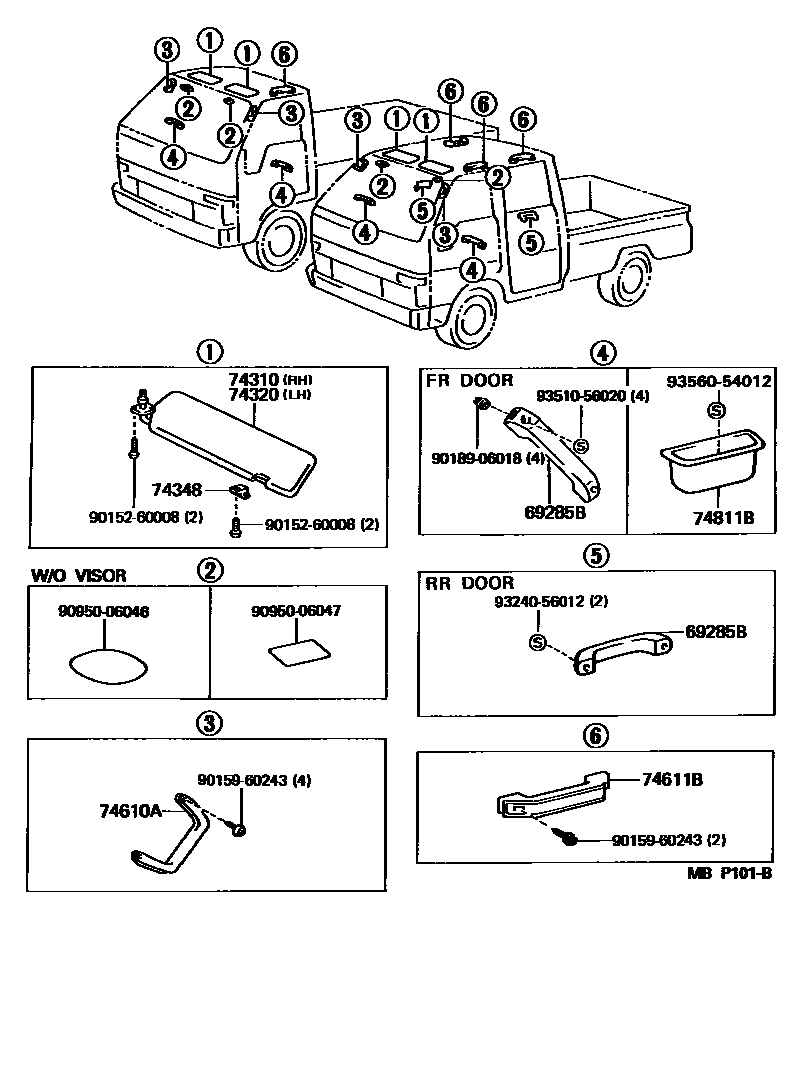

Parts diagram
69285BHANDLE, PULL
main69285-95404-01×2i198908-199109
BLACK,TRIM4#
main69285-95700-B0×2i199109-199309
GRAY,TRIM1#
74310VISOR ASSY, RH
main74310-95026-03i199109-199309
W(ROOF VENTILATOR),GRAY,TRIM1#
main74310-95026-06i198708-199109
W(ROOF VENTILATOR),DARK BROWN,TRIM4#
main74310-95430-03i199109-199309
W(ROOF VENTILATOR),GRAY,TRIM1#
main74310-95430-06i198708-199109
W(ROOF VENTILATOR),BROWN,TRIM4#
main74310-95436-03i199109-199505
GRAY,TRIM1#
main74310-95436-06i198708-199109
BROWN,TRIM4#
main74310-95437-03i199109-199505
W(ROOF VENTILATOR),GRAY,TRIM1#
main74310-95437-06i198708-199109
W(ROOF VENTILATOR),BROWN,TRIM4#
main74310-95439-03i199309-199505
GRAY,TRIM1#
main74310-95439-06i198708-199109
BROWN,TRIM4#
main74310-95A25-03i199109-199309
GRAY,TRIM1#
main74310-95A25-06i198708-199109
BROWN,TRIM4#
74320VISOR ASSY, LH
main74320-95015-03i199109-199505
W(ROOF VENTILATOR),GRAY,TRIM1#
main74320-95015-06i198708-199109
W(ROOF VENTILATOR),DARK BROWN,TRIM4#
main74320-95418-03i199109-199309
W(ROOF VENTILATOR),GRAY,TRIM1#
main74320-95418-06i198708-199109
W(ROOF VENTILATOR),BROWN,TRIM4#
main74320-95422-03i199109-199505
GRAY,TRIM1#
main74320-95422-06i198708-199109
BROWN,TRIM4#
main74320-95423-03i199109-199505
W(ROOF VENTILATOR),GRAY,TRIM1#
main74320-95423-06i198708-199109
W(ROOF VENTILATOR),BROWN,TRIM4#
main74320-95425-03i199109-199309
GRAY,TRIM1#
main74320-95425-06i198708-199109
BROWN,TRIM4#
main74320-95A23-03i199109-199505
GRAY,TRIM1#
main74320-95A23-06i198708-199109
BROWN,TRIM4#
74348HOLDER, VISOR
main74348-12010-23×2i199109-199309
GRAY,TRIM1#
main74348-12010-25×2i198708-199109
BEIGE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74610-95403-06×2i198708-199109
BROWN,TRIM4#
main74620-87001-B0×2i199109-199505
GRAY,TRIM1#
74611BGRIP, ASSIST
main74611-92601-06i198708-199109
BROWN,TRIM4#
main74611-92601-B0i199109-199505
GRAY,TRIM1#
74811BHANDLE, DOOR PULL
main74811-87001-16×2i198708-198808
BROWN,TRIM4#
main74811-87001-B0×2i199109-199505
GRAY,TRIM1#
9015260008
main90152-60008
9015960243
main90159-60243
9018906018
main90189-06018
9095006046
main90950-06046
9095006047
main90950-06047
9324056012
main93240-56012
9351056020
main93510-56020
9356054012
main93560-54012

15 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota DYNA100

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota DYNA100. Key components include: HANDLE, PULL, VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR, GRIP SUB-ASSY, ASSIST.
