Toyota DYNA100 — ALTERNATOR

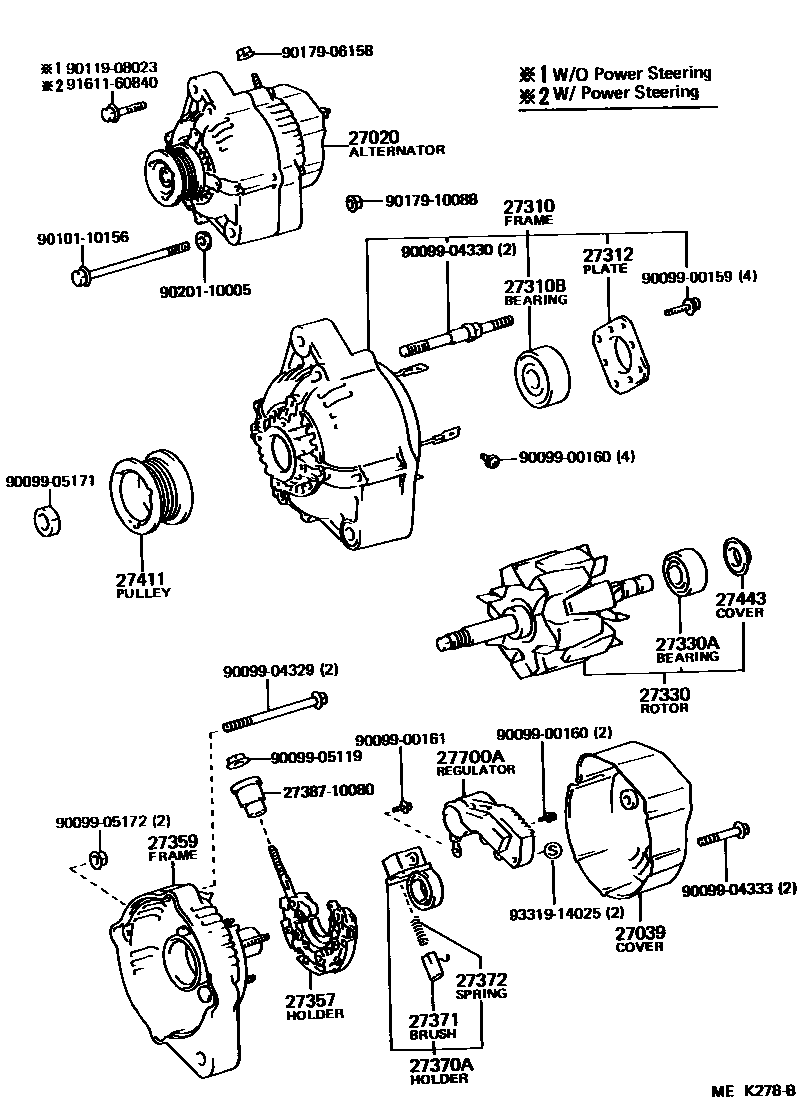

Parts diagram

27020ALTERNATOR ASSY

main27020-54200i198708-198808

12V 45A

main27020-54380i198808-199101

12V 45A

main27020-54381i199101-199106

12V 45A

main27020-54382i199106-199202

12V 45A

main27020-54383i199202-199505

12V 45A

main27060-72111i198708-199309

12V 45A

main27060-72330i199309-199505

12V 45A

27039COVER, ALTERNATOR REAR END

main27039-72150i198708-199505

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54110i198708-199505

main27310-72150i198708-198910

main27310-72151i198910-199505

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i198708-199505

main90099-10170i198708-198910

main90099-10198i198910-199505

27312PLATE, RETAINER

main27312-57060i198708-199505

main27312-72120i198708-199505

27330ROTOR ASSY, ALTERNATOR

main27330-54200i198708-198808

main27330-54201i199101-199505

main27330-72150i198708-199505

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10154i198708-199505

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-54190i198708-199505

main27357-72150i198708-199505

27359FRAME, ALTERNATOR RECTIFIER END

main27359-72150i198708-199505

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-54250i198708-199505

main27370-63021i198708-199505

27371BRUSH, ALTERNATOR

main27371-56070×2i198708-199505

main27371-63020×2i198708-199505

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i198708-199505

main27372-63020×2i198708-199011

27411PULLEY, ALTERNATOR

main27411-54170i198708-198808

main27411-54350i198808-199505

main27411-72120i198708-199505

27443COVER, ALTERNATOR BEARING

main27443-63020i198708-199505

27700AREGULATOR ASSY, GENERATOR

main27700-10050i198708-198812

main27700-10080i198812-199309

main27700-44020i198708-198907

main27700-44021i198907-199505

main27700-66030i199309-199505

2738710080INSULATOR, TERMINAL

main27387-10080

9009900159

main90099-00159

9009900160

main90099-00160

9009900161

main90099-00161

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110156

main90101-10156

9011908023

main90119-08023

9017906158

main90179-06158

9017910088

main90179-10088

9020110005

main90201-10005

9161160840

main91611-60840

9331914025

main93319-14025

32 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota DYNA100

This section contains 60 genuine Toyota parts for the ALTERNATOR system of the Toyota DYNA100. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME), PLATE, RETAINER.
