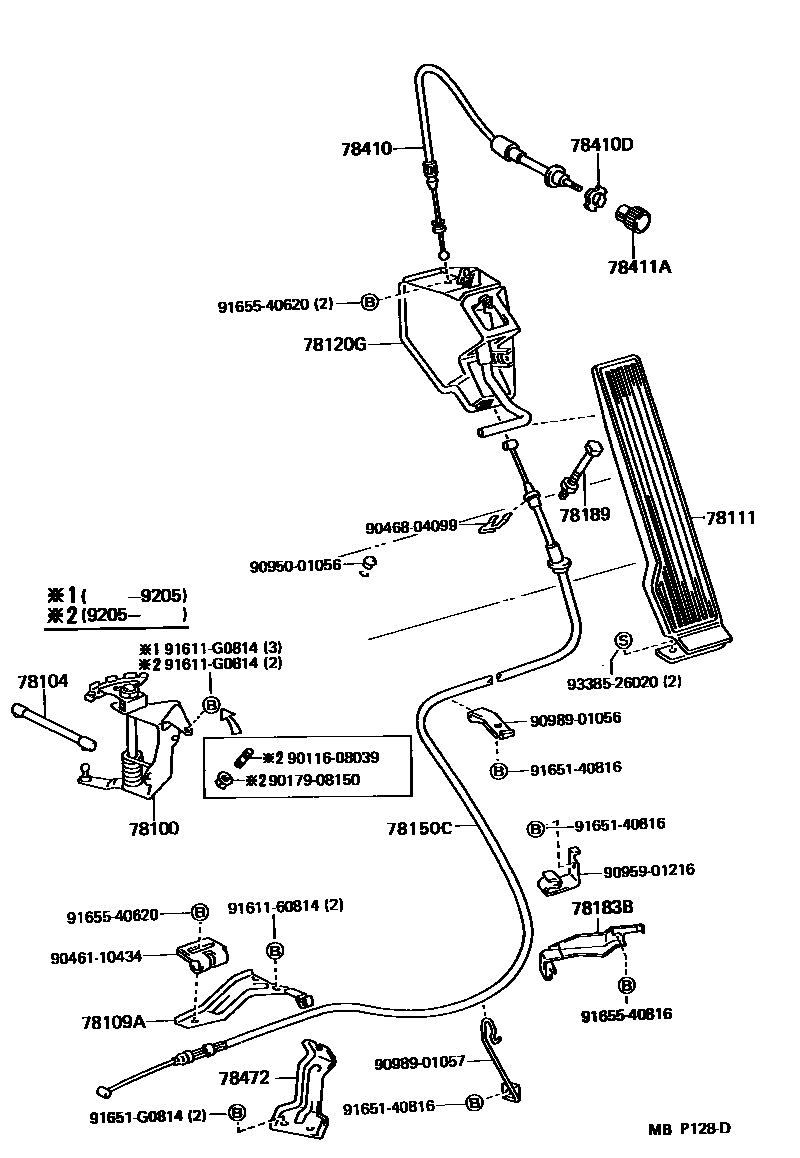

Toyota DYNA100 — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78100LINK ASSY, ACCELERATOR

main78100-25010iLH80198808-198905

main78100-25011iLH80198905-199505

main78100-95012iLH80..EUR198708-198808

main78100-95A01iLH80..4FC198708-198808

main78100-95J06iLH80..RHD..5F198708-198808

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140iLH80198808-199505

main78104-30120iLH80198708-198808

78109ABRACKET SUB-ASSY, ACCELERATOR WIRE CLAMP

main78109-95J00iLH80..RHD198708-198808

78111PEDAL, ACCELERATOR

main78110-95014iLH80,YH81..LHD198708-199505

main78110-95410iLH80,YH81..RHD198708-199505

78120GROD ASSY, ACCELERATOR PEDAL

main78202-95010iLH80,YH81..RHD198708-199505

main78202-95011iLH80,YH81..LHD198708-199505

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-25020iYH81..RHD199109-199505

main78150-25030iYH81..LHD199109-199505

sub78150-25031

main78150-25040iLH80..RHD199109-199505

main78150-25050iLH80..EUR199109-199505

sub78150-25051

main78150-95055iYH81..RHD198708-199109

sub78150-25020

main78150-95056iLH80..RHD198708-198808

main78150-95058iYH81..LHD198708-199109

sub78150-25030

main78150-95059iLH80..EUR198708-198808

main78150-95060iLH80..RHD198808-199109

sub78150-25040

main78150-95061iLH80..EUR198808-199109

sub78150-25050

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-95011iLH80198808-199505

main78183-95A10iYH81..EUR199001-199505

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95402iLH80,YH81..LHD198708-199505

main78208-95404iLH80,YH81..RHD198708-199505

78410CABLE ASSY, THROTTLE CONTROL

main78404-95011iLH80..RHD198708-199505

sub78404-37020

main78404-95012iLH80..EUR198708-199505

main78404-95403iLH80..TW..CBU;LH80..T3..EUR..IV198708-199505

DENMARK SPEC

78410DNUT, THROTTLE

main78314-95010iLH80198708-199505

78411AKNOB, THROTTLE CONTROL CABLE

main78411-22010iLH80198708-199505

main78411-95J00iLH80..TW..CBU;LH80..T3..EUR..IV198708-199505

DENMARK SPEC

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-25010iLH80198808-199505

sub78472-25011

9011608039

main90116-08039

9017908150

main90179-08150

9046110434

main90461-10434

9046804099

main90468-04099

9095001056

main90950-01056

9095901216

main90959-01216

9098901056

main90989-01056

9098901057

main90989-01057

9161160814

main91611-60814

91611G0814

main91611-G0814

9165140816

main91651-40816

91651G0814

main91651-G0814

9165540620

main91655-40620

9165540816

main91655-40816

9338526020

main93385-26020

27 parts on this diagram · 4 diagrams in section
