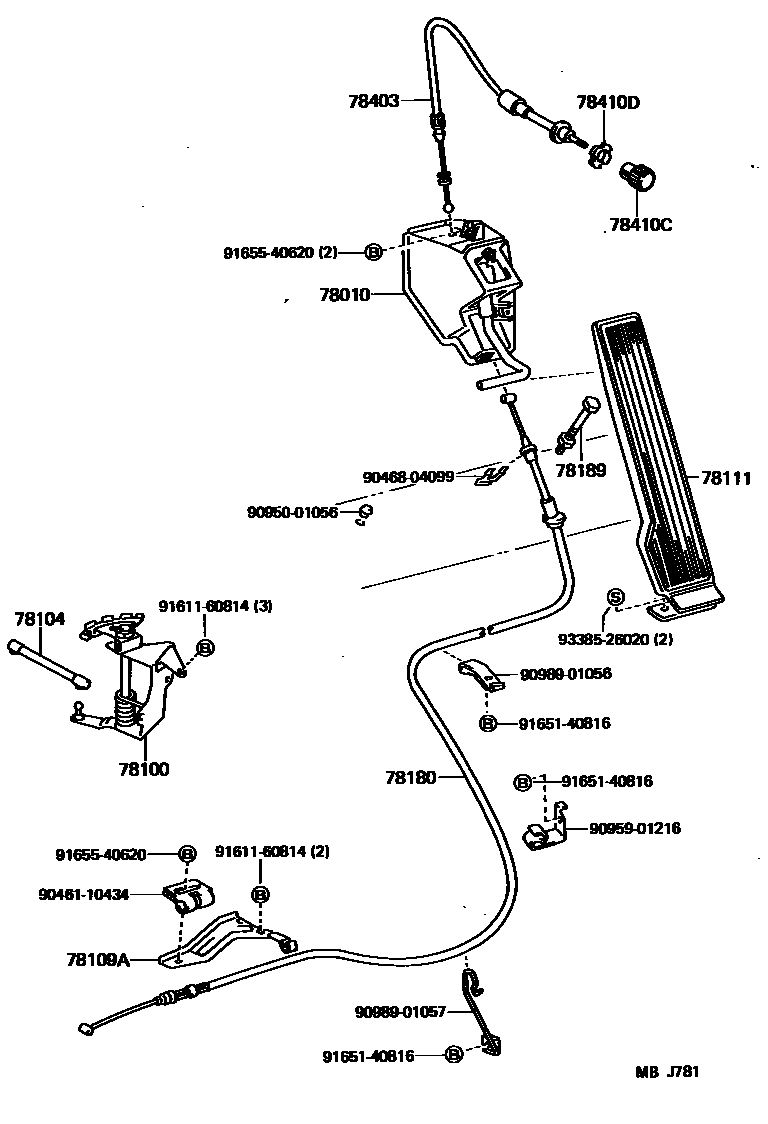

Toyota DYNA100 — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78010LINK, ACCELERATOR

main78202-95010iLH80,YH8#..RHD198508-198708

main78202-95011iLH80,YH8#..LHD198508-198708

78100LINK ASSY, ACCELERATOR

main78100-95012iLH80..LHD198508-198708

main78100-95A01iLH80..4FC198508-198708

main78100-95J06iLH80..RHD..5F198508-198708

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-30120iLH80198508-198708

78109ABRACKET SUB-ASSY, ACCELERATOR WIRE CLAMP

main78109-95J00iLH80..RHD198508-198708

78111PEDAL, ACCELERATOR

main78110-95014iLH80,YH8#..LHD198508-198708

main78110-95410iLH80,YH8#..RHD198508-198708

78180WIRE ASSY, ACCELERATOR

main78150-95055iYH8#..RHD198508-198708

sub78150-25020

main78150-95056iLH80..RHD198508-198708

main78150-95058iYH8#..LHD198508-198708

sub78150-25030

main78150-95059iLH80..LHD198508-198708

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95400iLH80,YH8#..RHD198508-198708

sub78208-95406

main78208-95402iLH80,YH8#..LHD198508-198708

78403CABLE SUB-ASSY, THROTTLE CONTROL

main78404-95011iLH80..RHD198508-198708

sub78404-37020

main78404-95012iLH80..LHD198508-198708

main78404-95403iLH80..TW..EUR;LH80..EUR..IV198508-198708

DANMARK SPEC

78410CKNOB, THROTTLE CABLE

main78411-22010iLH80198508-198708

main78411-95J00iLH80..TW..EUR;LH80..EUR..IV198508-198708

DANMARK SPEC

78410DNUT, THROTTLE

main78314-95010iLH80198508-198708

9046110434

main90461-10434

9046804099

main90468-04099

9095001056

main90950-01056

9095901216

main90959-01216

9098901056

main90989-01056

9098901057

main90989-01057

9161160814

main91611-60814

9165140816

main91651-40816

9165540620

main91655-40620

9338526020

main93385-26020

20 parts on this diagram · 4 diagrams in section
