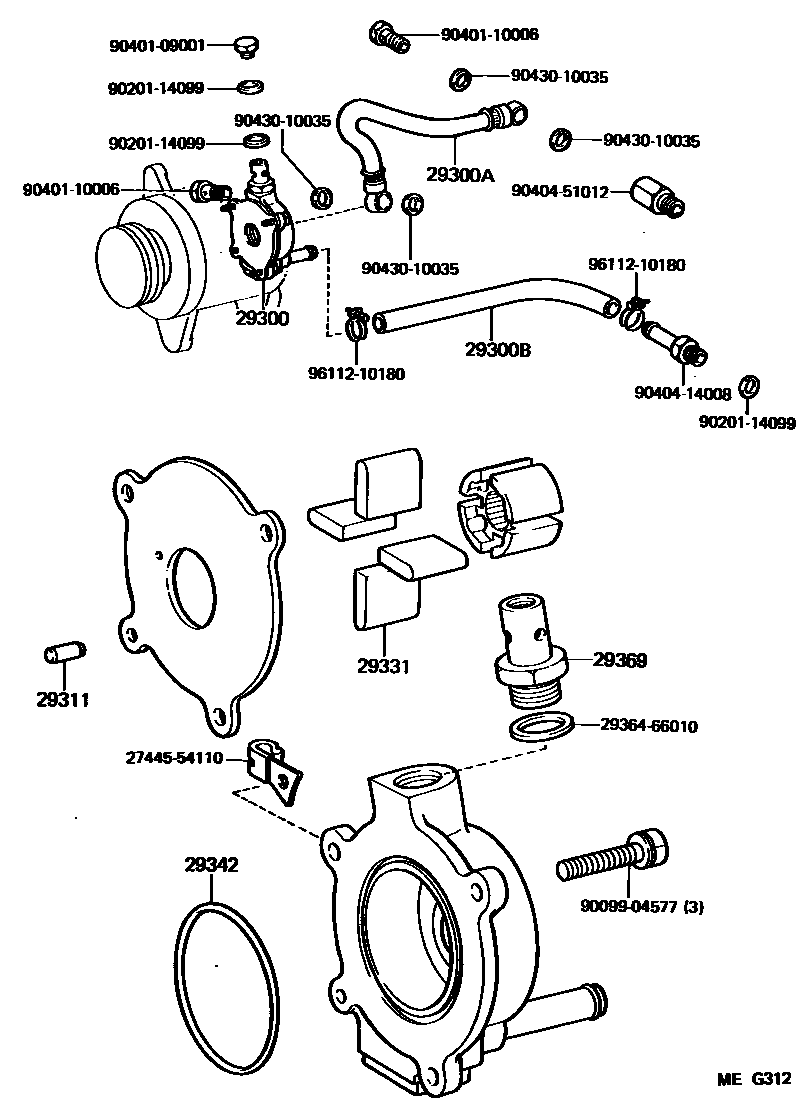

Toyota DYNA100 — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54050i2L..LH80198508-198708

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LH80198508-198708

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02076i2L..LH80198508-198708

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L..LH80198508-198708

29331BLADE, VACUUM PUMP, A

main29331-56070i2L..LH80198508-198708

29342PACKING, VACUUM PUMP

main96740-02063i2L..LH80198508-198708

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L..LH80198508-198708

2744554110

main27445-54110

2936466010WASHER, VACUUM PUMP

main29364-66010

9009904577

main90099-04577

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040414008

main90404-14008

9040451012

main90404-51012

9043010035

main90430-10035

9611210180

main96112-10180

17 parts on this diagram · 1 diagram in section
