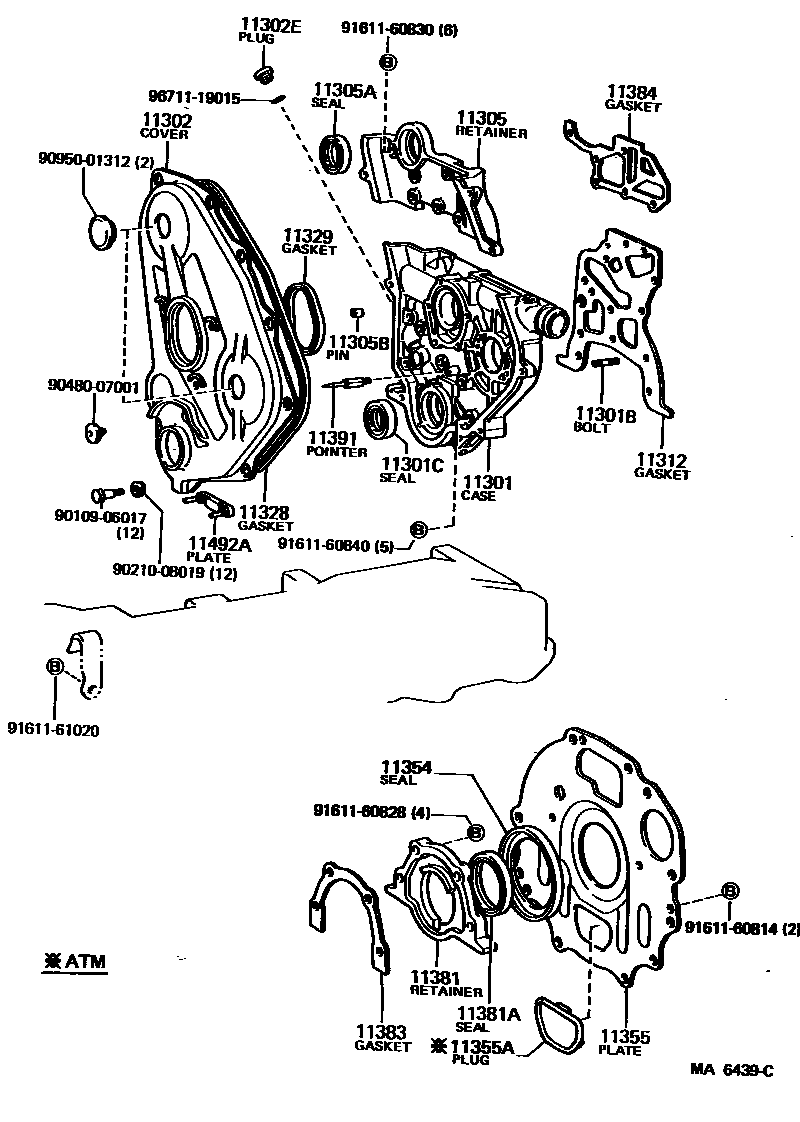

Toyota DYNA100 — TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-71010i1Y,2Y..YH8#198508-198708

main11311-54022i2L..LH80198508-198708

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828i2L..LH80198508-198708

L=28,S=16&16

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42012i2L..LH80198508-198708

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-54014i2L..LH80198508-198708

main11321-71010i1Y,2Y..YH8#198508-198708

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i2L..LH80198508-198708

11305RETAINER, OIL SEAL, NO.2

main11382-54010i2L..LH80198508-198708

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-42003i2L..LH80198508-198708

sub90311-42026

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main16159-71010i1Y,2Y..YH8#198508-198708

main90253-11001i2L..LH80198508-198708

11312GASKET, FRONT END PLATE

main11312-54013i2L..LH80198508-198708

sub11312-54030

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54010i2L..LH80198508-198708

main11328-71010i1Y,2Y..YH8#198508-198708

sub11328-71011

11329GASKET, TIMING GEAR REAR COVER

main11329-54011i2L..LH80198508-198708

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L..LH80198508-198708

main11354-71010i1Y,2Y..YH8#198508-198708

11355PLATE, REAR END

main11355-54030i2L..LH80..5F198508-198708

main11355-54040i2L..LH80..4FC198508-198708

main11355-71010i1Y,2Y..YH8#198508-198708

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i2L..LH80..4FC198508-198708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54010i2L..LH80198508-198708

main11381-71010i1Y,2Y..YH8#198508-198708

11381ASEAL, ENGINE REAR OIL

main90311-80003i1Y,2Y..YH8#198508-198708

sub90311-80009

main90311-85003i2L..LH80198508-198608

HTC 85 105 10

sub90311-85006

main90311-85004i2L..LH80198608-198708

sub90311-85006

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i1Y,2Y..YH8#198508-198708

main11383-54010i2L..LH80198508-198708

sub11383-54020

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010i2L..LH80198508-198708

sub11384-54011

11391POINTER, TIMING

main11391-54010i2L..LH80198508-198708

11492APLATE, WATER SEAL

main11492-54010i2L..LH80198508-198708

9010906017

main90109-06017

9021008019

main90210-08019

9048007001

main90480-07001

9095001312

main90950-01312

9161160814

main91611-60814

9161160828

main91611-60828

9161160830

main91611-60830

9161160840

main91611-60840

9161161020

main91611-61020

9671119015

main96711-19015

30 parts on this diagram · 2 diagrams in section
