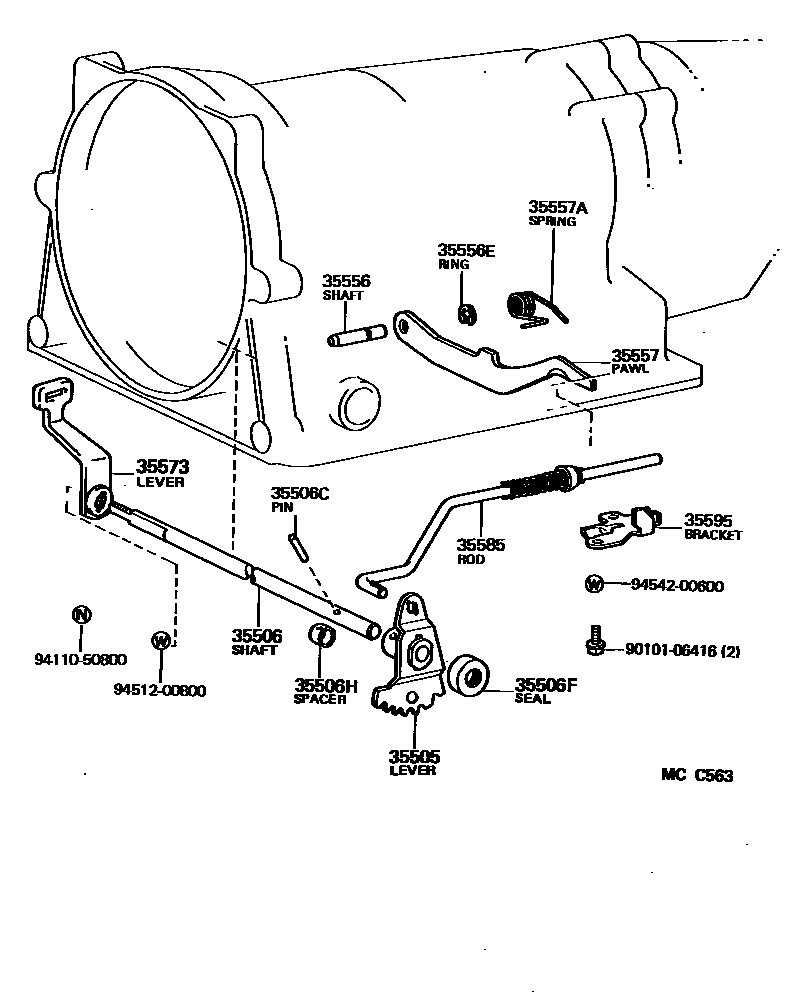

Toyota DYNA100 — THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22020iLH80..4FC198508-198708

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-30060iLH80..4FC198508-198708

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iLH80..4FC198508-198708

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001iLH80..4FC198508-198708

sub90311-11003

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iLH80..4FC198508-198708

sub90560-20025

35556SHAFT, PARKING LOCK PAWL

main35556-26010iLH80..4FC198508-198708

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iLH80..4FC198508-198708

35557PAWL, PARKING LOCK

main35557-26010iLH80..4FC198508-198708

sub35557-26020

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iLH80..4FC198508-198708

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-26010iLH80..4FC198508-198708

35585ROD, PARKING LOCK

main35501-26020iLH80..4FC198508-198708

35595BRACKET, PARKING LOCK PAWL

main35595-40010iLH80..4FC198508-198708

9010106416

main90101-06416

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 2 diagrams in section
