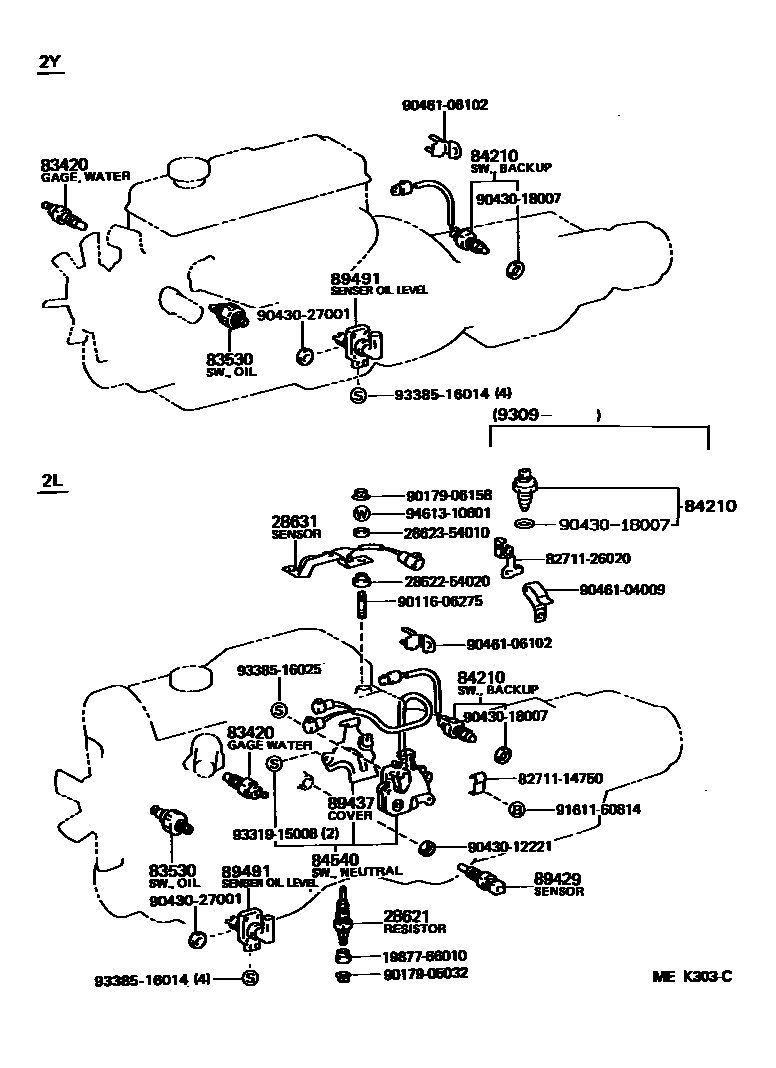

Toyota DYNA100 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28621RESISTOR, GLOW PLUG

main28621-54031i2L..LH80..GEN..CBU198708-198808

sub28621-64011

main28621-54080i2L..LH80..EUR198808-199505

28631SENSOR, GLOW PLUG CURRENT

main28631-54040i2L..LH80..GEN..CBU198708-198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLH80,YH81199309-199505

NIPPONDENSO

main83420-20020iLH80,YH81198708-199301

main83420-20030iLH80,YH81199309-199505

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYH81198708-199309

sub83530-28030

main83530-14070iYH81199309-199505

sub83530-28010

main83530-30060iLH80198708-199505

sub83530-60030

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLH80,YH81199309-199505

sub84210-52050

main84210-60021iLH80,YH81..5F198708-199309

84540SWITCH ASSY, NEUTRAL START

main84540-26010iLH80..4FC198708-198808

main84540-26020iLH80..4FC198808-199203

89429SENSOR, OIL TEMPERATURE

main89422-20010iLH80..EUR198808-199505

main89422-30020iLH80..GEN..CBU198708-198808

sub89422-12010

89437COVER, SENSOR

main89437-26010iLH80..4FC198708-199203

89491SENSOR, ENGINE OIL LEVEL

main89491-26100iLH80198910-199505

main89491-27020iYH81198910-199505

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271126020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26020

9011606275

main90116-06275

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9046104009

main90461-04009

9046106102

main90461-06102

9161160814

main91611-60814

9331915008

main93319-15008

9338516014

main93385-16014

9338516025

main93385-16025

9461310601

main94613-10601

27 parts on this diagram · 4 diagrams in section
