Toyota DYNA100 — STANDARD TOOL

0001 1 0002 1

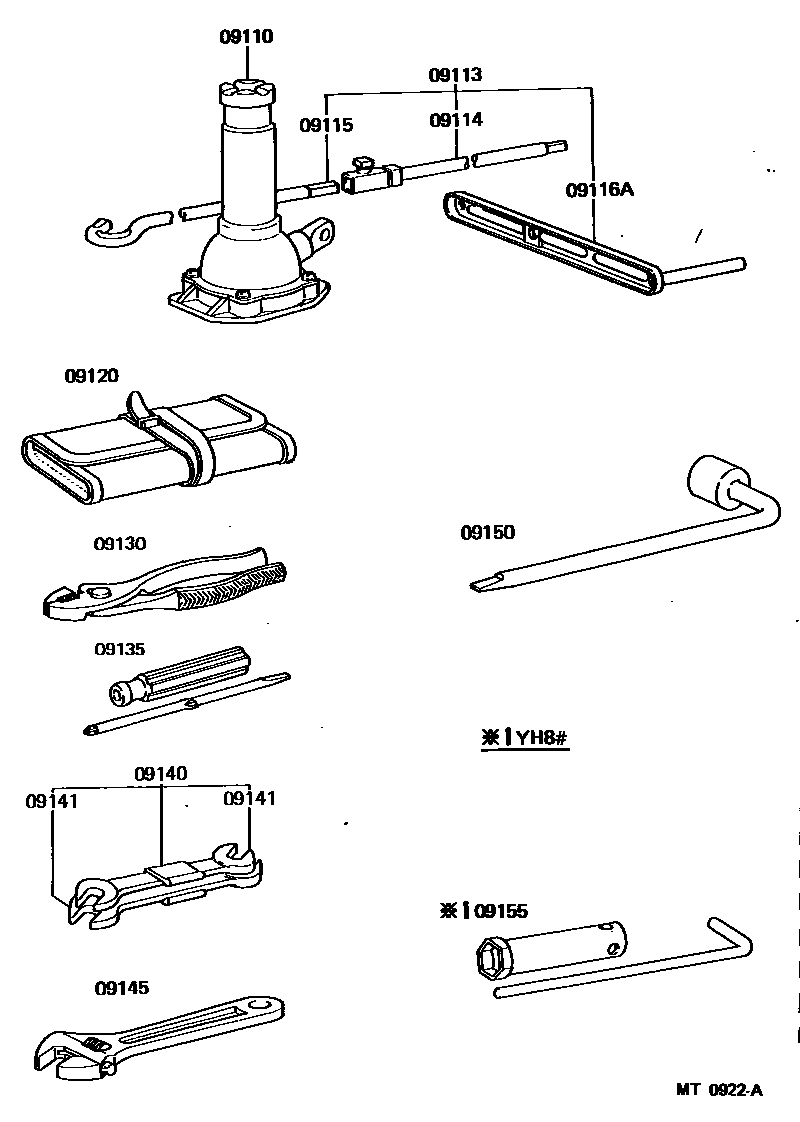

09110JACK ASSY

main09110-25070iLH80,YH81..ARL198601-198610

main09110-95A00iLH80,YH81..ARL198610-198708

main09111-25070iLH80,YH8#198508-198610

main09111-26060iLH80,YH8#..EUR,GEN198610-198708

sub09110-25090

09113HANDLE, JACK

main09113-25031iLH80,YH8#198508-198608

sub09113-25040

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-25020iLH80,YH8#198508-198708

09115ROD SUB-ASSY, JACK HANDLE

main09115-28020iLH80,YH8#198508-198708

09116ALEVER, JACK HANDLE

main09116-35041iLH80,YH8#198508-198708

09120BAG, TOOL

main09120-26021iLH80,YH8#198508-198708

sub09120-35170

09130PLIERS

main99913-11500iLH80,YH8#198508-198708

09135DRIVER, SCREW

main99915-10700iLH80,YH8#198508-198708

09140SPANNER SET

main09140-27010iLH80,YH8#198508-198608

09141SPANNER

main99914-10810iLH80,YH8#198608-198708

8 X 10,8X10

main99914-11012iLH80,YH8#198508-198608

10 X 12,10X12

main99914-11214iLH80,YH8#198608-198708

12 X 14,12X14

main99914-11417iLH80,YH8#198508-198608

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iLH80,YH8#198508-198605

sub99911-11200

main99911-11200iLH80,YH8#198605-198708

09150WRENCH, HUB NUT BOX

main09150-35020iLH80,YH8#198508-198708

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-41010iYH8#198508-198708

13 parts on this diagram · 2 diagrams in section
