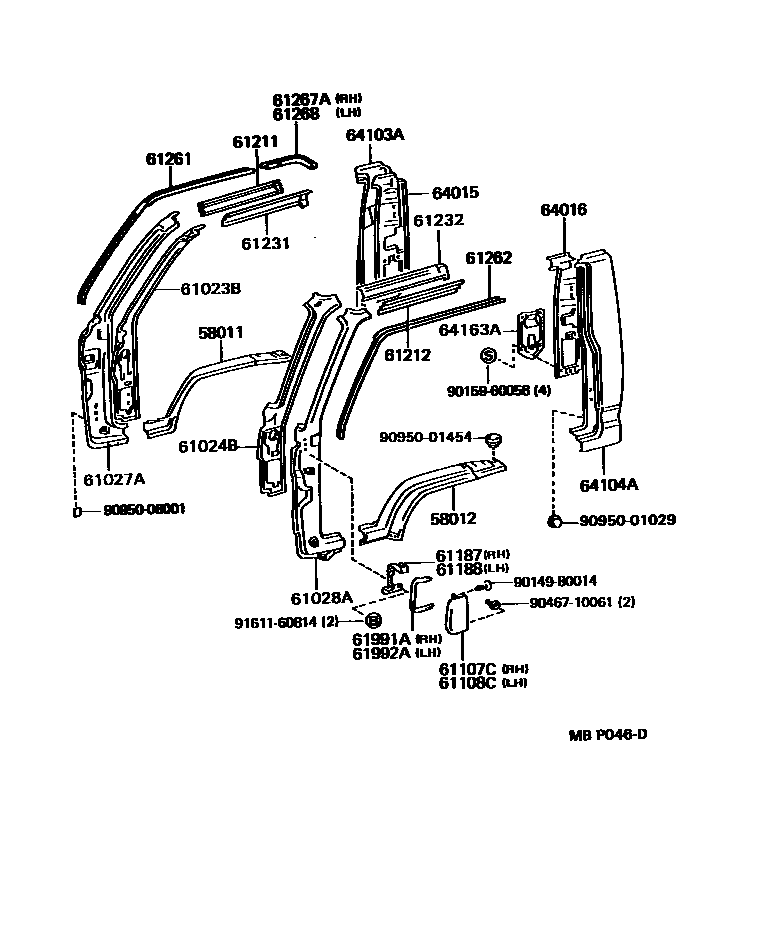

Toyota DYNA100 — SIDE MEMBER

0001 1 0002 1

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95011iLH80,YH81..T3198708-199505

sub58011-25010

main58011-95448iLH80,YH81..TW198708-199505

sub58011-37030

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95012iLH80,YH81..T3198708-199505

main58012-95445iLH80,YH81..TW198708-199505

sub58012-37040

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iLH80,YH81..RHD198708-199505

main61023-95401iLH80,YH81..LHD198708-199505

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iLH80,YH81..RHD198708-199505

sub61024-95403

main61024-95401iLH80,YH81..LHD198708-199505

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37010iLH80,YH81..ARL198911-199109

W(RADIO)

main61027-37020iLH80,YH81198911-199505

main61027-37030iLH80,YH81..ARL199109-199505

W(RADIO)

main61027-95400iLH80,YH81..ARL198708-198911

W(RADIO)

sub61027-37010

main61027-95401iLH80,YH81198708-198911

sub61027-37020

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37030iLH80,YH81..ARL,GEN199301-199505

main61028-37040iYH81..LHD..GEN199301-199505

W(RADIO)

main61028-95400iLH80,YH81..ARL,GEN198708-199301

sub61028-37030

main61028-95401iYH81..LHD..GEN198708-199301

W(RADIO)

sub61028-37040

main61028-95401iLH80,YH81..EUR198708-199301

sub61028-37040

61107CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH

main61107-95415iYH81..T3198708-199505

61108CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH

main61108-95416iLH80..ARL,EUR;YH81..LHD..TW;YH81..LHD..T3..GEN;YH81..T3..(ARL,EUR)198708-199505

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iLH80198708-199505

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iLH80..ARL,EUR;YH81..LHD..TW;YH81..LHD..T3..GEN;YH81..T3..(ARL,EUR)198708-199505

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iLH80,YH81..T3198708-199505

main61211-95404iLH80,YH81..TW198708-199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iLH80,YH81..T3198708-199505

main61212-95404iLH80,YH81..TW198708-199505

61231RAIL, ROOF SIDE, INNER RH

main61203-95400iLH80,YH81..LHD..TW198708-199505

main61203-95401iYH81..ARL..CBU198708-199203

main61231-95405iLH80,YH81..RHD..T3198708-199505

main61231-95406iLH80,YH81..LHD..T3198708-199505

61232RAIL, ROOF SIDE, INNER LH

main61204-95401iLH80,YH81..LHD..TW198708-199505

main61204-95402iYH81..ARL..CBU198708-199203

main61232-95405iLH80,YH81..LHD..T3198708-199505

sub61232-95406

main61232-95406iLH80,YH81..RHD..T3198708-199505

61261CHANNEL, ROOF DRIP, RH

main61261-95407iLH80,YH81198708-199505

61262CHANNEL, ROOF DRIP, LH

main61262-95407iLH80,YH81198708-199505

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-95400iLH80,YH81..T3198808-199505

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iLH80,YH81..T3198808-199505

61991APROTECTOR, FRONT PILLAR DOOR HINGE COVER, RH

main61991-37010iLH80;YH81..RHD;YH81..EUR199203-199505

main61991-95400iYH81..T3198708-199203

sub61991-37010

61992APROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH

main61992-37010iYH81..LHD..GEN;LH80,YH81..ARL,EUR199203-199505

main61992-95400iLH80..ARL,EUR;YH81..LHD..TW;YH81..LHD..T3..GEN;YH81..T3..(ARL,EUR)198708-199203

sub61992-37010

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-95400iLH80,YH81..T3..GEN198708-199505

sub64015-95411

main64015-95401iLH80,YH81..T3..(ARL,EUR)198708-199505

IRELAND SPEC

sub64015-95411

main64015-95413iLH80,YH81..TW..(ARL,EUR)198708-199309

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-95400iLH80,YH81..T3..GEN198708-199505

sub64016-95404

main64016-95401iLH80,YH81..T3..(ARL,EUR)198708-199505

IRELAND SPEC

sub64016-95415

main64016-95417iLH80,YH81..TW..(ARL,EUR)198708-199309

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-37020iLH80..TW199309-199505

main64103-95401iLH80,YH81..T3..GEN198808-199505

sub64103-95403

main64103-95403iLH80,YH81..T3..(ARL,EUR)198808-199505

IRELAND SPEC

main64103-95406iLH80,YH81..T3..GEN198708-198808

sub64103-95401

sub61267-95400

main64103-95408iLH80..GEN..CBU198708-198808

IRELAND SPEC

sub64103-95403

sub61267-95400

main64103-95411iLH80,YH81..TW..(ARL,EUR)198708-199309

sub64103-37090

main64103-95412iYH81..TW..GEN198708-199203

sub64103-37080

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-37020iLH80..TW199309-199505

main64104-95401iLH80,YH81..T3..GEN198808-199505

sub64104-95403

main64104-95403iLH80,YH81..T3..(ARL,EUR)198808-199505

IRELAND SPEC

main64104-95407iLH80,YH81..T3..GEN198708-198808

sub64104-95401

sub61268-95400

main64104-95410iLH80,YH81..T3..(ARL,EUR)198708-198808

IRELAND SPEC

sub64104-95403

sub61268-95400

main64104-95413iLH80,YH81..TW..(ARL,EUR)198708-199309

sub64104-37090

main64104-95414iYH81..TW..GEN198708-199203

sub64104-37080

64163ACOVER, BACK CORNER, INNER

main64163-95403iLH80,YH81..EUR198709-198808

W/O(FRONT SEAT BELT)

main64163-95403iLH80,YH81..GEN198708-198808

main64163-95404iLH80..GEN..CBU198708-198808

IRELAND SPEC

main64163-95410-06iLH80,YH81..ARL,EUR198808-199109

IRELAND SPEC,BROWN,TRIM4#

sub64163-95901

sub64163-95410

main64163-95410-06iLH80,YH81..ARL,EUR198808-199109

BROWN,TRIM4#

sub64163-95901

sub64163-95410

main64163-95410-13iLH80,YH81..ARL,EUR199109-199505

GRAY,TRIM1#

sub64163-95901

sub64163-95410

main64163-95410-13iLH80,YH81..ARL,EUR199109-199505

IRELAND SPEC,GRAY,TRIM1#

sub64163-95901

sub64163-95410

main64163-95411-06iYH81..GEN198808-199109

BROWN,TRIM4#

sub64163-95902

main64163-95411-06iYH81..GEN198808-199109

W/O(FRONT SEAT BELT),BROWN,TRIM4#

sub64163-95902

main64163-95411-B0iYH81..GEN199109-199505

GRAY,TRIM1#

sub64163-95902

main64163-95411-B0iYH81..GEN199109-199505

W/O(FRONT SEAT BELT),GRAY,TRIM1#

sub64163-95902

9014980014

main90149-80014

9015960058

main90159-60058

9046710061

main90467-10061

9095001029

main90950-01029

9095001454

main90950-01454

9095006001

main90950-06001

9161160814

main91611-60814

32 parts on this diagram · 2 diagrams in section
