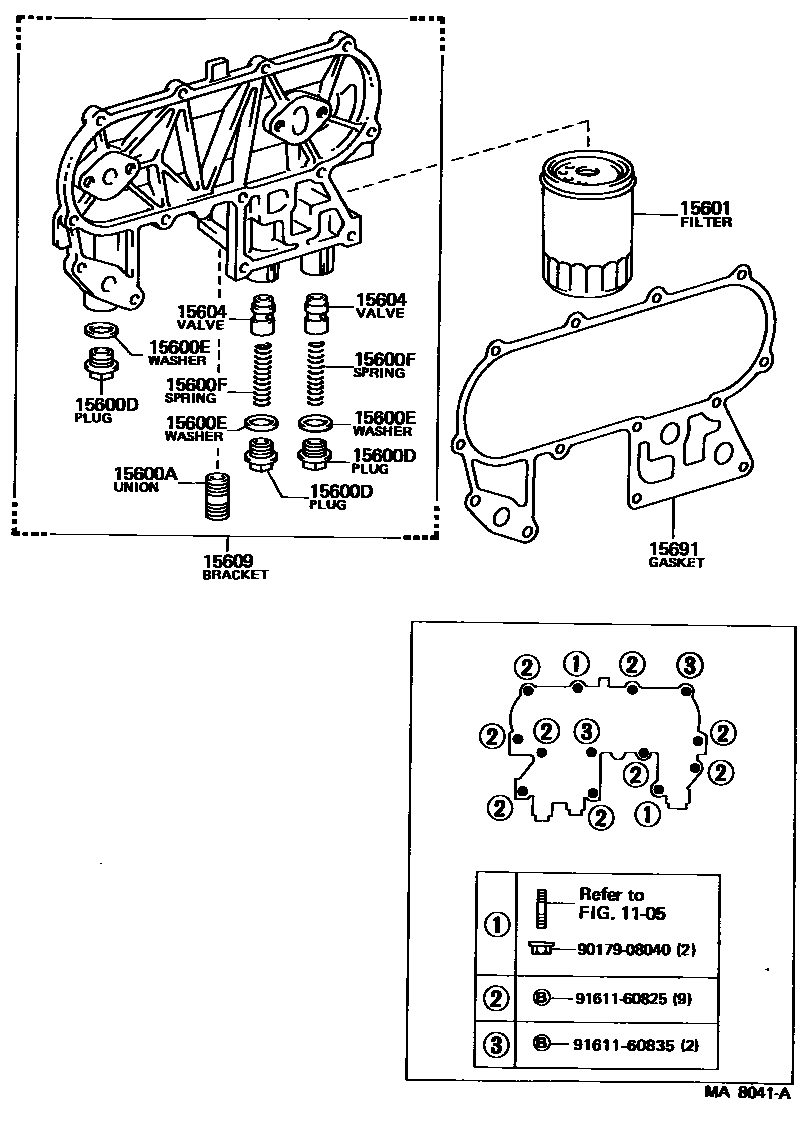

Toyota DYNA100 — OIL FILTER

0001 1 0002 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54010i2L..LH80198508-198708

15600DPLUG(FOR OIL FILTER)

main90341-18015i2L..LH80198508-198708

15600EWASHER(FOR OIL FILTER)

main90430-18011i2L..LH80198508-198708

sub90430-18001

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026i2L..LH80198508-198708

15601FILTER SUB-ASSY, OIL

main15600-41010i2L..LH80198508-198708

sub90915-40002

main15601-33021i1Y,2Y..YH8#198508-198708

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010i2L..LH80198508-198708

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54012i2L..LH80198508-198708

main15609-71010i1Y,2Y..YH8#198508-198608

main15609-71011i1Y,2Y..YH8#198608-198708

15691GASKET, OIL FILTER

main15691-54012i2L..LH80198508-198608

sub15692-54020

main15691-71010i1Y,2Y..YH8#198508-198708

sub15691-71011

main15692-54020i2L..LH80198608-198708

sub15692-54040

9017908040

main90179-08040

9161160825

main91611-60825

9161160835

main91611-60835

12 parts on this diagram · 2 diagrams in section
