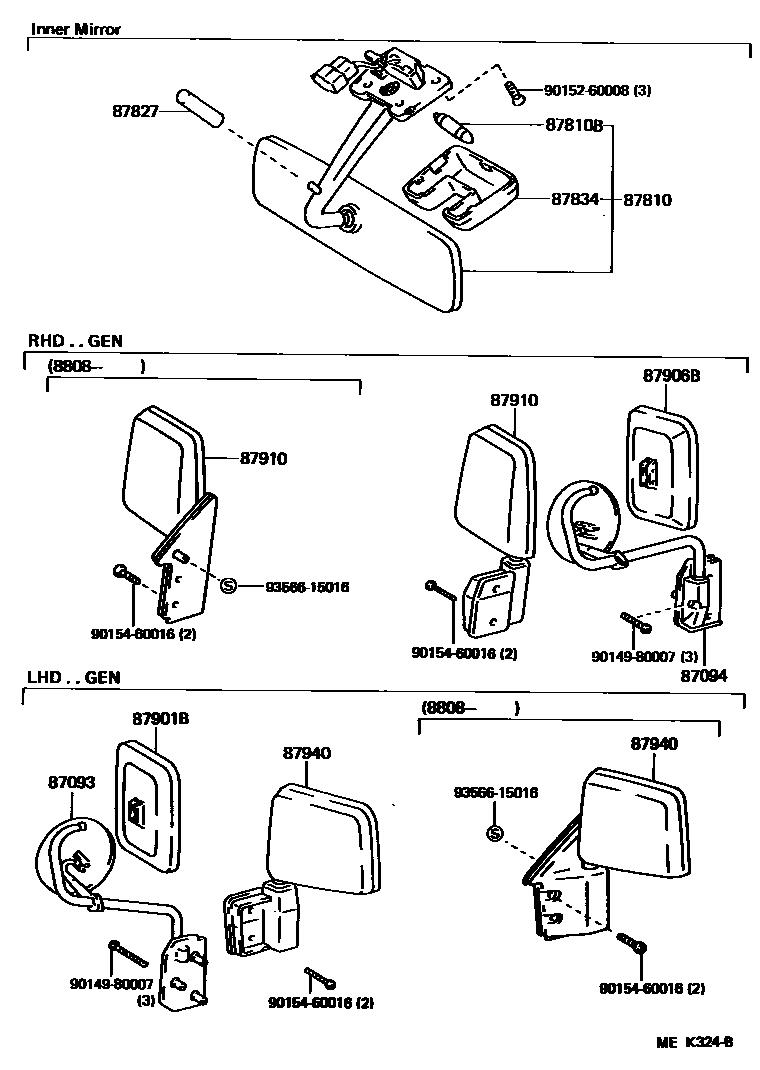

Toyota DYNA100 — MIRROR

0001 1 0002 1

87093STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH

main87093-26020iYH81..LHD..GEN199309-199505

main87093-37040iLH80..TW..CBU;LH80,YH81..T3..EUR..IV199309-199505

main87093-95401iLH80..TW..CBU;LH80,YH81..T3..EUR..IV198708-199309

sub87093-37040

main87093-95A00iYH81..LHD..GEN198708-199309

87094STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH

main87094-26030iLH80,YH81..RHD..GEN199309-199505

main87094-37130iLH80..TW..CBU;LH80,YH81..T3..EUR..IV199309-199505

main87094-95010iLH80,YH81..RHD..GEN198708-199309

main87094-95400iYH81..ARL..CBU198708-199203

main87094-95402iLH80..TW..CBU;LH80,YH81..T3..EUR..IV198708-199309

87810MIRROR ASSY, INNER REAR VIEW

main87810-95418-01iLH80,YH81..ARL,GEN199109-199505

BLACK,TRIM1#

sub87810-95418

main87810-95418-01iLH80,YH81..ARL,GEN198708-199109

BLACK,TRIM4#

sub87810-95418

main87810-95426iLH80,YH81..EUR198708-199505

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iLH80,YH81198708-199505

12V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010iLH80,YH81198708-199505

L=38.5

main87828-30010iLH80,YH81198708-199505

L=43.5

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iLH80,YH81198708-199505

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-95417iLH80..TW..CBU;LH80,YH81..T3..EUR..IV198708-199505

main87901-95A00iYH81..LHD..GEN198708-199505

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87901-37050iYH81..ARL..CBU199112-199203

main87901-95414iYH81..ARL..CBU198708-199112

sub87901-37050

main87901-95417iLH80..TW..CBU;LH80,YH81..T3..EUR..IV198708-199505

main87901-95A00iLH80,YH81..RHD..GEN198708-199505

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-95A10iLH80,YH81..RHD..GEN..CBU198910-199008

MALAYSIA SPEC OR W(DIVISION BAR)

main87910-95A10iLH80,YH81..RHD..GEN198708-198808

main87910-95A10iLH80,YH81..RHD..GEN198808-199505

W(DIVISION BAR)

main87910-95A12iYH81..ARL..CBU198708-198808

main87910-95A14iLH80,YH81..EUR198708-198808

main87910-95A15iLH80,YH81..RHD..GEN198808-199505

main87910-95A16iLH80,YH81..EUR198808-199505

main87910-95A17iYH81..ARL..CBU198808-199203

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-95407iYH81..ARL..CBU198808-199112

main87940-95A06iYH81..LHD..GEN198808-199505

W(DIVISION BAR)

main87940-95A06iYH81..LHD..GEN198708-198808

main87940-95A08iLH80,YH81..EUR198708-198808

main87940-95A09iLH80,YH81..EUR198808-199505

main87940-95A10iYH81..LHD..GEN198808-199505

9014980007

main90149-80007

9015260008

main90152-60008

9015460016

main90154-60016

9356615016

main93566-15016

14 parts on this diagram · 2 diagrams in section
