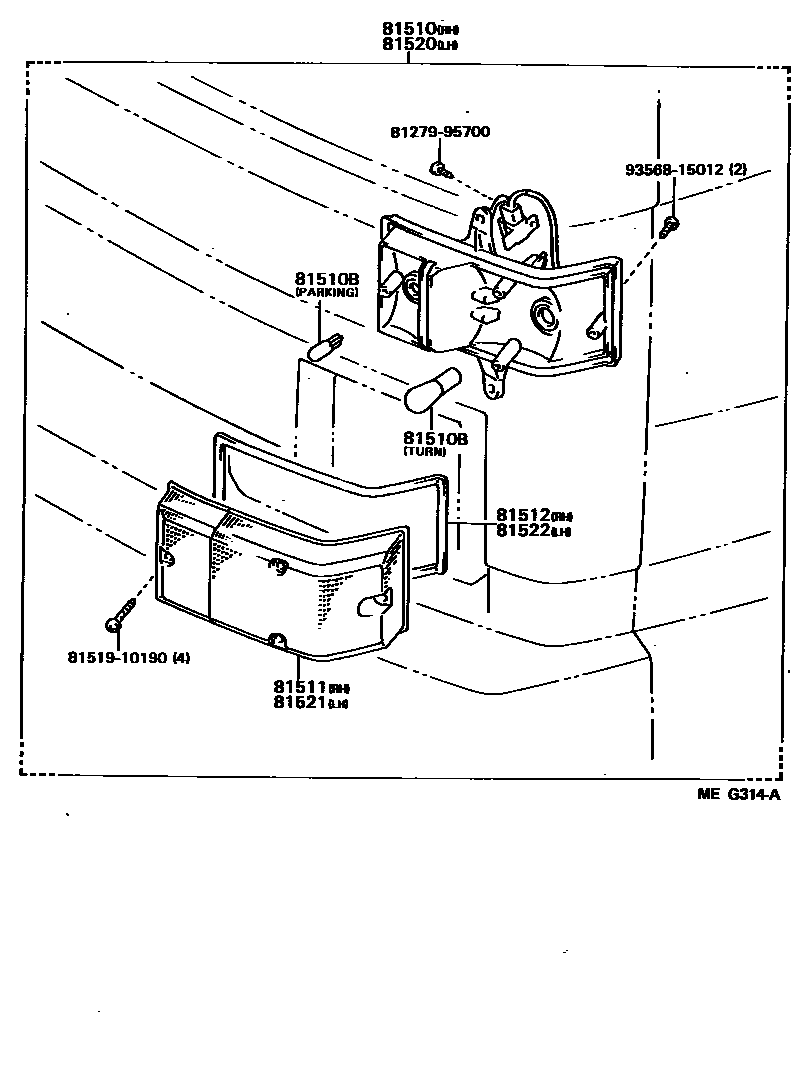

Toyota DYNA100 — FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-39565iLH80,YH81..ARL,EUR198508-198708

sub81510-95409

main81510-39585iLH80,YH80..GEN198508-198708

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210iLH80,YH81..ARL,EUR198508-198708

12V 21W,12V 21W(TURN)

main99132-11230iLH80,YH80..GEN198508-198708

12V 23W,12V 23W(TURN)

main99132-12050iLH80,YH8#198508-198708

12V 5W,12V 5W(PARKING)

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-95408iLH80,YH8#198508-198708

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-95406iLH80,YH8#198508-198708

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-39565iLH80,YH81..ARL,EUR198508-198708

sub81520-95409

main81520-39585iLH80,YH80..GEN198508-198708

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81511-95408iLH80,YH8#198508-198708

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-95406iLH80,YH8#198508-198708

8127995700WASHER, SIDE TURN SIGNAL LAMP

main81279-95700

8151910190BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10190

9356815012

main93568-15012

10 parts on this diagram · 1 diagram in section
