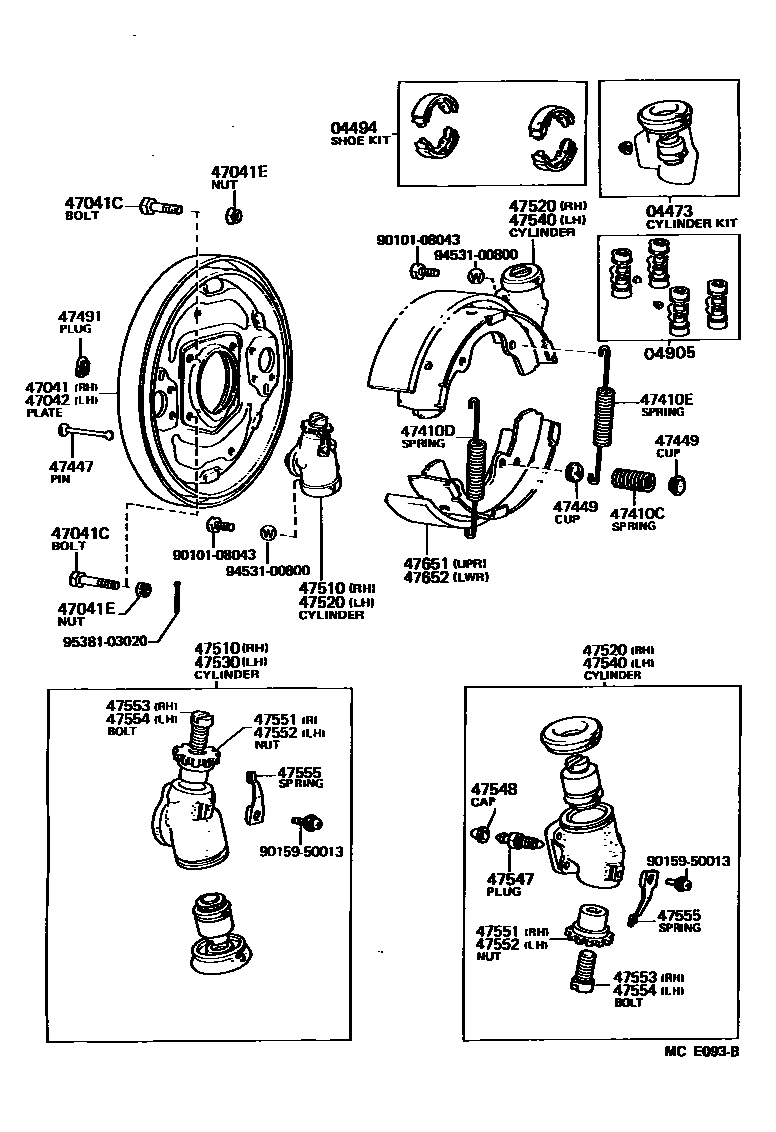

Toyota DYNA100 — FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04473CYLINDER KIT, FRONT WHEEL
04905CUP KIT, FRONT WHEEL CYLINDER
47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
*12-1.25PX38-23
*12-1.25PX38-23
*12-1.25PX69-24
47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
LWR
UPR
47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47491PLUG, HOLE(FOR FRONT BRAKE)
sub47491-36020
47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)
47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)
9010108043
main90101-08043
9015950013
main90159-50013
9453100800
main94531-00800
9538103020
main95381-03020
30 parts on this diagram · 1 diagram in section
