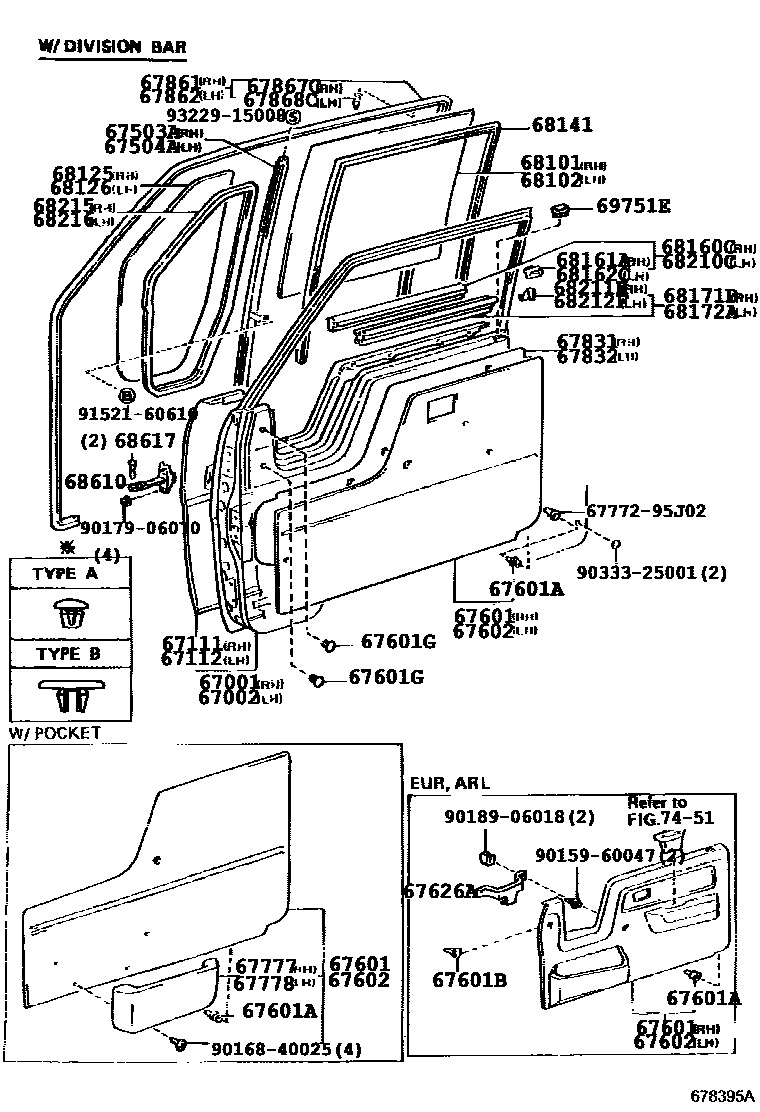

Toyota DYNA100 — FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-37010iLH80,YH81..RHD..GEN199305-199505

W(DIVISION BAR)

main67001-37020iYH81..LHD..GEN199305-199505

W(DIVISION BAR)

main67001-37030iLH80;YH81..EUR;YH81..RHD..GEN199305-199505

main67001-37040iYH81..ARL;YH81..LHD..GEN199305-199505

W(LARGE MIRROR)

main67001-95021iYH81..ARL..CBU;LH80,YH81..RHD..GEN198708-198801

sub67001-95A18

main67001-95024iLH80..EUR,GEN;YH81..EUR..IV;YH81..RHD..GEN;YH81..(ARL,EUR)..CBU198808-199305

sub67001-37030

main67001-95428iLH80..TW;LH80,YH81..EUR..IV198708-198801

W(LARGE MIRROR)

sub67001-95432

sub69751-95400

main67001-95429iYH81..LHD..GEN;LH80,YH81..ARL..IV198708-198801

sub67001-95428

main67001-95430iLH80..TW..CBU;LH80,YH81..T3..EUR..IV198808-199305

W(LARGE MIRROR)

sub67001-37040

main67001-95430iYH81..LHD..GEN;LH80,YH81..ARL..IV198808-199305

sub67001-37040

main67001-95432iLH80..TW;LH80,YH81..EUR..IV198801-198808

W(LARGE MIRROR)

sub67001-37020

main67001-95432iYH81..LHD..GEN198808-199305

W(DIVISION BAR)

sub67001-37020

main67001-95A18iLH80,YH81..EUR198708-198801

IRELAND SPEC

sub67001-95A19

sub69751-95400

main67001-95A19iLH80..EUR,GEN;YH81..EUR..IV;YH81..RHD..GEN;YH81..(ARL,EUR)..CBU198801-198808

sub67001-37010

main67001-95A19iLH80,YH81..RHD..GEN198808-199305

W(DIVISION BAR)

sub67001-37010

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-37010iYH81..LHD..GEN199305-199505

W(DIVISION BAR)

sub67002-37011

main67002-37020iLH80,YH81..RHD..GEN199305-199505

W(DIVISION BAR)

sub67002-37021

main67002-37040iLH80,YH81..LHD199305-199505

sub67002-37041

main67002-37050iLH80,YH81..RHD199305-199505

W(LARGE MIRROR)

sub67002-37051

main67002-95022iYH81..LHD..GEN198708-198801

sub67002-95A26

main67002-95024iLH80,YH81..LHD198808-199305

sub67002-37040

main67002-95433iLH80,YH81..RHD198708-198801

sub67002-95435

main67002-95435iLH80..GEN..CBU198708-198801

W(LARGE MIRROR)

sub67002-95438

sub69751-95400

main67002-95435iLH80..TW;LH80,YH81..EUR..IV198708-198801

IRELAND SPEC

sub67002-95438

sub69751-95400

main67002-95436iLH80,YH81..RHD198808-199305

sub67002-37050

main67002-95436iLH80..TW..CBU;LH80,YH81..T3..EUR..IV198808-199305

W(LARGE MIRROR)

sub67002-37050

main67002-95438iLH80..TW;LH80,YH81..EUR..IV198801-198808

W(LARGE MIRROR)

sub67002-37020

main67002-95438iLH80,YH81..RHD..GEN198808-199305

W(DIVISION BAR)

sub67002-37020

main67002-95A26iLH80,YH81..EUR198708-198801

sub67002-95A27

sub69751-95400

main67002-95A27iYH81..LHD..GEN198808-199305

W(DIVISION BAR)

sub67002-37010

main67002-95A27iLH80,YH81..LHD198801-198808

sub67002-37010

67111PANEL, FRONT DOOR, OUTER RH

main67111-37010iLH80,YH81..RHD..GEN199305-199505

W(DIVISION BAR)

main67111-37020iYH81..LHD..GEN199305-199505

W(DIVISION BAR)

main67111-37030iLH80,YH81199305-199505

main67111-95406iYH81..LHD..GEN;LH80,YH81..ARL..IV198708-198801

sub67111-95407

main67111-95407iLH80..TW;LH80,YH81..EUR..IV198708-198808

W(LARGE MIRROR)

sub67111-37020

main67111-95407iYH81..LHD..GEN;LH80,YH81..ARL..IV198801-198808

sub67111-37020

main67111-95407iYH81..LHD..GEN198808-199305

W(DIVISION BAR)

sub67111-37020

main67111-95408iLH80,YH81198808-199305

sub67111-37030

main67111-95A10iLH80,YH81..RHD..GEN198808-199305

W(DIVISION BAR)

sub67111-37010

main67111-95A10iLH80..EUR,GEN;YH81..EUR..IV;YH81..RHD..GEN;YH81..(ARL,EUR)..CBU198708-198808

sub67111-37010

67112PANEL, FRONT DOOR, OUTER LH

main67112-37010iYH81..LHD..GEN199305-199505

W(DIVISION BAR)

main67112-37020iLH80,YH81..RHD..GEN199305-199505

W(DIVISION BAR)

main67112-37040iLH80,YH81199305-199505

main67112-95405iLH80,YH81..RHD198708-198801

sub67112-95406

main67112-95406iLH80..TW;LH80,YH81..EUR..IV198708-198808

W(LARGE MIRROR)

sub67112-37020

main67112-95406iLH80..GEN..CBU198708-198801

IRELAND SPEC

sub67112-37020

main67112-95406iLH80,YH81..RHD..GEN198808-199305

W(DIVISION BAR)

sub67112-37020

main67112-95406iLH80,YH81..RHD198801-198808

sub67112-37020

main67112-95408iLH80,YH81198808-199305

sub67112-37040

main67112-95A11iLH80,YH81..LHD198708-198808

sub67112-37010

main67112-95A11iYH81..LHD..GEN198808-199305

W(DIVISION BAR)

sub67112-37010

67503ABAR SUB-ASSY, FRONT DOOR DIVISION, RH

main67503-95400iYH81..GEN;LH80..GEN..CBU198708-199505

67504ABAR SUB-ASSY, FRONT DOOR DIVISION, LH

main67504-95400iLH80,YH81198708-199505

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95019-06iLH80,YH81..GEN198708-198808

BROWN,TRIM4#

sub67610-95022

main67610-95019-06iLH80,YH81..GEN198808-199109

W(DIVISION BAR),BROWN,TRIM4#

sub67610-95022

main67610-95019-B0iLH80,YH81..GEN199109-199505

W(DIVISION BAR),GRAY,TRIM1#

sub67610-95022

main67610-95022-06iLH80,YH81..GEN..IV198910-199109

MALAYSIA SPEC,BROWN,TRIM4#

main67610-95022-06iLH80,YH81..RHD..GEN198708-198808

W(DOOR POCKET),BROWN,TRIM4#

main67610-95022-B0iLH80,YH81..GEN..IV199109-199505

MALAYSIA SPEC,GRAY,TRIM1#

main67610-95413-06iLH80,YH81..ARL,EUR198708-198808

BROWN,TRIM4#

main67610-95416-06iLH80,YH81198808-199109

BROWN,TRIM4#

main67610-95416-B0iLH80,YH81199109-199505

GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020iYH81..GEN;LH80..GEN..CBU198910-199505

MALAYSIA SPEC OR W(DIVISION BAR)

main67771-12020iLH80,YH81..GEN198708-198808

main67771-12020iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main67771-30060iLH80,YH81198708-199505

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-06017-B0iLH80,YH81199303-199505

GRAY,TRIM1#

sub90467-06017

main90467-06046-03iLH80,YH81199109-199303

GRAY,TRIM1#

sub90467-06046

sub90467-06017

main90467-06046-06iLH80,YH81198808-199109

BROWN,TRIM4#

sub90467-06046

sub90467-06017

main90467-07043-16iLH80,YH81..ARL,EUR198708-198808

BROWN,TRIM4#

sub90467-07043

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01324-06iLH80,YH81..GEN..CBU198910-199109

MALAYSIA SPEC OR W(DIVISION BAR),BROWN,TRIM4#,TYPE A

sub90950-01324

main90950-01324-06iLH80,YH81..GEN198708-199109

BROWN,TRIM4#,TYPE A

sub90950-01324

main90950-01324-B0iLH80,YH81..GEN..IV199109-199505

MALAYSIA SPEC OR W(DIVISION BAR),GRAY,TRIM1#,TYPE A

sub90950-01324

main90950-01324-B0iLH80..GEN..IV199109-199505

GRAY,TRIM1#,TYPE A

sub90950-01324

main90950-01607-06iLH80,YH81..GEN198708-199109

BROWN,TRIM4#,TYPE B

main90950-01607-06iLH80,YH81..GEN..CBU198910-199109

MALAYSIA SPEC OR W(DIVISION BAR),BROWN,TRIM4#,TYPE B

main90950-01607-B0iLH80,YH81..GEN..IV199109-199505

MALAYSIA SPEC OR W(DIVISION BAR),GRAY,TRIM1#,TYPE B

main90950-01607-B0iLH80,YH81..GEN..IV199109-199505

GRAY,TRIM1#,TYPE B

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95022-06iLH80,YH81..GEN..CBU198910-199109

MALAYSIA SPEC OR W(DIVISION BAR),BROWN,TRIM4#

sub67620-95026

main67620-95022-06iLH80,YH81..GEN198708-198808

BROWN,TRIM4#

sub67620-95026

main67620-95022-06iLH80,YH81..GEN198808-199109

W(DIVISION BAR),BROWN,TRIM4#

sub67620-95026

main67620-95022-B0iYH81..GEN;LH80..GEN..CBU199109-199505

MALAYSIA SPEC OR W(DIVISION BAR),GRAY,TRIM1#

sub67620-95026

main67620-95022-B0iYH81..GEN;LH80..GEN..CBU199109-199505

W(DIVISION BAR),GRAY,TRIM1#

sub67620-95026

main67620-95026-06iYH81..LHD..GEN198708-198808

W(DOOR POCKET),BROWN,TRIM4#

sub67620-95026

main67620-95420-06iLH80,YH81..ARL,EUR198708-198808

BROWN,TRIM4#

main67620-95422-06iLH80,YH81198808-199109

BROWN,TRIM4#

main67620-95422-B0iLH80,YH81199109-199505

GRAY,TRIM1#

67626ABRACKET, DOOR TRIM, NO.2

main67626-95400iLH80,YH81..ARL,EUR198708-199505

67777POCKET, FRONT DOOR TRIM, RH

main67778-22030-01iLH80,YH81..GEN..IV198708-199109

BLACK,TRIM4#

sub67778-22030

main67778-22030-B0iLH80,YH81..GEN..IV199109-199505

GRAY,TRIM1#

sub67778-22030

67778POCKET, FRONT DOOR TRIM, LH

main67777-22040-01iYH81..LHD..GEN198708-198808

BLACK,TRIM4#

sub67777-22040

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95406iLH80,YH81198708-198808

main67831-95406iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main67831-95408iLH80,YH81198808-199505

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95407iLH80,YH81198708-198808

main67832-95407iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main67832-95409iLH80,YH81198808-199505

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95406iLH80,YH81198708-199505

sub67861-37010

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95406iLH80,YH81198708-199505

sub67862-37010

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-95403iLH80,YH81198808-199505

main67868-89101iLH80,YH81198708-198808

sub67867-89103

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-89103iLH80,YH81198708-198808

main67868-95402iLH80,YH81198808-199505

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-37020iLH80,YH81..T3..GEN199109-199505

*TEM,T=4.0,BRONZE

sub68111-37060

main68111-95406iLH80,YH81198708-198808

*TEM,T=4.0

main68111-95406iLH80,YH81..GEN198808-199505

*TEM,T=4.0,W(DIVISION BAR)

main68111-95407iLH80,YH81198808-199505

*TEM,T=4.0

sub68111-37040

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-37020iLH80,YH81..T3..GEN199109-199505

*TEM,T=4.0,BRONZE

sub68112-37080

main68112-95406iLH80,YH81198708-198808

*TEM,T=4.0

main68112-95406iLH80,YH81..GEN198808-199505

*TEM,T=4.0,W(DIVISION BAR)

main68112-95407iLH80,YH81198808-199505

*TEM,T=4.0

sub68112-37060

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-95400iYH81..GEN;LH80..GEN..CBU198708-199505

*TEM,T=3.5

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-95400iLH80,YH81198708-199505

*TEM,T=3.5

sub68126-37020

68141RUN, FRONT DOOR GLASS

main68141-95407iLH80,YH81198708-198808

main68141-95407iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main68141-95408iLH80,YH81198808-199505

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-95402iLH80,YH81198708-198808

main68160-95402iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main68161-95403iLH80,YH81198808-199505

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12080iLH80,YH81198808-199505

WHITE

main68211-30080iLH80,YH81198708-198808

main68211-30080iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main68211-95402iLH80,YH81198808-199505

BROWN

68162CCLIP, FRONT DOOR GLASS OUTER WEATHERSTRIP

main68211-12080iLH80,YH81198808-199505

WHITE

main68211-30080iLH80,YH81198708-198808

main68211-30080iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main68212-95400iLH80,YH81198808-199505

YELLOWISH GREEN

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-95406iLH80,YH81..GEN198708-198711

sub68171-95408

main68171-95407iLH80,YH81..ARL,EUR198708-198808

main68171-95408iLH80,YH81..GEN198711-198801

sub68171-95410

main68171-95409iLH80,YH81198808-199505

main68171-95410iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main68171-95410iLH80,YH81..GEN198801-198808

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-95402iLH80,YH81..GEN198708-198711

sub68172-95405

main68172-95404iLH80,YH81..ARL,EUR198708-198808

main68172-95405iLH80,YH81..GEN198711-198801

sub68172-95407

main68172-95406iLH80,YH81198808-199505

main68172-95407iLH80,YH81..GEN198801-198808

main68172-95407iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68160-95402iLH80,YH81198708-198808

main68160-95402iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main68162-95402iLH80,YH81198808-199505

68211HCLIP, DOOR GLASS WEATHERSTRIP, RH

main68211-12080iLH80,YH81..GEN198708-199505

WHITE

main68211-12080iLH80,YH81198808-199505

W(DIVISION BAR)

main68211-95400iLH80,YH81..ARL,EUR198708-198808

ORANGE

main68211-95401iLH80,YH81198808-199505

YELLOW

main68212-95400iLH80,YH81198808-199505

YELLOWISH GREEN

68212FCLIP, DOOR GLASS WEATHERSTRIP, LH

main68211-12080iLH80,YH81..ARL,EUR198708-199505

WHITE

main68211-12080iLH80,YH81..GEN198808-199505

W(DIVISION BAR)

main68211-95400iLH80,YH81..ARL,EUR198708-198808

ORANGE

main68211-95401iLH80,YH81198808-199505

YELLOW

main68211-95402iLH80,YH81198808-199109

BLOWN

main68211-95402iLH80,YH81199109-199505

BROWN

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-95402iLH80,YH81..GEN..IV198708-199505

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-95402iLH80,YH81198708-199505

68610CHECK ASSY, FRONT DOOR

main68610-95400iLH80,YH81198708-198808

main68610-95401iLH80,YH81198808-199505

68617PIN, FRONT DOOR CHECK

main68617-20011iLH80,YH81198911-199505

main68617-90A00iLH80,YH81198708-198911

sub68617-90A01

69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-20031-01iLH80,YH81..GEN198708-198801

BLACK,TRIM4#

sub69751-20031

main69751-95400-01iLH80,YH81..GEN..CBU199109-199505

W(DIVISION BAR),BLACK,TRIM1#

main69751-95400-01iLH80,YH81..GEN..IV199109-199505

BLACK,TRIM1#

main69751-95400-01iLH80,YH81..GEN198801-199109

BLACK,TRIM4#

main69751-95400-01iLH80,YH81..GEN..CBU198908-199109

W(DIVISION BAR),BLACK,TRIM4#

7451

6777295J02WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J02

9015960047

main90159-60047

9016840025

main90168-40025

9017906070

main90179-06070

9018906018

main90189-06018

9033325001

main90333-25001

9152160610

main91521-60610

9322915008

main93229-15008

47 parts on this diagram · 2 diagrams in section
