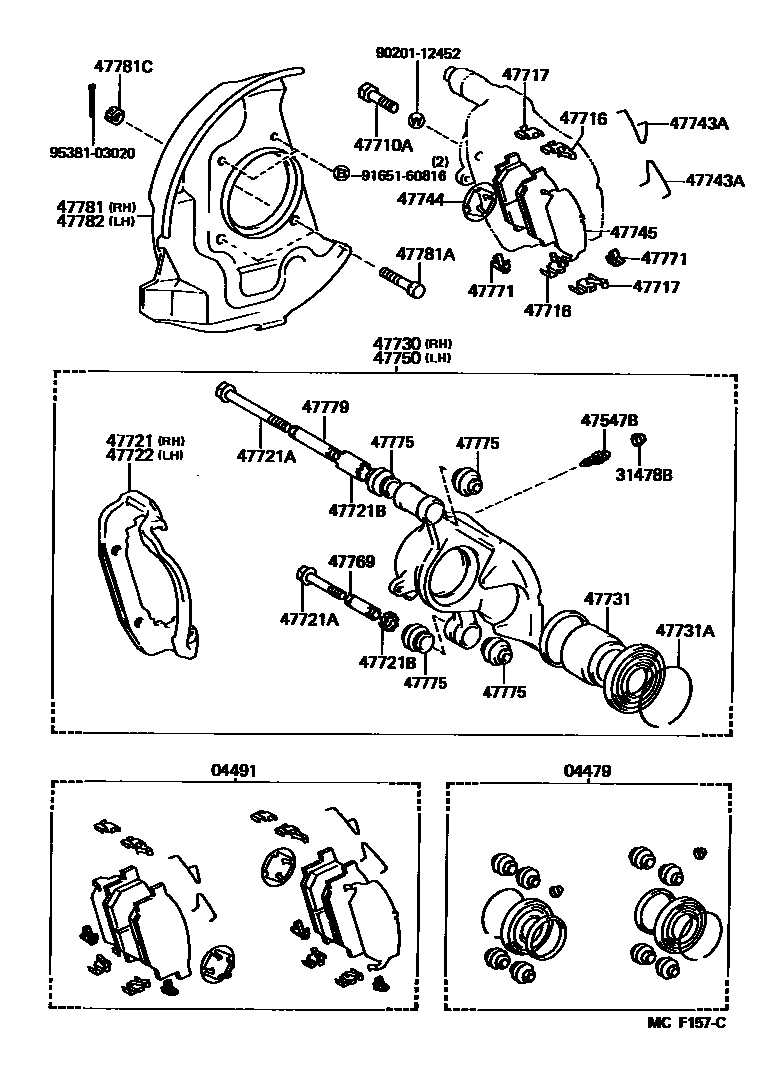

Toyota DYNA100 — FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-40010iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

sub04479-35050

main04479-40010iLH80,YH81199309-199505

sub04479-35050

04491PAD KIT, DISC BRAKE, FRONT

main04491-26120iLH80..GEN..CBU198708-198803

IRELAND SPEC & W(FRONT DISC BRAKE)

sub04491-26200

main04491-26151iLH80,YH81..EUR198708-198808

sub04465-26210

main04491-26191iLH80,YH81..EUR198808-199505

sub04465-26100

main04491-26191iLH80..TW;LH80,YH81..EUR..IV198801-198808

DENMARK SPEC

sub04465-26100

main04491-26200iLH80..GEN..CBU199309-199407

IRELAND SPEC

sub04465-26020

sub04945-26030

main04491-26200iLH80..GEN..CBU198803-199309

IRELAND SPEC & W(FRONT DISC BRAKE)

sub04465-26020

sub04945-26030

main04491-26200iYH81..ARL199205-199505

sub04465-26020

sub04945-26030

main04491-35063iLH80..GEN..CBU198708-199309

W(FRONT DISC BRAKE)

sub04465-26210

main04491-35063iLH80,YH81..GEN198708-199407

sub04465-26210

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main31478-30010iLH80,YH81199309-199505

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main47547-12010iLH80,YH81199309-199505

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12132iYH81;LH80..IV;LH80..EUR..CBU198708-199505

*12-1.25P-31X20

main90101-12132iYH81;LH80..IV;LH80..EUR..CBU198708-199309

*12-1.25P-31X20,W(FRONT DISC BRAKE)

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040iLH80..GEN..CBU199109-199309

W(FRONT DISC BRAKE)

main47716-26040iLH80,YH81199309-199505

main47716-40010iYH81;LH80..IV;LH80..EUR..CBU198708-199109

W(FRONT DISC BRAKE)

sub47716-26040

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-26010iLH80,YH81199309-199505

main47717-26010iYH81;LH80..IV;LH80..EUR..CBU199109-199309

W(FRONT DISC BRAKE)

main47717-40010iLH80..GEN..CBU198708-199109

W(FRONT DISC BRAKE)

sub47717-26010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26050iLH80..GEN..CBU198708-199309

W(FRONT DISC BRAKE)

main47721-26050iLH80,YH81199309-199505

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iLH80..GEN..CBU198708-199505

*10-1.25PX65.5-30

main90119-10014iYH81;LH80..IV;LH80..EUR..CBU198708-199309

*10-1.25PX65.5-30,W(FRONT DISC BRAKE)

main90119-10249iYH81;LH80..IV;LH80..EUR..CBU198708-199505

*10-1.25PX95.5-30

main90119-10249iYH81;LH80..IV;LH80..EUR..CBU198708-199309

*10-1.25PX95.5-30,W(FRONT DISC BRAKE)

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004iLH80..GEN..CBU198708-199309

W(FRONT DISC BRAKE)

main90387-16004iLH80,YH81199309-199505

main90387-16005iLH80..GEN..CBU198708-199309

W(FRONT DISC BRAKE)

main90387-16005iLH80,YH81199309-199505

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main47721-26050iLH80,YH81199309-199505

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26080iLH80..GEN..CBU198708-199309

W(FRONT DISC BRAKE)

main47730-26080iLH80,YH81199309-199505

47731PISTON, FRONT DISC BRAKE

main47731-40010iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main47731-40010iLH80,YH81199309-199505

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-70001iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main90522-70001iLH80,YH81199309-199505

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020iLH80,YH81198708-199505

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26020iYH81;LH80..IV;LH80..EUR..CBU198708-199505

main47744-26020iLH80..GEN..CBU198708-199309

W(FRONT DISC BRAKE)

main47744-26040iLH80..GEN..CBU199309-199407

IRELAND SPEC

main47744-26040iLH80..GEN..CBU198708-199309

IRELAND SPEC & W(FRONT DISC BRAKE)

main47744-26040iLH80,YH81..ARL,GEN199205-199505

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-26020iYH81..ARL199205-199505

main47745-26020iLH80..GEN..CBU199309-199407

IRELAND SPEC

main47745-26020iLH80..GEN..CBU198708-199309

IRELAND SPEC & W(FRONT DISC BRAKE)

main47745-40020iLH80..GEN..CBU198708-199309

W(FRONT DISC BRAKE)

main47745-40020iYH81;LH80..IV;LH80..EUR..CBU198708-199505

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26080iLH80..GEN..CBU198708-199309

W(FRONT DISC BRAKE)

main47750-26080iLH80,YH81199309-199505

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main47769-40010iLH80,YH81199309-199505

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-26010iLH80..GEN..CBU198803-198812

IRELAND SPEC & W(FRONT DISC BRAKE)

sub47771-26011

main47771-26011iYH81..ARL199205-199505

main47771-26011iLH80..GEN..CBU199309-199407

IRELAND SPEC

main47771-26011iLH80..GEN..CBU198812-199309

IRELAND SPEC & W(FRONT DISC BRAKE)

main47771-35010iLH80,YH81..EUR198708-199505

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010iLH80,YH81198708-199505

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main47779-40010iLH80,YH81199309-199505

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-26040iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main47781-26040iLH80,YH81199309-199505

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12005iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main90102-12005iLH80,YH81199309-199505

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90171-12004iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main90171-12004iLH80,YH81199309-199505

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-26040iYH81;LH80..IV;LH80..EUR..CBU198708-199309

W(FRONT DISC BRAKE)

main47782-26040iLH80,YH81199309-199505

9020112452

main90201-12452

9165160816

main91651-60816

9538103020

main95381-03020

29 parts on this diagram · 2 diagrams in section
