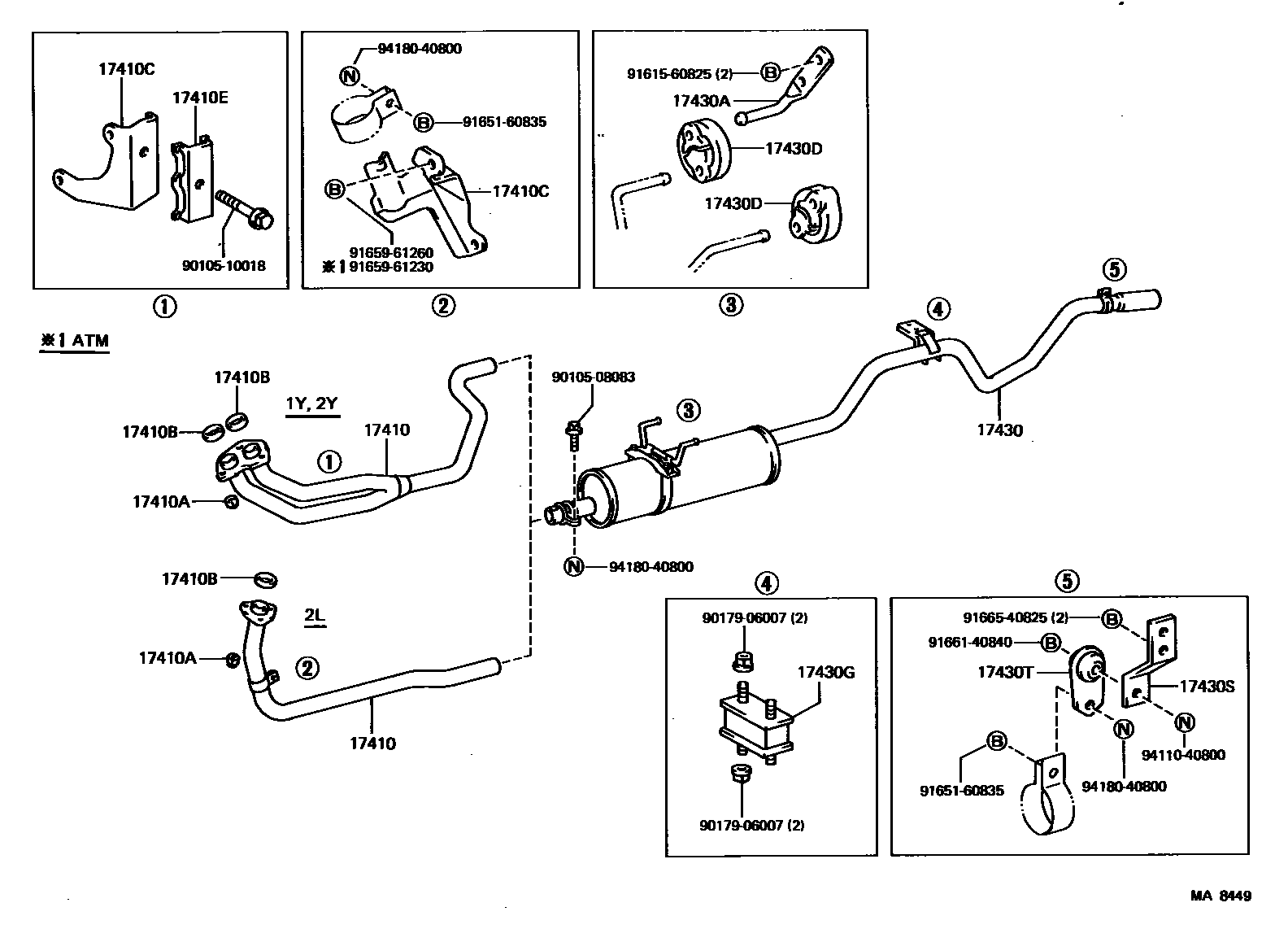

Toyota DYNA100 — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-54600i2L..LH80198508-198605

main17410-54601i2L..LH80198605-198708

main17410-71120i1Y,2Y..YH8#198508-198708

sub17410-71121

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i2L,1Y,2Y..LH80,YH8#198508-198708

17410BGASKET, EXHAUST PIPE

main90917-06001i1Y,2Y..YH8#198508-198708

sub90917-06038

main90917-06004i2L..LH80198508-198708

sub90917-06039

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-54141i2L..LH80..5F198508-198708

main17571-54290i2L..LH80..4FC198508-198708

main17571-71040i1Y,2Y..YH8#198508-198708

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17589-27010i1Y,2Y..YH8#198508-198708

17430PIPE ASSY, EXHAUST, TAIL

main17430-71260i2L,1Y,2Y..LH80,YH8#198508-198708

sub17430-71261

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17575-71050i2L,1Y,2Y..LH80,YH8#198508-198708

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-63030i2L,1Y,2Y..LH80,YH8#198508-198708

17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)

main17567-61010i2L,1Y,2Y..LH80,YH8#198508-198708

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17574-54040i2L,1Y,2Y..LH80,YH8#198508-198708

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main90917-08009i2L,1Y,2Y..LH80,YH8#198508-198708

9010508083

main90105-08083

9010510018

main90105-10018

9017906007

main90179-06007

9161560825

main91615-60825

9165160835

main91651-60835

9165961230

main91659-61230

9165961260

main91659-61260

9166140840

main91661-40840

9166540825

main91665-40825

9411040800

main94110-40800

9418040800

main94180-40800

22 parts on this diagram · 1 diagram in section
