Toyota DYNA100 — ARMREST & VISOR

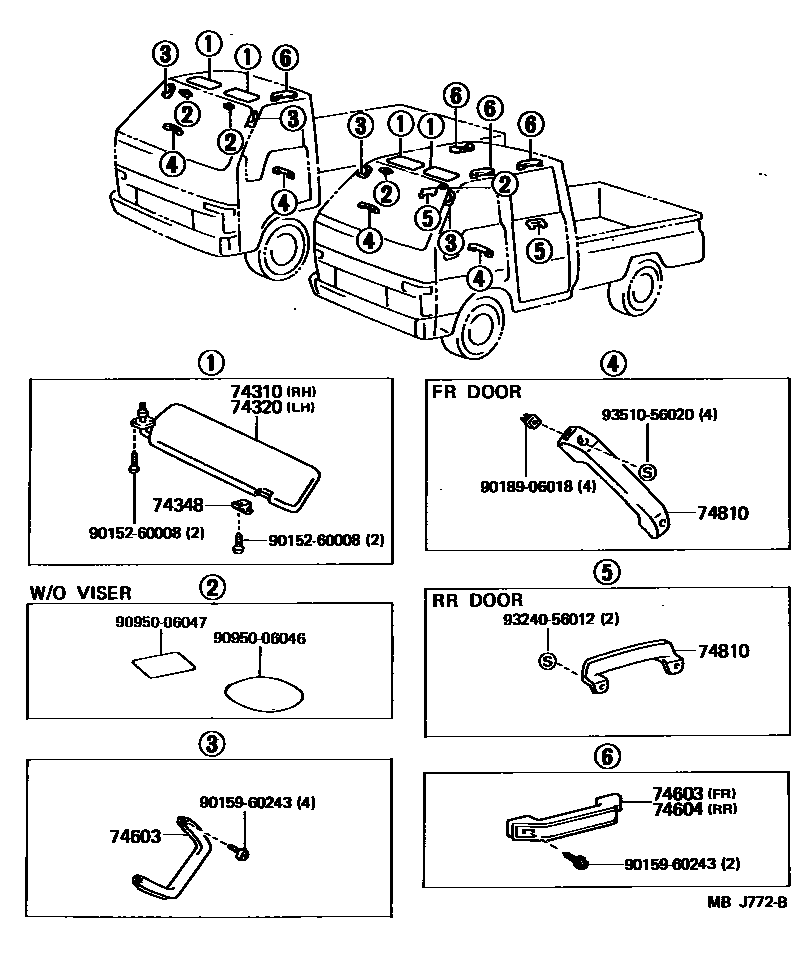

Parts diagram
74310VISOR ASSY, RH
main74310-95025-03i198508-198608
FINLAND SPEC,GRAY,GRAY
main74310-95026-03i198508-198708
FINLAND SPEC,W/*RV,GRAY,GRAY
main74310-95427-03i198508-198608
GRAY,GRAY
main74310-95430-03i198508-198708
W/*RV,GRAY,GRAY
main74310-95436-03i198508-198708
GRAY,GRAY
main74310-95437-03i198508-198708
W/*RV,GRAY,GRAY
main74310-95439-03i198608-198708
GRAY,GRAY
sub74310-95439
main74310-95A25-03i198608-198708
FINLAND SPEC,GRAY,GRAY
74320VISOR ASSY, LH
main74320-95014-03i198508-198608
FINLAND SPEC,GRAY,GRAY
main74320-95015-03i198508-198708
FINLAND SPEC,W/*RV,GRAY,GRAY
main74320-95416-03i198508-198608
GRAY,GRAY
main74320-95418-03i198508-198708
W/*RV,GRAY,GRAY
main74320-95422-03i198508-198708
GRAY,GRAY
main74320-95423-03i198508-198708
W/*RV,GRAY,GRAY
main74320-95425-03i198608-198708
GRAY,GRAY
sub74320-95425
main74320-95A23-03i198608-198708
FINLAND SPEC,GRAY,GRAY
74348HOLDER, VISOR
main74348-12010-23i198508-198708
GRAY,GRAY
sub74348-12010
sub74348-30010
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-95403-03i198508-198708
W/PILLAR,GRAY,SHADOW GRAY
sub74610-95403
sub74620-87001
main74611-92601-03i198508-198708
W/ROOF,GRAY,SHADOW GRAY
sub74611-92601
74604GRIP SUB-ASSY, ASSIST, REAR
main74611-92601-03i198508-198708
GRAY,SHADOW GRAY
sub74611-92601
74810PULL ASSY, DOOR, INSIDE
main69285-92600-03i198508-198708
W/RR DOOR,GRAY,SHADOW GRAY
main69285-95404-03i198508-198708
W/FR DOOR,GRAY,SHADOW GRAY
sub69285-95404
9015260008
main90152-60008
9015960243
main90159-60243
9018906018
main90189-06018
9095006046
main90950-06046
9095006047
main90950-06047
9324056012
main93240-56012
9351056020
main93510-56020

13 parts on this diagram · 1 diagram in section
