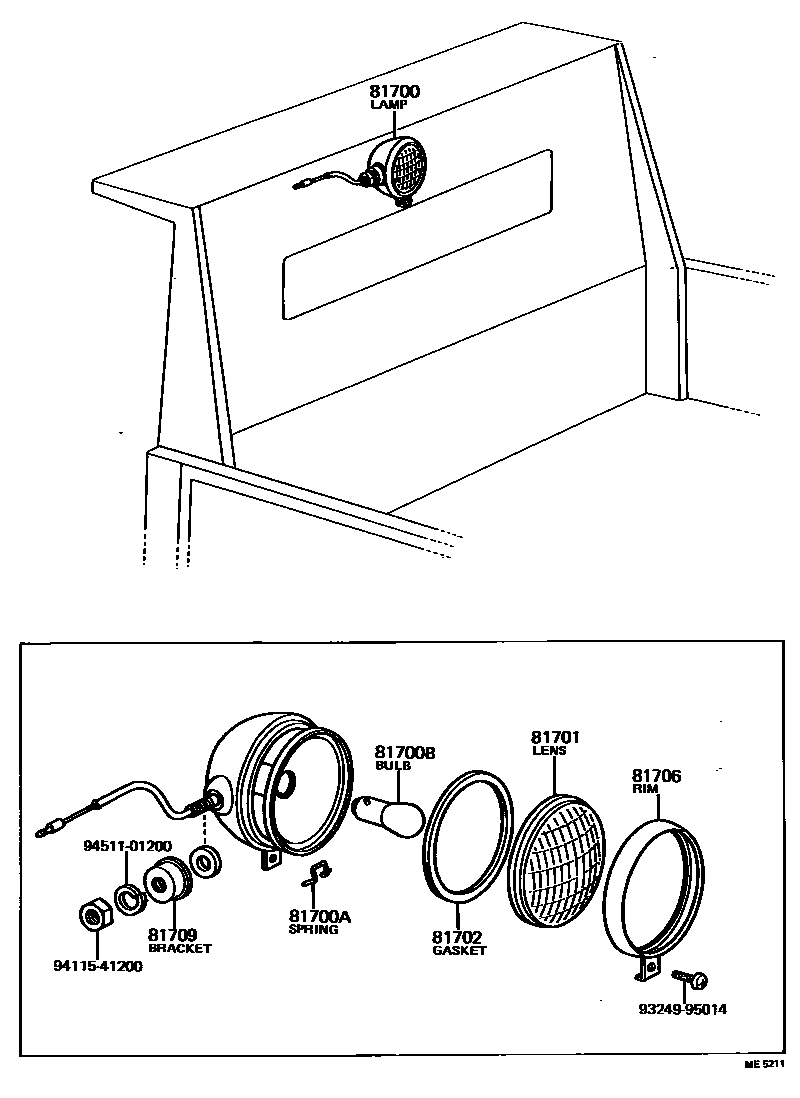

Toyota DYNA — WORK LAMP

81700LAMP ASSY, WORK

main81670-55020iBU20,21,23..DMP197708-198408

24V

81700ASPRING, WORK LAMP

main81517-20010×4iBU20,21,23..DMP197708-198408

81700BBULB, WORK LAMP

main99134-11250iBU20,21,23..DMP197708-198408

81701LENS, WORK LAMP

main81671-59010iBU20,21,23..DMP197708-198408

sub81671-55010

81702GASKET, WORK LAMP

main81512-20010iBU20,21,23..DMP197708-198408

81706RIM, WORK LAMP

main81676-55010iBU20,21,23..DMP197708-198408

81709BRACKET, WORK LAMP

main81678-55010iBU20,21,23..DMP197708-198408

9324995014

main93249-95014

9411541200

main94115-41200

9451101200

main94511-01200

10 parts on this diagram · 1 diagram in section
