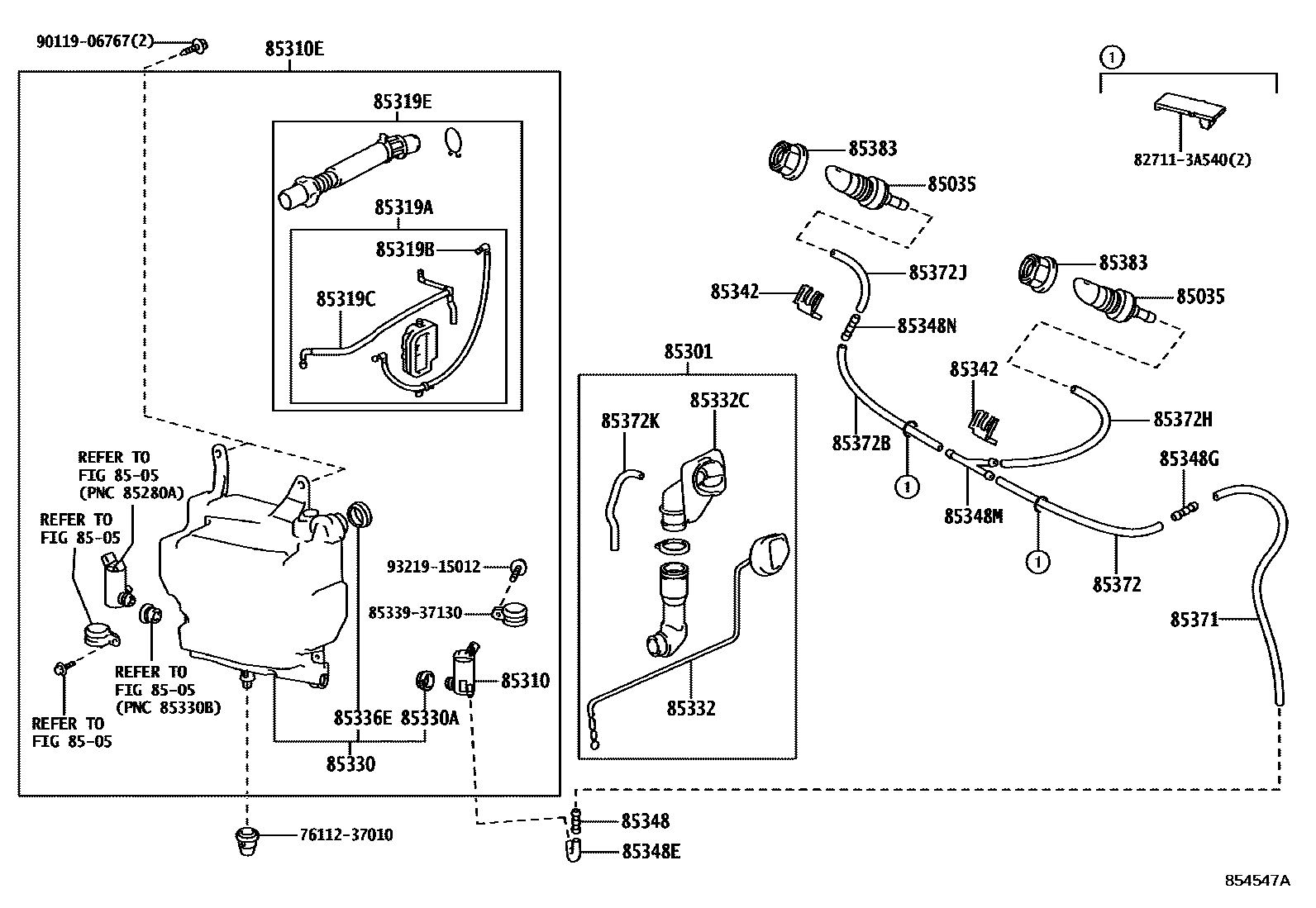

Toyota DYNA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310EJAR & PUMP ASSY, WASHER
85319AHOSE, INLET
85319BHOSE, WINDOW WASHER
main85319-37180iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695; XZC60#,630,645,655,XZU60#,630,64#,65#; XZU685..IV4202103
85319CHOSE, WASHER
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
main85355-37031supersedes 85315-37130iXZC60#,630,645,655,XZU60#,630,64#,65#; XZC675,XZU675,685,695202103-202502
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85332CCAP, FRONT WASHER TANK
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85342HOLDER, WASHER NOZZLE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
main90099-33299iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695; XZC60#,630,645,655,XZU60#,630,64#,65#; XZU685..IV4202103
85383HOLDER, FRONT WASHER NOZZLE
7611237010
main76112-37010
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8533937130CAP SUB-ASSY, RESERVE TANK
main85339-37130
9011906767
main90119-06767
9321915012
main93219-15012
32 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota DYNA
This section contains 32 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota DYNA. Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR & PUMP ASSY, WASHER.
