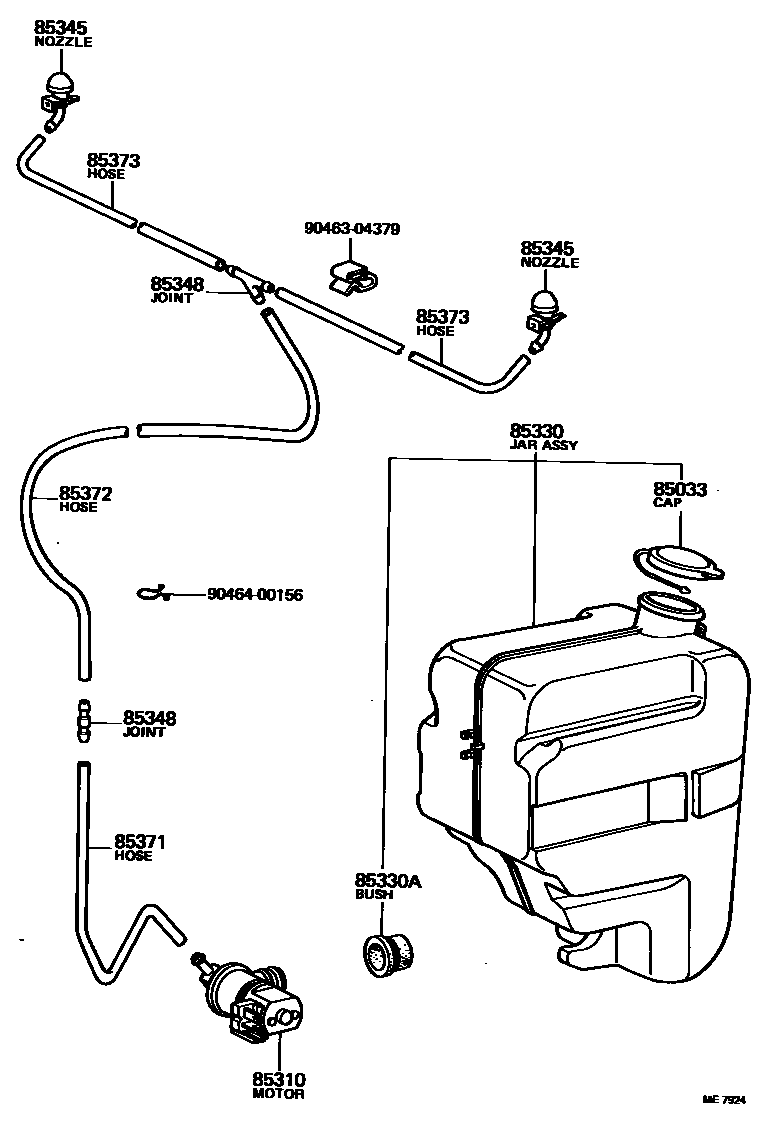

Toyota DYNA — WINDSHIELD WASHER

0001 1 0002 1

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iBU2#,3#,4#,5#197708-198408

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-25010iBU2#,3#,4#,5#197708-198408

24V

sub85310-90B00

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iBU2#,3#,4#,5#197708-198408

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iBU2#,3#,4#,5#197708-198408

85345NOZZLE, WINDSHIELD WASHER

main85035-95400×2iBU2#,3#197708-198008

main85035-95401×3iBU35,36,37,4#,5#198008-198408

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12011×2iBU2#,3#,4#,5#197708-198408

3 WAY

sub85375-89141

main85355-87201iBU2#,3#,4#,5#197708-198408

2 WAY

sub85349-89122

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33316iBU2#,3#197708-197912

main90446-06013iBU2#,3#,4#,5#197912-198408

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33314iBU2#,30197708-197912

main90446-06013iBU2#,3#,4#,5#197912-198408

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33320×2iBU2#,3#197708-197912

main90446-06013iBU2#,3#,4#,5#197912-198408

9046304379

main90463-04379

9046400156

main90464-00156

11 parts on this diagram · 2 diagrams in section
