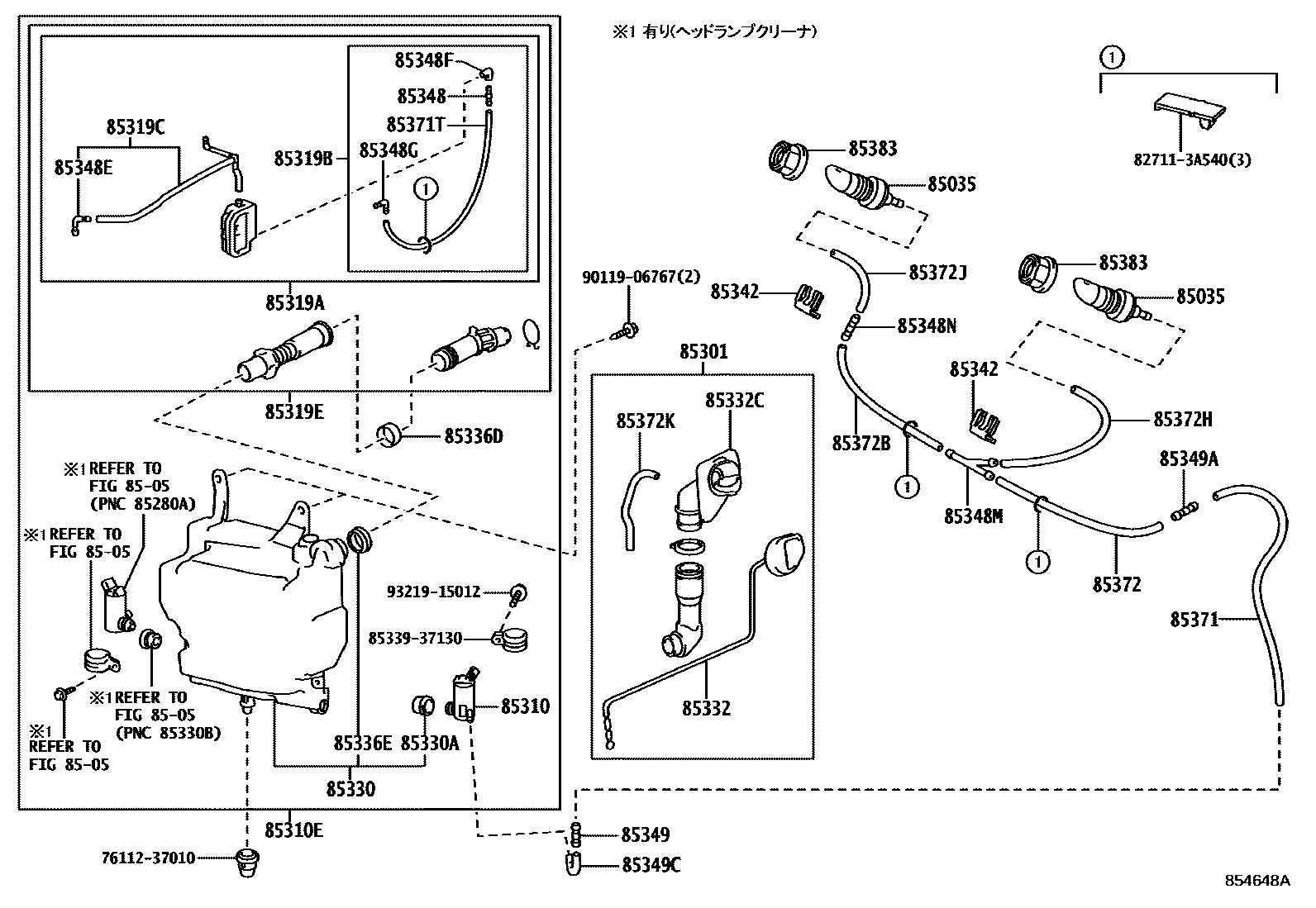

Toyota DYNA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8505
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310EJAR & PUMP ASSY, WASHER
85319AHOSE, INLET
85319BHOSE, WINDOW WASHER
85319CHOSE, WASHER
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85332CCAP, FRONT WASHER TANK
85336DPACKING, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85342HOLDER, WASHER NOZZLE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
85383HOLDER, FRONT WASHER NOZZLE
7611237010
main76112-37010
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8533937130CAP SUB-ASSY, RESERVE TANK
main85339-37130
9011906767
main90119-06767
9321915012
main93219-15012
38 parts on this diagram · 1 diagram in section
