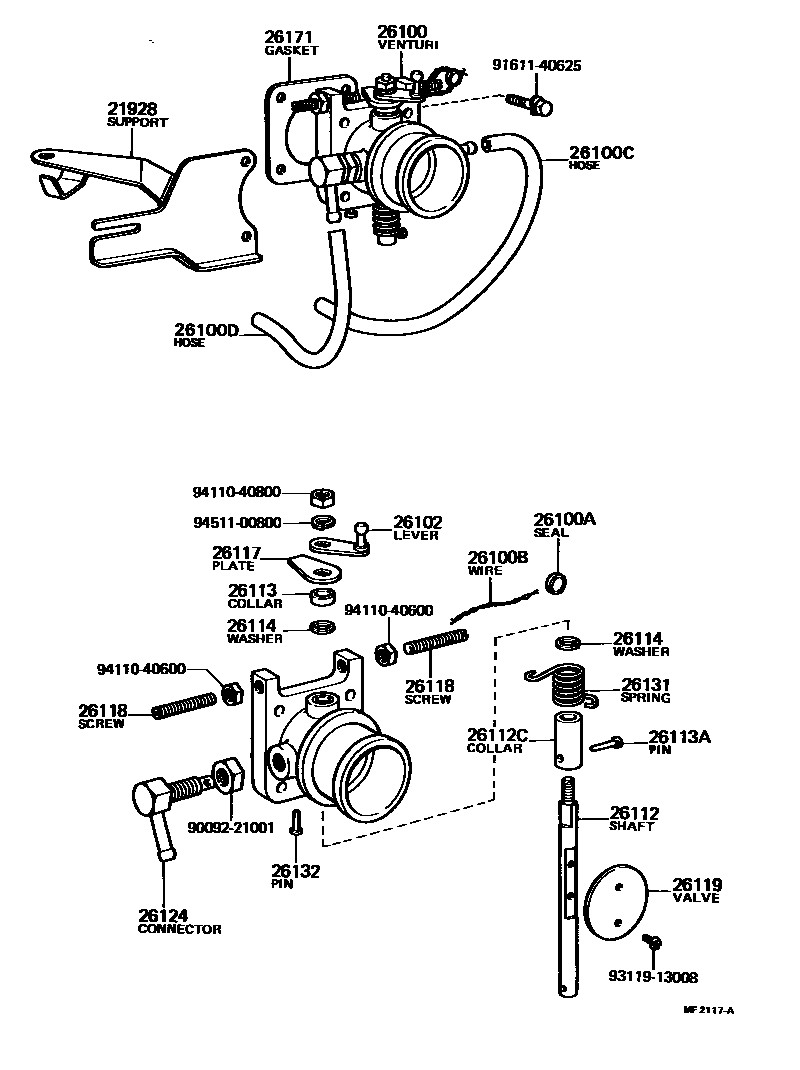

Toyota DYNA — VENTURI
21928SUPPORT, THROTTLE WIRE
26100VENTURI ASSY
26100ASEAL, LEAD
26100BWIRE, SEAL
26100CHOSE, VACCUM, NO.1(VENTURI TO GOVERNOR)
26100DHOSE, VACCUM, NO.2(VENTURI TO GOVERNOR)
26102LEVER SUB-ASSY, THROTTLE SHAFT ADJUSTING
NO.1
NO.2
26112SHAFT, VENTURI THROTTLE VALVE
26112CCOLLAR, ADJUSTING
26113COLLAR, THROTTLE VALVE SHAFT
26113APIN, THROTTLE VALVE SHAFT
26114WASHER, THROTTLE VALVE SHAFT ADJUSTING
26117PLATE, THROTTLE VALVE SHAFT STOP
26118SCREW, STOP PLATE ADJUSTING
NO.2
26119VALVE, VENTURI THROTTLE
26124CONNECTOR, VENTURI PIPE
26131SPRING, RETURN
26132PIN
26171GASKET, VENTURI
9009221001
main90092-21001
9161140625
main91611-40625
9311913008
main93119-13008
9411040600
main94110-40600
9411040800
main94110-40800
9451100800
main94511-00800
25 parts on this diagram · 3 diagrams in section
VENTURI for Toyota DYNA
This section contains 29 genuine Toyota parts for the VENTURI system of the Toyota DYNA. Key components include: ROD, ACCELERATOR CONNECTING(FOR VENTURI), SUPPORT, THROTTLE WIRE, VENTURI ASSY, SEAL, LEAD, WIRE, SEAL.
