Toyota DYNA — TRANSFER GEAR
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
3609TRANSFER CASE & EXTENSION HOUSING
36211SHAFT, TRANSFER INPUT
36211EBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT)
36211JSHIM (FOR TRANSFER INPUT SHAFT)
36231BSHIM (FOR TRANSFER OUTPUT SHAFT)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36234CSPACER (FOR TRANSFER OUTPUT FRONT SHAFT)
36236SLEEVE, FRONT DRIVE CLUTCH
36292SPROCKET, TRANSFER DRIVEN
36293CHAIN, TRANSFER FRONT DRIVE
41330COUPLING ASSY, CENTER DIFFERENTIAL CONTROL

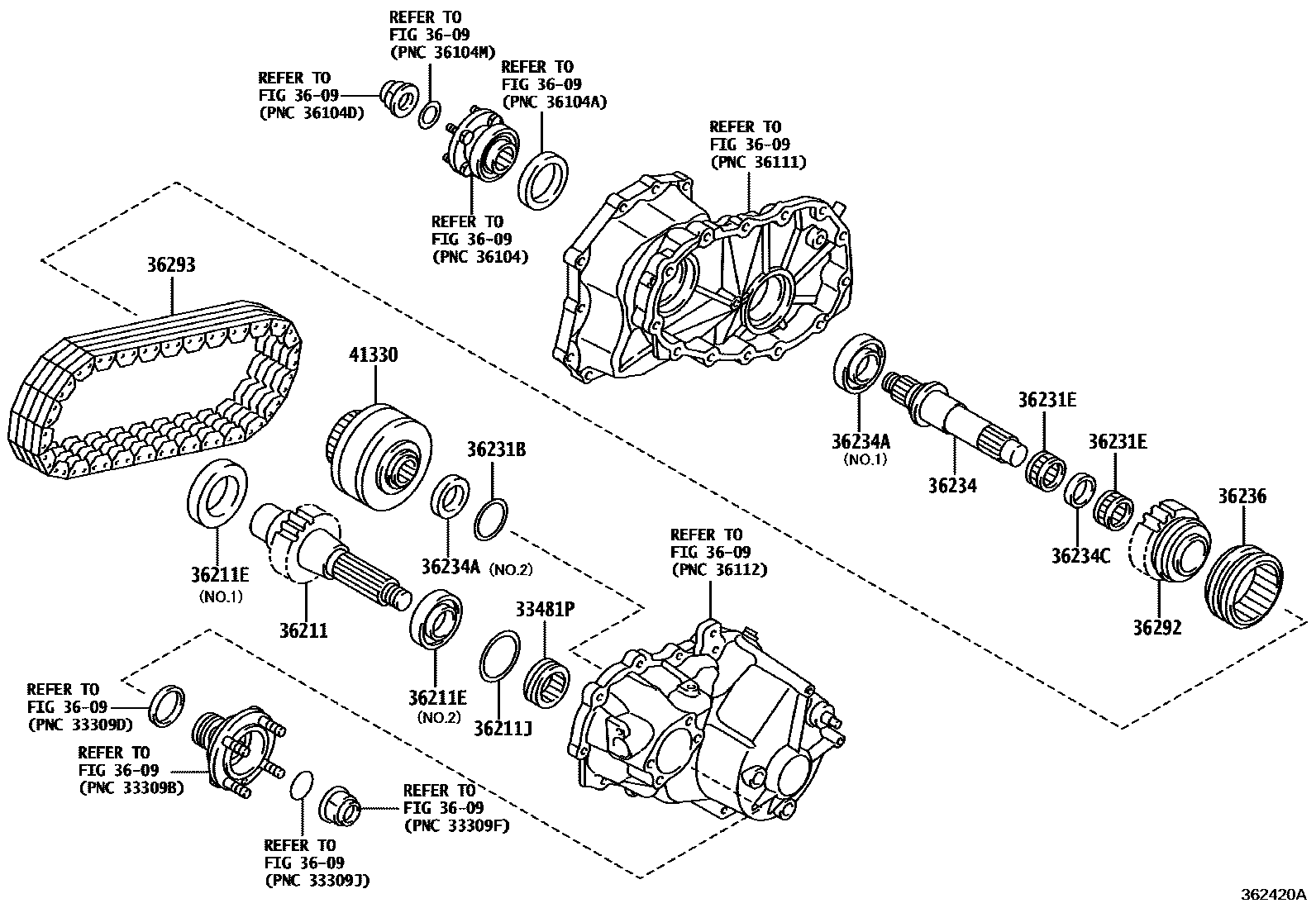

14 parts on this diagram · 1 diagram in section
TRANSFER GEAR for Toyota DYNA
This section contains 14 genuine Toyota parts for the TRANSFER GEAR system of the Toyota DYNA. Key components include: GEAR, SPEEDOMETER DRIVE (FOR TRANSFER), TRANSFER CASE & EXTENSION HOUSING, SHAFT, TRANSFER INPUT, BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT), SHIM (FOR TRANSFER INPUT SHAFT).
