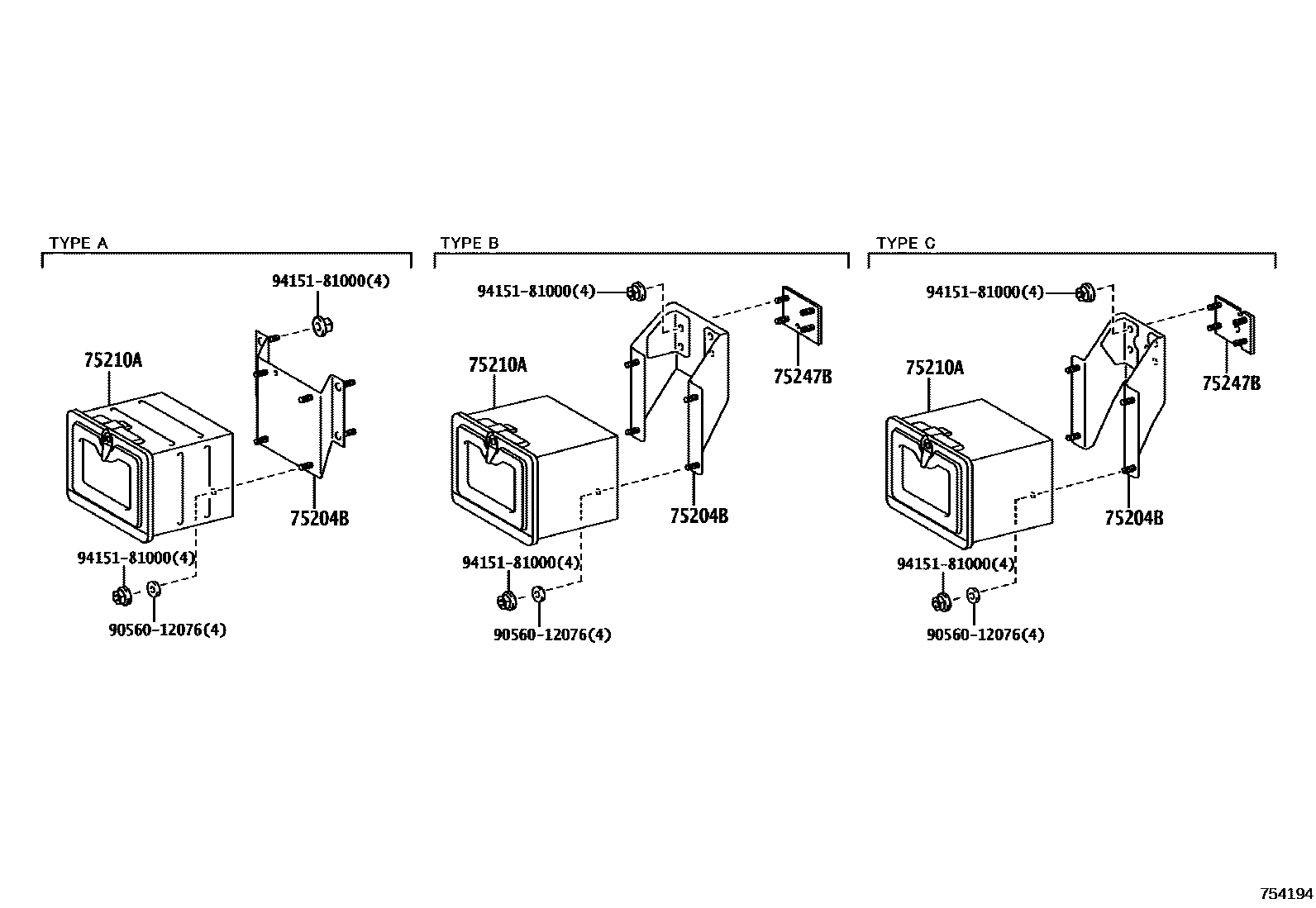

Toyota DYNA — TOOL BOX & LICENSE PLATE BRACKET
75204BSTAY SUB-ASSY, TOOL BOX
main75204-37170iXZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU; XZC605,675,XZU605,675..SCB..(T2,T4,T5)..IV3; XZU675..T4..20T..IV3;XZU605..T5..6FC..30T..IV3;XZC605,675,XZU605..SCB..T4..IV3; XZU675..T4..30T..IV3202103
main75204-37180iXZC645,XZU600,640,645,685..SCB..(T3,T4)..IV3; XZC645..6F..IV3;XZU645..6FC..20T..IV3; XZU640,645..T3..6FC..IV3; XZU645..T3..6F..IV3;XZU645..6F..20T..IV3;XZU640,645..T4..30T..IV3;XZC645,XZU685..SCB..(5F,6FC)..IV3; XZU685..SCB..CBU;XZC645,XZU64#..CBU,IV6202103
main75233-37070iXZC655,XZU65#..SCB..(T3,T4)..(20T,30T,35T)..CBU; XZC655,XZU65#..SCB..IV3; XZU655..SCB..T4..IV3;XZU655..T3..6FC..IV3;XZU655..T3..6F..30T..IV3;XZC655,XZU650,652..(20T,35T)..IV3202103
75210ABOX ASSY, TOOL
main75210-37220iXZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU; XZC605,675,XZU605,675..SCB..(T2,T4,T5)..IV3; XZC645,XZU600,640,645,685..SCB..(T3,T4)..IV3; XZC645..6F..IV3;XZU645..6FC..20T..IV3; XZU640,645..T3..6FC..IV3; XZU645..T3..6F..IV3;XZU645..6F..20T..IV3;XZU640,645..T4..30T..IV3;XZC645,XZU685..SCB..(5F,6FC)..IV3; XZU675..T4..20T..IV3;XZU605..T5..6FC..30T..IV3;XZC605,675,XZU605..SCB..T4..IV3; XZU675..T4..30T..IV3; XZU685..SCB..CBU;XZC645,XZU64#..CBU,IV6202103
main75210-37270iXZC655,XZU65#..SCB..(T3,T4)..(20T,30T,35T)..CBU; XZC655,XZU65#..SCB..IV3; XZU655..SCB..T4..IV3;XZU655..T3..6FC..IV3;XZU655..T3..6F..30T..IV3;XZC655,XZU650,652..(20T,35T)..IV3202103
75247BSUPPORT, TOOL BOX
main75247-25041iXZC645,XZU600,640,645,685..SCB..(T3,T4)..IV3; XZC645..6F..IV3;XZU645..6FC..20T..IV3; XZU640,645..T3..6FC..IV3; XZU645..T3..6F..IV3;XZU645..6F..20T..IV3;XZU640,645..T4..30T..IV3;XZC645,XZU685..SCB..(5F,6FC)..IV3; XZU685..SCB..CBU;XZC645,XZU64#..CBU,IV6202103
main75247-37140iXZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU; XZC605,675,XZU605,675..SCB..(T2,T4,T5)..IV3; XZU675..T4..20T..IV3;XZU605..T5..6FC..30T..IV3;XZC605,675,XZU605..SCB..T4..IV3; XZU675..T4..30T..IV3202103
9056012076
main90560-12076
9415181000
main94151-81000
5 parts on this diagram · 4 diagrams in section
TOOL BOX & LICENSE PLATE BRACKET for Toyota DYNA
This section contains 28 genuine Toyota parts for the TOOL BOX & LICENSE PLATE BRACKET system of the Toyota DYNA. Key components include: BAND SUB-ASSY, TOOL BAG, SUPPORT, JACK HANDLE, BAND, JACK CLAMP, BRACKET SUB-ASSY, REAR LICENSE PLATE, BRACKET, COMBINATION REAR LAMP, RH.
