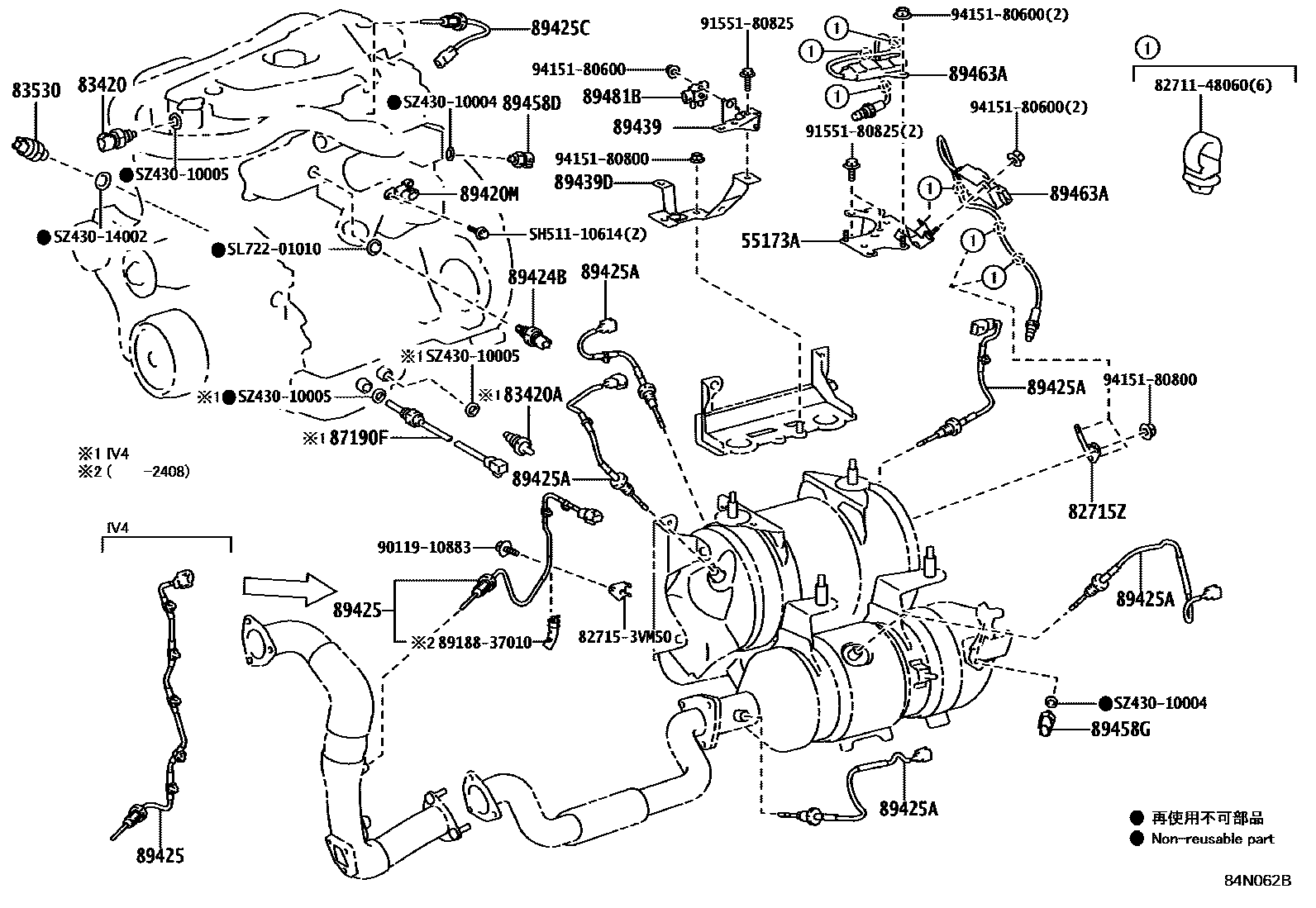

55173ABRACKET

main55173-37711iXZC675,XZU675,685,695;XZU600,605,640,655..DCB202103

main55173-37831iXZC60#,630,645,655,XZU60#,630,64#,65#..SCB202103

82715BRACKET,WIRING HARNESS CLAMP

main82715-3VU90iXZC675,XZU675..T4;XZC60#,630,645,655,XZU60#,630,64#,65#,685,695..SCB202103

main82715-3VV00iXZC675,XZU675..DM5202103

main82715-3VW30iXZU605,655,685,695..DCB..20T202103

main82715-3VW40iXZU600,640,685..IV4202103

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-3VW80iXZC675,XZU675,685,695;XZU600,605,640,655..DCB202103

83420GAGE ASSY, WATER TEMPERATURE SENDER

mainS834201250iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

83420AGAGE ASSY, OIL TEMPERATURE SENDER

mainS834201240iXZU600,640,685..IV4202103

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-E0250iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

87190FSWITCH ASSY, TEMPERATURE CONTROL

mainS834301861iXZU600,640,685..IV4202103

89420MSENSOR ASSY, AIR PRESSURE

main89421-E0050iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

89424BSWITCH, INLET AIR TEMPERATURE

main89424-37020iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-37390iXZU600,640,685..IV4,IV7202103

main89425-37400iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6202103

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-37350×4iXZC675,XZU675,685,695202103

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-37360iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

89439BRACKET, SENSOR

main89439-37330iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

89439DBRACKET, SENSOR, NO.1

main89439-37440iXZC60#,645,655,XZU60#,64#,65#202103

main89439-37470iXZC630,XZU630202103

89458DSENSOR, FUEL PRESSURE

main89458-E0050iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

89458GSENSOR, FUEL PRESSURE, NO.2

main89458-E0050iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

89463ASENSOR, NITROGEN OXIDES

main89463-E0611×2iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-E0021iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

8271148060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48060

827153VM50BRACKET,WIRING HARNESS CLAMP

main82715-3VM50

8918837010GUIDE, STEERING CONTROL SENSOR

main89188-37010

9011910883

main90119-10883

9155180825

main91551-80825

9415180600

main94151-80600

9415180800

main94151-80800

SH51110614

mainSH511-10614

SL72201010

mainSL722-01010

SZ43010004WASHER, SOFT, NO.1

mainSZ430-10004

SZ43010005WASHER, SOFT, NO.1

mainSZ430-10005

SZ43014002WASHER, SOFT, NO.1

mainSZ430-14002

30 parts on this diagram · 16 diagrams in section
