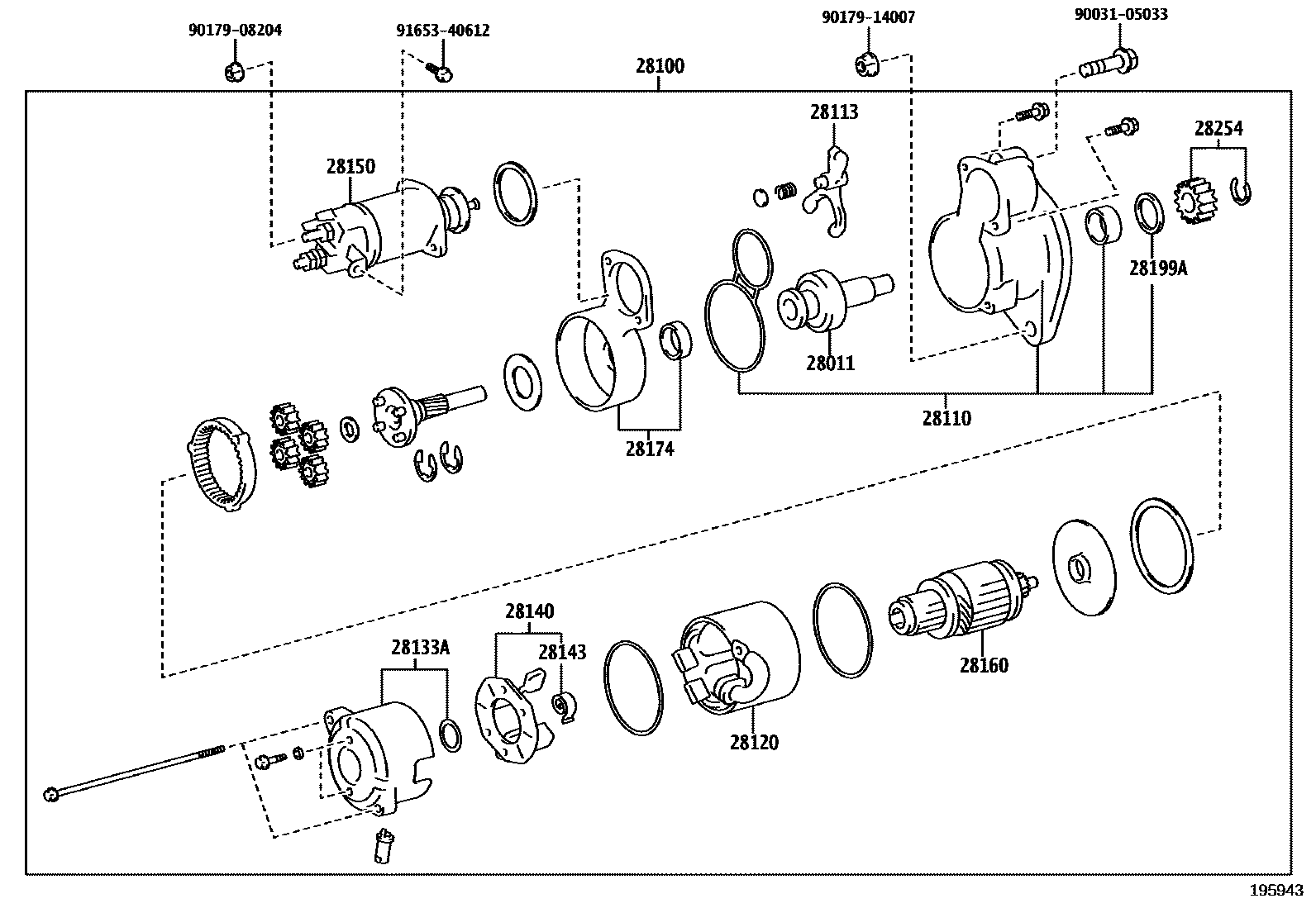

Toyota DYNA — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-78241iN04C..XZU600..IV7;N04C..XZC605,XZU605,655..T2..6F202103

main28011-78251iN04C..XZC605,XZU605,655..T2..6FC;N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV5,IV6)202103

28100STARTER ASSY

main28100-78240iN04C..XZU600,640,685..IV4202310

main28100-78250iN04C..XZU600,640,685..IV4202103-202310

28110HOUSING ASSY, STARTER DRIVE

main28115-78241iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

28113LEVER, STARTER PINION DRIVE

main28113-78240iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

28120YOKE ASSY, STARTER

main28120-78240iN04C..XZU600..IV7;N04C..XZC605,XZU605,655..T2..6F202103-202112

main28120-78241iN04C..XZU600,640,685..IV4202310

main28120-78250iN04C..XZC605,XZU605,655..T2..6FC;N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6)202103-202112

main28120-78251iN04C..XZC605,XZU605,655..T2..6FC;N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV5,IV6)202112

28133AFRAME, COMMUTATOR END

main28133-78240iN04C..XZU600,640,685..IV4202310

main28133-78250iN04C..XZC605,XZU605,655..T2..6FC;N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV5,IV6)202103

28140HOLDER ASSY, STARTER BRUSH

main28140-78240iN04C..XZU600..IV7;N04C..XZC605,XZU605,655..T2..6F202103

main28140-78250iN04C..XZU600,640,685..IV4202103-202310

28143SPRING, STARTER BRUSH

mainS281431200×4iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

28150SWITCH ASSY, MAGNET STARTER

main28150-78240iN04C..XZU600..IV7;N04C..XZC605,XZU605,655..T2..6F202103-202112

main28150-78241iN04C..XZU600..IV7;N04C..XZC605,XZU605,655..T2..6F202112

main28150-78250iN04C..XZC605,XZU605,655..T2..6FC;N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6)202103-202112

main28150-78251iN04C..XZC605,XZU605,655..T2..6FC;N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV5,IV6)202112

28160ARMATURE ASSY, STARTER

main28160-78240iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

28174HOUSING, STARTER MOTOR

main28174-78241iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

28199APROTECTOR, DUST STARTER

mainS281991100iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

28254PINION, STARTER IDLE GEAR

main28250-78240iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202112

main28250-78241iN04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202112

9003105033

main90031-05033

9017908204

main90179-08204

9017914007

main90179-14007

9165340612

main91653-40612

17 parts on this diagram · 1 diagram in section
