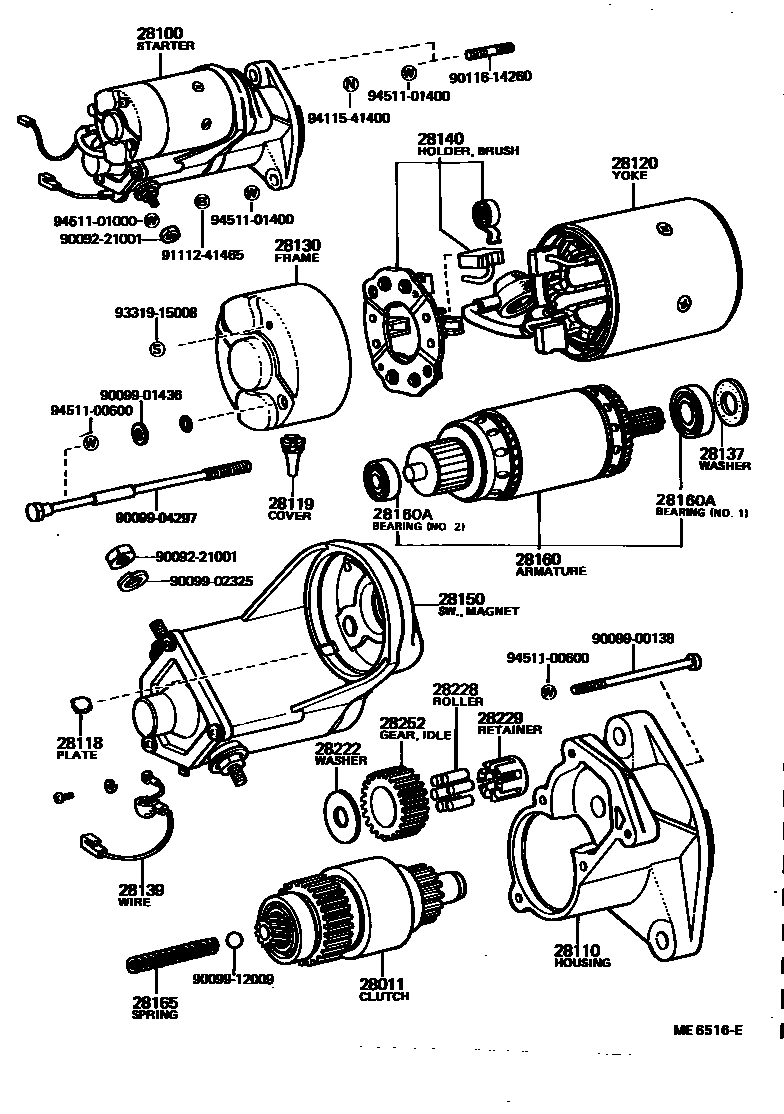

Toyota DYNA — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-54010iB,2B,3B..BU2#,3#,4#,5#198003-198408

24V 4.5KW

main28011-77090iB,2B..BU2#,3#197708-198003

24V 4.5KW

28100STARTER ASSY

main28100-56030iB,2B,3B..BU2#,3#197708-198204

main28100-56120iB,3B..BU2#,3#,4#,5#198204-198408

24V 4.5KW,MAGNET SW=STD TYPE

main28100-56140iB,3B..BU2#,3#,4#,51198311-198408

24V 4.5KW,MAGNET SW=HEAVY TYPE

28110HOUSING ASSY, STARTER DRIVE

main28115-56030iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28118PLATE(FOR STARTER YOKE)

main28118-77090iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28119COVER, STARTER END FRAME

main28119-77090iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

sub28199-77090

28120YOKE ASSY, STARTER

main28120-77090iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-56030iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

sub28130-56060

sub28199-46080

sub90099-04207

28137WASHER, FELT, STARTER

main90099-02205iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-56120iB,3B..BU2#,3#,4#,5#198204-198408

24V 4.5KW

main28139-77090iB,2B,3B..BU2#,3#197708-198204

12V 2.5KW,24V 4.5KW

sub28139-56230

28140HOLDER ASSY, STARTER BRUSH

main28140-77090iB,2B,3B..BU2#,3#,4#,5#197708-198408

12V 2.5KW,24V 4.5KW

28150SWITCH ASSY, MAGNET STARTER

main28150-56140iB,3B..BU2#,3#,4#,51198311-198408

24V 4.5KW,DELIVERY VAN

main28150-77090iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28160ARMATURE ASSY, STARTER

main28160-56140iB,3B..BU2#,3#,4#,51198311-198408

24V 4.5KW,DELIVERY VAN

main28160-77090iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28160ABEARING, STARTER ARMATURE

main90099-10107iB,2B,3B..BU2#,3#,4#,5#197708-198408

12V 2.5KW,24V 4.5KW,NO.2

main90099-10119iB,2B,3B..BU2#,3#,4#,5#197708-198408

12V 2.5KW,24V 4.5KW,NO.1

main90099-10131iB,3B..BU2#,3#,4#,51198311-198408

24V 4.5KW,NO.2,DELIVERY VAN

main90099-54120iB,3B..BU2#,3#,4#,51198311-198408

24V4.5KW,NO.1,DELIVERY VAN

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-77090iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28222WASHER, STARTER IDLE GEAR CLUTCH

main28222-77090iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-56080×6iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-56080iB,2B,3B..BU2#,3#,4#,5#197708-198408

24V 4.5KW

28252GEAR, STARTER IDLE

main28254-77090iB,2B,3B..BU2#,3#,4#,5#197708-198408

12V 2.5KW,24V 4.5KW

9009221001

main90092-21001

9009900138

main90099-00138

9009901436

main90099-01436

9009902325

main90099-02325

9009904297

main90099-04297

9009912009

main90099-12009

9011614260

main90116-14260

9111241465

main91112-41465

9331915008

main93319-15008

9411541400

main94115-41400

9451100600

main94511-00600

9451101000

main94511-01000

9451101400

main94511-01400

31 parts on this diagram · 1 diagram in section
