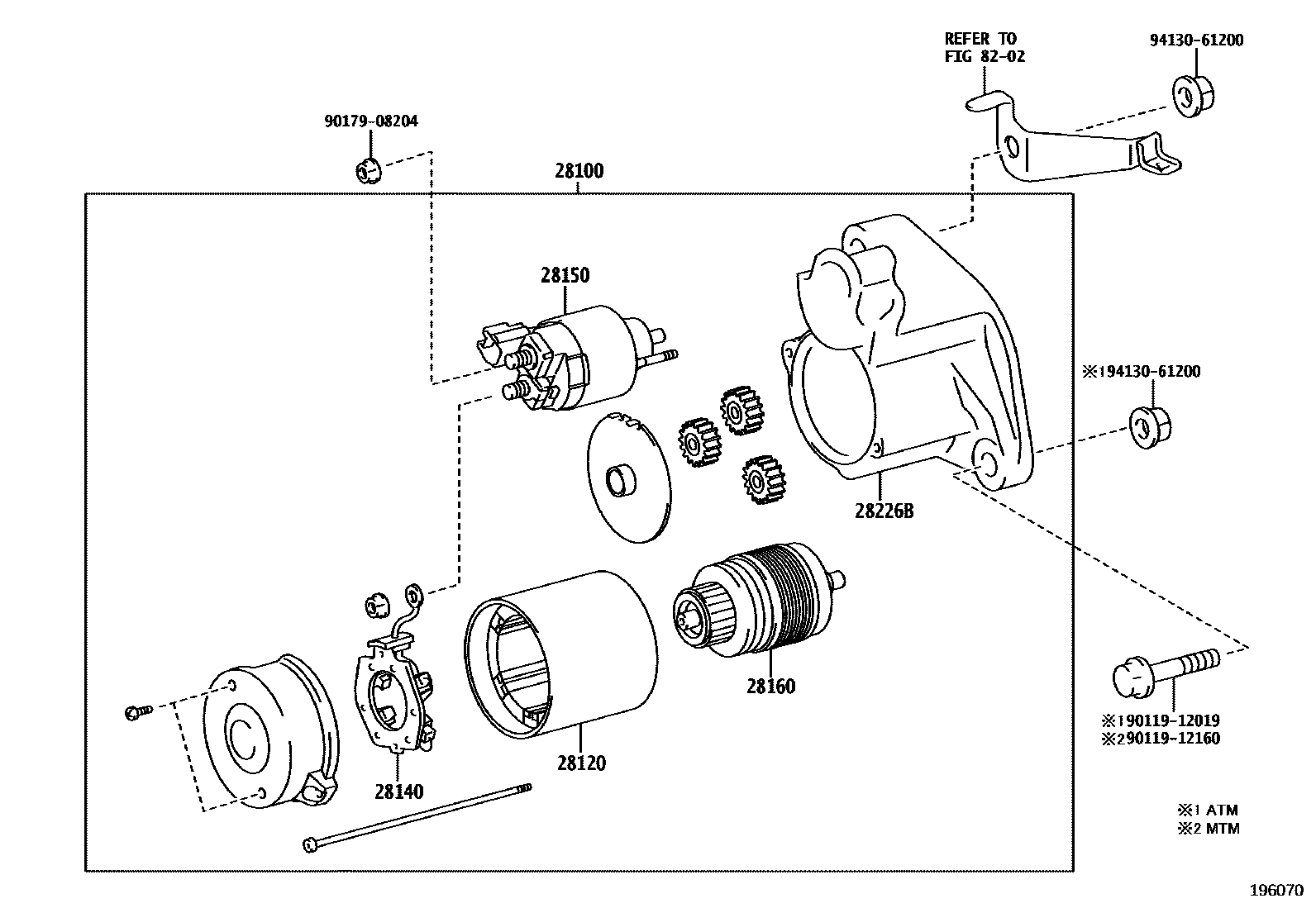

Toyota DYNA — STARTER

0001 112V 2.0KW 0002 112V 2.7KW 0003 112V 1.0KW 0004 112V 1.4KW

28100STARTER ASSY

main28100-30081supersedes 28100-11210i1GDFTV..GDY231,281..SCB..T4..6FC..IV3202108-202509

main28100-75101supersedes 28100-75151i1TRFE..TRY230202108

28120YOKE ASSY, STARTER

main28120-66040supersedes 28120-40130i1TRFE..TRY230202108

main28120-67020supersedes 28120-0L180i1GDFTV..GDY231,281..SCB..T4..6FC..IV3202108-202509

28140HOLDER ASSY, STARTER BRUSH

main28140-76070supersedes 28140-70020i1TRFE..TRY230202108

main28140-77090supersedes 28140-0L180i1GDFTV..GDY231,281..SCB..T4..6FC..IV3202108-202509

28150SWITCH ASSY, MAGNET STARTER

main28150-30050supersedes 28150-40090i1GDFTV..GDY231,281..SCB..T4..6FC..IV3202108-202509

main28150-75102supersedes 28150-75150i1TRFE..TRY230202108

28160ARMATURE ASSY, STARTER

main28160-54160supersedes 28160-33150i1GDFTV..GDY231,281..SCB..T4..6FC..IV3202108-202509

main28160-75060supersedes 28160-70050i1TRFE..TRY230202108

28226BSTARTER KIT, REPAIR SERVICE

main28226-0L190i1GDFTV..GDY231,281202108-202509

8202

9011912019

main90119-12019

9011912160

main90119-12160

9017908204

main90179-08204

9413061200

main94130-61200

11 parts on this diagram · 4 diagrams in section
