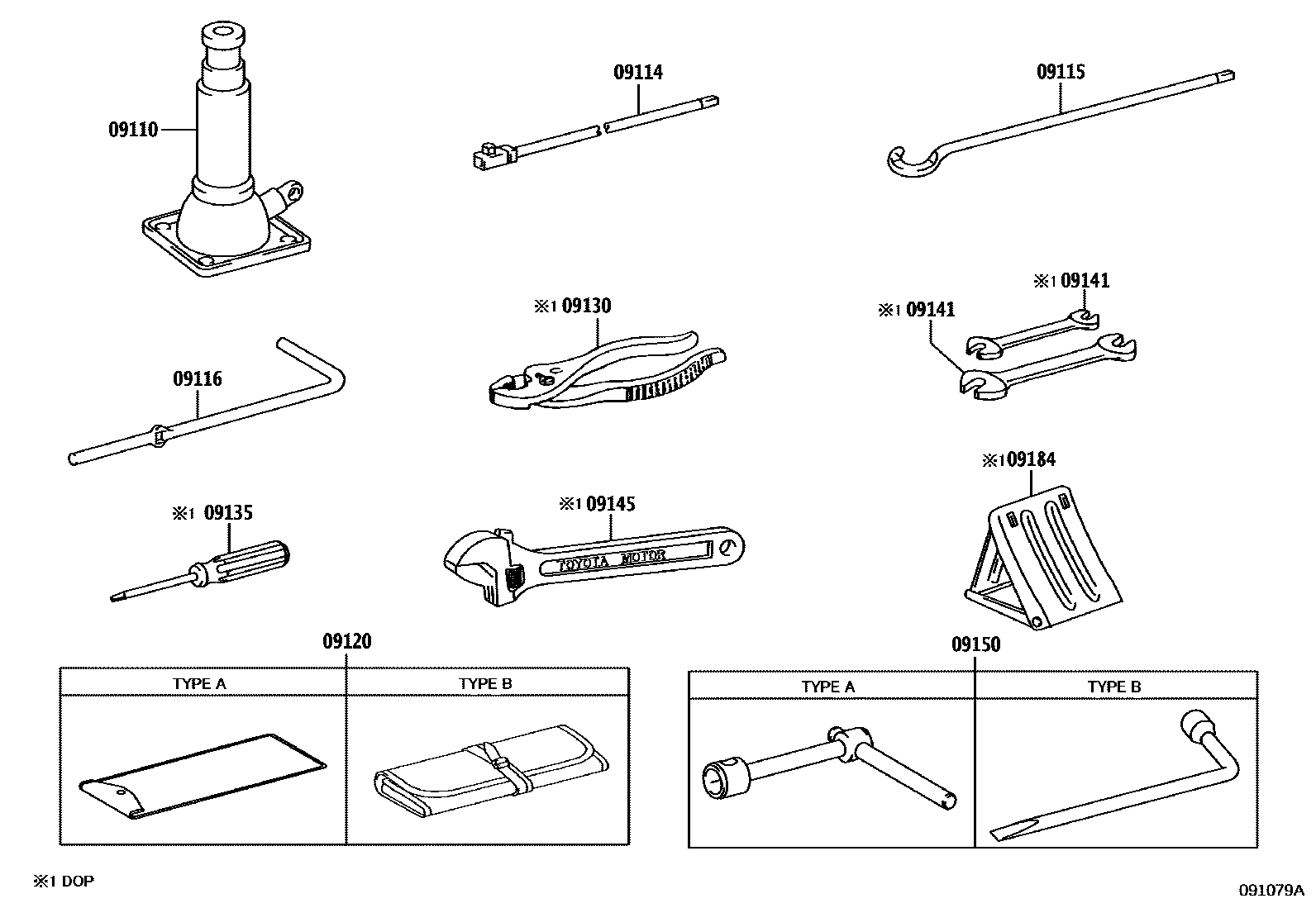

Toyota DYNA — STANDARD TOOL

09110JACK ASSY

main09111-25140iGDY231,281202108-202509

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iGDY231,281202108-202509

09115ROD SUB-ASSY, JACK HANDLE

main09115-35070iGDY231,281202108-202509

09116LEVER, JACK HANDLE

main09116-35041iTRY230202108

09120BAG, TOOL

main09120-25040iGDY231,281..IV6202109-202509

main09120-37031iGDY231,281..T4..(CBU,IV3)202108-202509

09130PLIERS

main99913-11500iTRY230202108

09135DRIVER, SCREW

main99915-10700iTRY230202108

09141SPANNER

main99914-10810iGDY231,281202108-202509

main99914-11214iGDY231,281202108-202509

09145WRENCH, MONKEY

main99911-11200iTRY230202108

09150WRENCH, HUB NUT BOX

main09150-25020iGDY231,281..T4202108-202509

main09150-25040iGDY231,281..T2,TS202108-202509

main09150-26030iGDY231,281..T2,TS202108-202509

09184STOPPER, WHEEL

main09184-60010×2iGDY231,281202108-202509

11 parts on this diagram · 1 diagram in section
