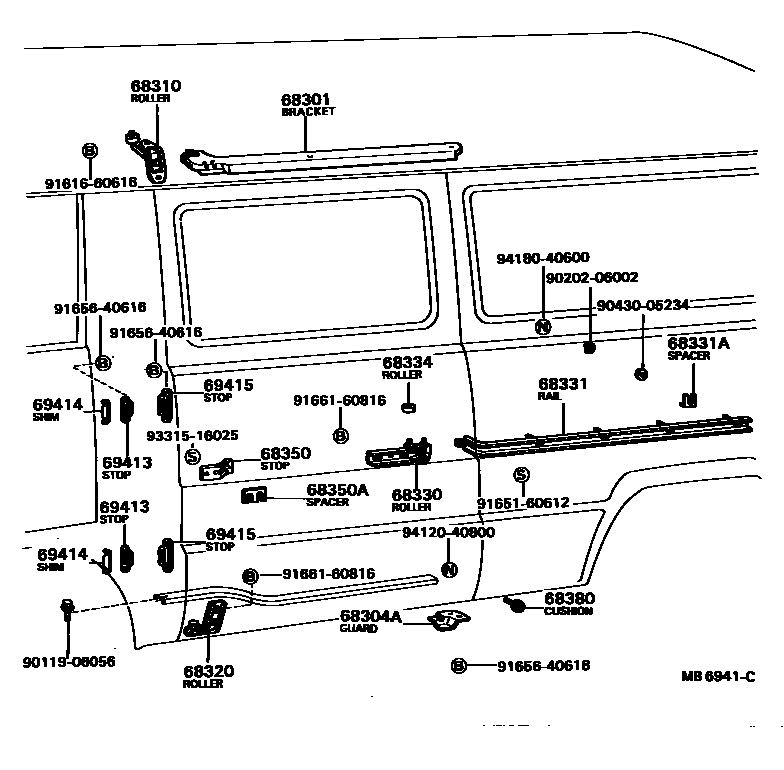

Toyota DYNA — SLIDE ROLLER & RAIL
68301BRACKET SUB-ASSY, SLIDE DOOR UPPER RAIL
68304AGUARD, SLIDE DOOR LOWER RAIL
68310ROLLER ASSY, SLIDE DOOR, UPPER
68320ROLLER ASSY, SLIDE DOOR, LOWER
68330ROLLER ASSY, SLIDE DOOR, CENTER
68331RAIL, SLIDE DOOR, CENTER
68331ASPACER, SLIDE DOOR CENTER RAIL
68334ROLLER, SLIDE DOOR CENTER, NO.2
68350STOPPER ASSY, SLIDE DOOR OPEN
68350ASPACER, SLIDE DOOR OPEN STOPPER
68380CUSHION ASSY, SLIDE DOOR
69413STOP, SLIDE DOOR DOWN MALE
69414SHIM, SLIDE DOOR DOWN STOP MALE
69415STOPPER, SLIDE DOOR DOWN FEMALE
9011906056
main90119-06056
9020206002
main90202-06002
9043005234
main90430-05234
9161660616
main91616-60616
9165160612
main91651-60612
9165640616
main91656-40616
9165640618
main91656-40618
9166160816
main91661-60816
9331516025
main93315-16025
9412040800
main94120-40800
9418040600
main94180-40600
25 parts on this diagram · 1 diagram in section
SLIDE ROLLER & RAIL for Toyota DYNA
This section contains 25 genuine Toyota parts for the SLIDE ROLLER & RAIL system of the Toyota DYNA. Key components include: BRACKET SUB-ASSY, SLIDE DOOR UPPER RAIL, GUARD, SLIDE DOOR LOWER RAIL, ROLLER ASSY, SLIDE DOOR, UPPER, ROLLER ASSY, SLIDE DOOR, LOWER, ROLLER ASSY, SLIDE DOOR, CENTER.
