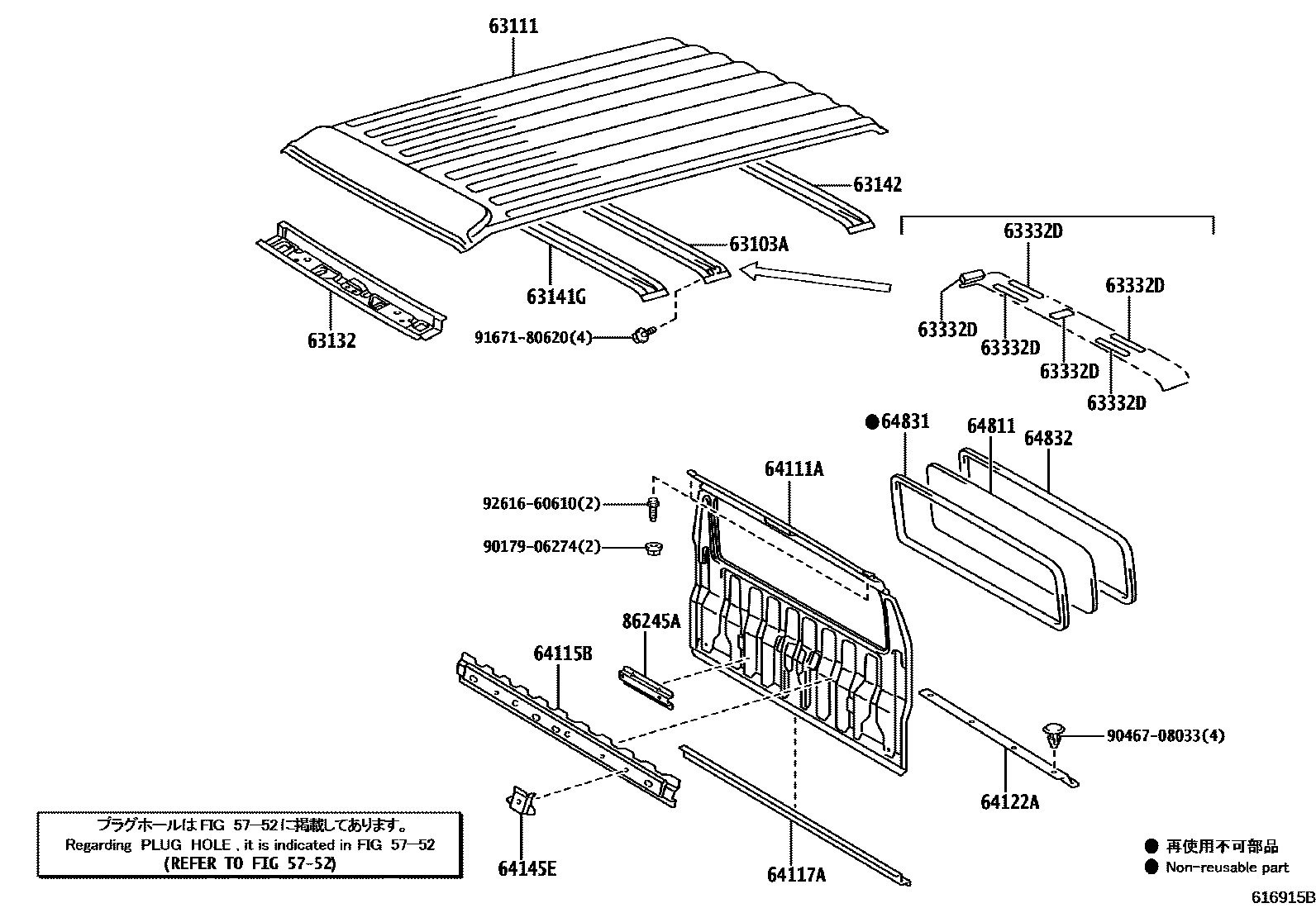

Toyota DYNA — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1����������� 0005 1���������

5752

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63123-37011iXZU605,655,685,695..DCB..20T202103

63111PANEL, ROOF

main63111-37120iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T3,T4)..(IV3,IV7)202103

main63111-37132iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(CBU,IV3,IV7)202103

main63111-37140iXZU605,655,685,695..DCB..20T202103

main63111-37150supersedes 63111-37240iXZU600,640,685..IV4202103

main63111-37312iXZC645,655,XZU600,640,645,65#,685,695..SCB..(T3,T4)..IV3202103

63132PANEL, WINDSHIELD HEADER, INNER

main63109-37050iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T3,T4)..(IV3,IV7)202209

main63109-37061iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(CBU,IV3,IV7)202211

main63132-37074iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T3,T4)..(IV3,IV7)202103-202209

main63132-37086iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(CBU,IV3,IV7)202109-202209

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37070iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T2,T3,T4)..(CBU,IV3,IV7)202103

main63141-37170iXZU605..IV5;XZC645,655,XZU600,64#,65#,685,695..SCB..(DM7,T3,T4)..(IV3,IV7)202103

main63143-37040iXZU600,640,685..IV4202103

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-37141iXZU605,655,685,695..DCB..20T202103-202209

main63141-37142iXZU605,655,685,695..DCB..20T202210

63332DPAD, SUN ROOF HEADLINING

main63332-37010×4iXZU605,655,685,695..DCB..20T202103

main63332-37020iXZU605,655,685,695..DCB..20T202103

main63332-37040iXZU605,655,685,695..DCB..20T202103

64111APANEL, BACK

main64111-37376iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

main64111-37514iXZU605,655,685,695..DCB..20T202103

main64111-37540supersedes 64111-37523iXZU685..IV4202103-202310

64115BREINFORCEMENT, BACK PANEL

main64115-25040iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103-202110

main64115-25041iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202111-202410

main64115-25042iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202411-202412

main64115-25043iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202412

main64115-37150×2iXZU600,640,685..IV4202103

64117AREINFORCEMENT, CAB BACK, LOWER

main64117-37030iXZU600,605,640,655,685,695..DCB202103

64122ABAFFLE, DUST REAR BODY

main64122-25020iXZU600,640,685..IV4202103

64145EBRACKET, REAR SEATBACK SET

main64145-37020×2iXZU600,605,640,655,685,695..DCB202103

64811GLASS, BACK WINDOW

main64811-37120supersedes 64811-37210iXZU675..T4..IV3;XZC600,630,XZU600,602,630,642,675..SCB..(DM3,DM5,DM6,DM7,T3);XZC605,645,655,675,XZU605,640,645,65#,685,695..SCB..(IV3,IV5,IV6)202103-202310

main64811-37210iXZU675..T4..IV3;XZC600,630,XZU600,602,630,642,675..SCB..(DM3,DM5,DM6,DM7,T3);XZC605,645,655,675,XZU605,640,645,65#,685,695..SCB..(IV3,IV5,IV6)202310

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37041iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB202103

main64831-37051iXZU600,640,685..IV4202103

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-37040iXZU600,640,685..IV4202103

86245ABRACKET, VOLTAGE CONVERTER

main86245-37030iXZU605,655,685,695..DCB..20T202103

9017906274

main90179-06274

9046708033

main90467-08033

9167180620

main91671-80620

9261660610

main92616-60610

20 parts on this diagram · 5 diagrams in section
