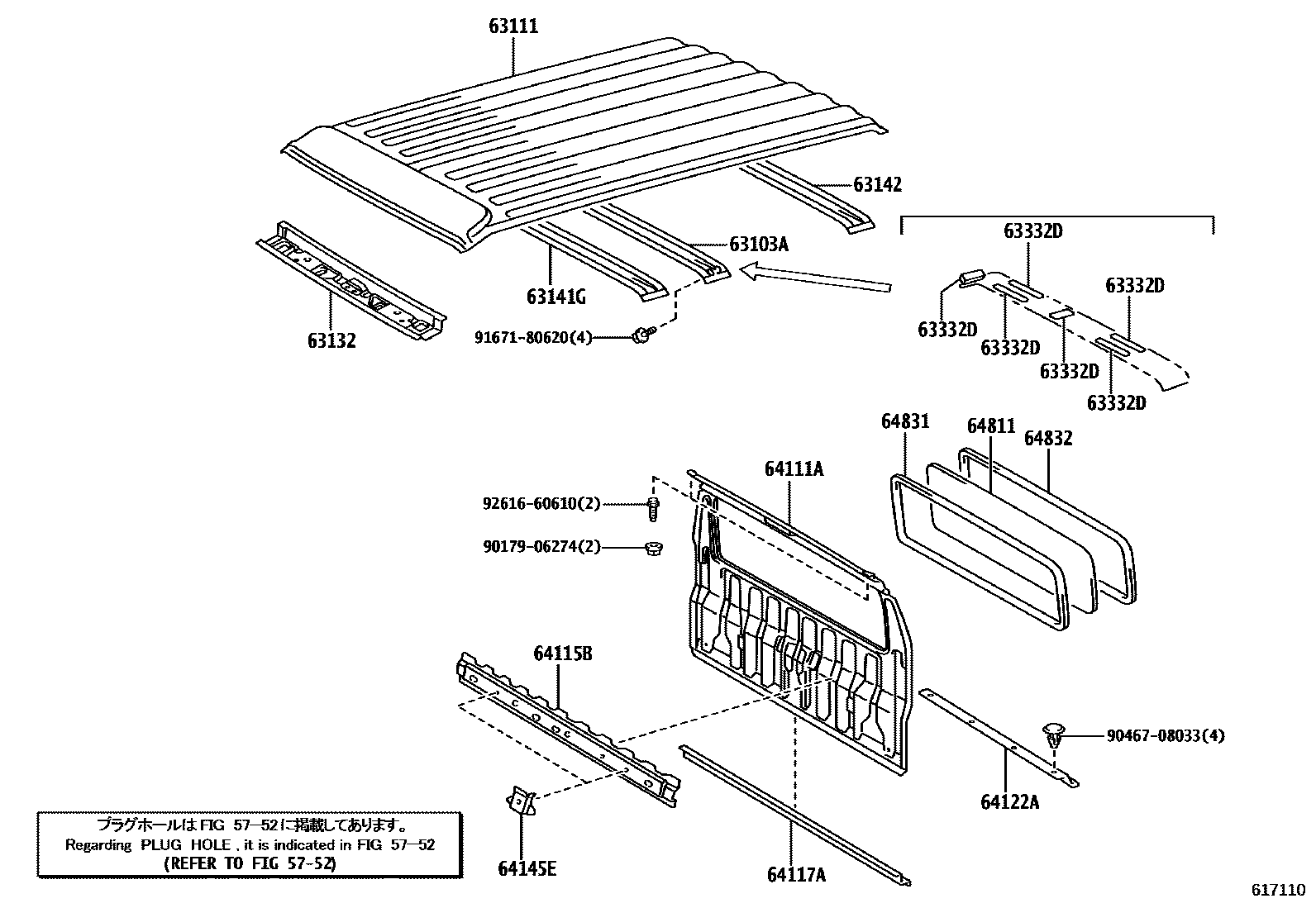

Toyota DYNA — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1����������� 0005 1���������

5752

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63123-37011iTRY230..10T202108

63111PANEL, ROOF

main63111-37120iGDY231,281..SCB202108-202509

main63111-37140iGDY231,281..DCB202108-202509

63132PANEL, WINDSHIELD HEADER, INNER

main63109-37050iGDY231,281202209-202509

main63132-37074iGDY231,281,TRY230202108-202209

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37170iGDY231,281202108-202509

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-37141iGDY231,281,TRY230..DCB202108-202209

main63141-37142iGDY231,281..DCB202210-202509

63332DPAD, SUN ROOF HEADLINING

main63332-37010×4iGDY231,281..DCB202108-202509

main63332-37020iTRY230..10T202108

main63332-37040iTRY230..10T202108

64111APANEL, BACK

main64111-37376iTRY230..125T202108

main64111-37514iTRY230..10T202108

64115BREINFORCEMENT, BACK PANEL

main64115-25040iGDY231,281,TRY230202108-202210

main64115-25041iGDY231,281,TRY230202211-202410

main64115-25042iGDY231,281,TRY230202411-202412

main64115-25043iGDY231,281202412-202509

64117AREINFORCEMENT, CAB BACK, LOWER

main64117-37030iGDY231,281..DCB202108-202509

64122ABAFFLE, DUST REAR BODY

main64122-25020iGDY231,281..DCB202108-202509

64145EBRACKET, REAR SEATBACK SET

main64145-37020×2iGDY231,281..DCB202108-202509

64811GLASS, BACK WINDOW

main64811-25030iGDY231,281,TRY230..SCB..(CBU,IV3)202108-202305

main64811-25050iGDY231,281,TRY230..DCB202108-202305

main64811-37210iGDY231,281..SCB..(CBU,IV3)202305-202509

main64811-37220iTRY230..10T202305

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37041iTRY230..125T..(CBU,IV3)202108

main64831-37051iGDY231,281..DCB202108-202509

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-37040iGDY231,281..DCB202108-202509

9017906274

main90179-06274

9046708033

main90467-08033

9167180620

main91671-80620

9261660610

main92616-60610

19 parts on this diagram · 5 diagrams in section
