Toyota DYNA — REFLEX REFLECTOR
81480DREFLECTOR ASSY, REFLEX, RH
81490EREFLECTOR ASSY, REFLEX, LH
81580REFLECTOR ASSY, REFLEX SIDE, RH
main81580-37031iXZC655,XZU65#,695..(20T,30T,35T)..CBU; XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU; XZU640,642..IV6; XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU; XZU650..40T..CBU;XZC655,XZU65#,695..IV3,IV6; XZU652..IV3;XZC655,XZU650,655,695..IV3,IV6202103
81590REFLECTOR ASSY, REFLEX SIDE, LH
main81590-37031iXZC655,XZU65#,695..(20T,30T,35T)..CBU; XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU; XZU640,642..IV6; XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU; XZU650..40T..CBU;XZC655,XZU65#,695..IV3,IV6; XZU652..IV3;XZC655,XZU650,655,695..IV3,IV6202103
81910REFLECTOR ASSY, REFLEX, RH
main81910-37070×2iXZC655,XZU65#,695..(20T,30T,35T)..CBU; XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU; XZU640,642..IV6; XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU; XZU650..40T..CBU;XZC655,XZU65#,695..IV3,IV6; XZU652..IV3;XZC655,XZU650,655,695..IV3,IV6202103
81910DREFLECTOR ASSY, REFLEX, REAR
main81910-37110×2iXZC600,630,675,XZU600,630,642,675..DM3,DM5,DM7; XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU202103
main81910-25041×2iXZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU; XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU202103
81910JREFLECTOR ASSY, REFLEX, REAR NO.2
81910MCLIP OR RIVET, REFLEX REFLECTOR
main90467-05090-C1×4iXZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU; XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU202103
81920REFLECTOR ASSY, REFLEX, LH
main81910-37070×2iXZC655,XZU65#,695..(20T,30T,35T)..CBU; XZC655,XZU650..T4..CBU;XZU655..T4..6FC..20T..CBU; XZU640,642..IV6; XZU650..(20T,30T)..CBU;XZU655..(T3,T4)..6FC..20T..CBU; XZU650..40T..CBU;XZC655,XZU65#,695..IV3,IV6; XZU652..IV3;XZC655,XZU650,655,695..IV3,IV6202103
9017905004
main90179-05004
9026905010
main90269-05010

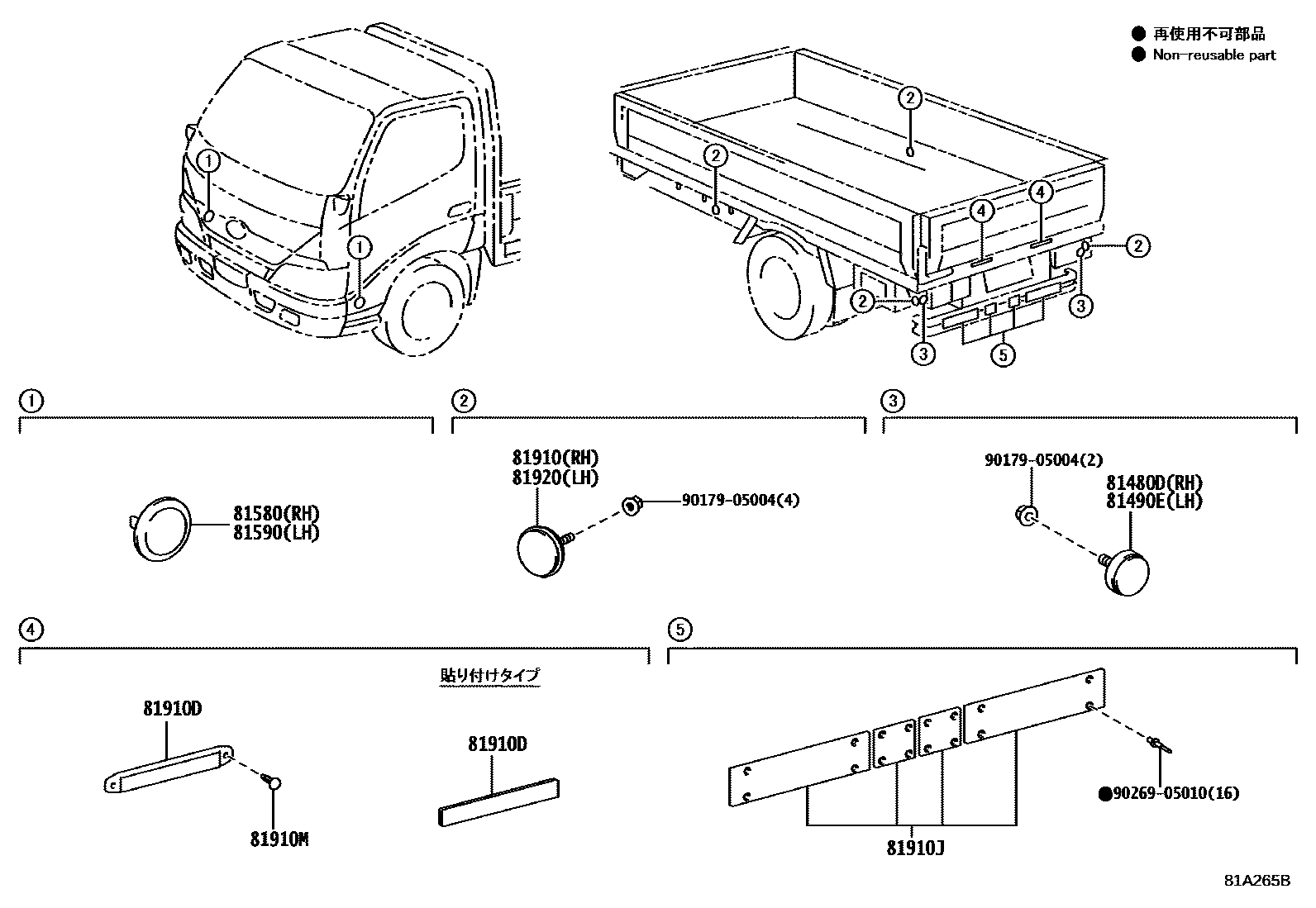

11 parts on this diagram · 1 diagram in section
REFLEX REFLECTOR for Toyota DYNA
This section contains 11 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota DYNA. Key components include: REFLECTOR ASSY, REFLEX, RH, REFLECTOR ASSY, REFLEX, LH, REFLECTOR ASSY, REFLEX SIDE, RH, REFLECTOR ASSY, REFLEX SIDE, LH.
