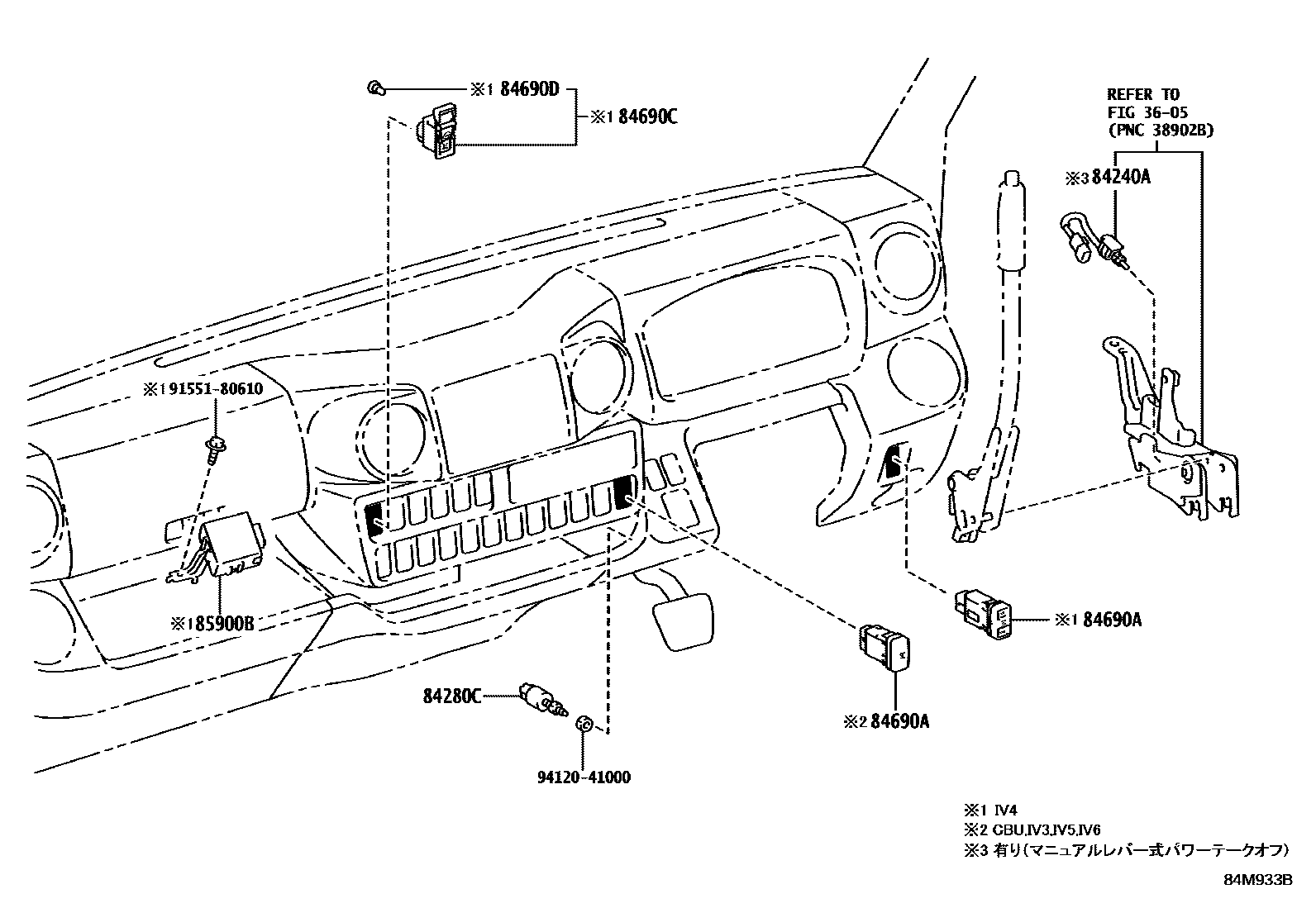

Toyota DYNA — POWER TAKE-OFF CONTROL
3605POWER TAKE-OFF LEVER & LINK
84240ASWITCH ASSY, POWER TAKE-OFF INDICATOR
main84240-37050iXZU600,602,640,642,650,652..6F..IV6; XZU600,640,642,650..6F..(35T,40T)..IV6; XZU600,640,650..6F..(35T,40T)..IV6; XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,642,650,652,685..MTM..IV6;XZC600,630,675,XZU602,630,675..(DM5,DM7,T3)..MTM; XZU600..DM5..6F..30T..IV3;XZU602,640,642,650,652..6F..IV6;XZC600,XZU600..(DM5,T3)..6F..(20T,40T)..(IV3,IV6); XZU600..DM5..6F..IV3; XZU650..IV6;XZU600..DM5..6F..IV3; XZU675..T4..IV3; XZU675..T4..IV3;XZU605..T4..6F..30T..IV3; XZU685..30T..IV3202103
84280CSWITCH ASSY, POWER TAKE-OFF CLUTCH
84690ASWITCH ASSY, POWER TAKE-OFF INDICATOR
main84690-37070iXZC605,645,655,XZU600,605,640,645,65#..(T2,T3,T4,T5)..6FC..(CBU,IV3); XZU600..6F..40T;XZU600,605,652,685..(T2,T3,T4,T5)..MTM..(CBU,IV3);XZC605,645,655,675,XZU64#,650,655,675,695..(T2,T3,T4,T5)..MTM..(CBU,IV3,IV6); XZU600..DM5..6F..IV3; XZU600..DM5..6FC;XZU605,642..DM6,DM7;XZU600,652..6FC..IV6;XZC600,XZU602,642..6FC; XZU640,645,650..6F..(30T,35T,40T)..(IV3,IV6);XZU600,605..(T3,T5)..6F..(20T,40T)..(IV3,IV6); XZU650..40T..CBU;XZU655..6F..30T..IV3;XZU652..6F..(CBU,IV3);XZU655..(T3,T4)..6F..CBU;XZU605..T5..6F..20T..IV3;XZU650..6F..(20T,30T,35T);XZU600,640..(DM5,T4)..6F..IV3;XZC605,645,655,675,XZU605,640,645,675,685,695..(T2,T3,T4,T5)..MTM..CBU; XZU650..T3..6F..20T..IV3;XZU605,655,685..DCB..MTM..IV3202103
84690CSWITCH ASSY, POWER TAKE-OFF INDICATOR, NO.2
84690DBULB, POWER TAKE OFF INDICATOR, NO.2
85900BRELAY ASSY, CONTROL UNIT
main85900-37250iXZU600..6F..40T;XZU600,605,652,685..(T2,T3,T4,T5)..MTM..(CBU,IV3);XZC605,645,655,675,XZU64#,650,655,675,695..(T2,T3,T4,T5)..MTM..(CBU,IV3,IV6); XZU600..DM5..6F..IV3; XZU605,642..(DM6,DM7)..6F; XZU640,645,650..6F..(30T,35T,40T)..(IV3,IV6);XZU600,605..(T3,T5)..6F..(20T,40T)..(IV3,IV6); XZU642..IV3; XZU650..40T..CBU;XZU655..6F..30T..IV3;XZU652..6F..(CBU,IV3);XZU655..(T3,T4)..6F..CBU;XZU605..T5..6F..20T..IV3;XZU650..6F..(20T,30T,35T);XZU600,640..(DM5,T4)..6F..IV3;XZC605,645,655,675,XZU605,640,645,675,685,695..(T2,T3,T4,T5)..MTM..CBU; XZU650..T3..6F..20T..IV3;XZU605,655,685..DCB..MTM..IV3202103
9155180610
main91551-80610
9412041000
main94120-41000
9 parts on this diagram · 2 diagrams in section
POWER TAKE-OFF CONTROL for Toyota DYNA
This section contains 10 genuine Toyota parts for the POWER TAKE-OFF CONTROL system of the Toyota DYNA. Key components include: POWER TAKE-OFF LEVER & LINK, SWITCH ASSY, POWER TAKE-OFF INDICATOR, SWITCH ASSY, POWER TAKE-OFF CLUTCH, SWITCH ASSY, POWER TAKE-OFF INDICATOR, NO.2.
