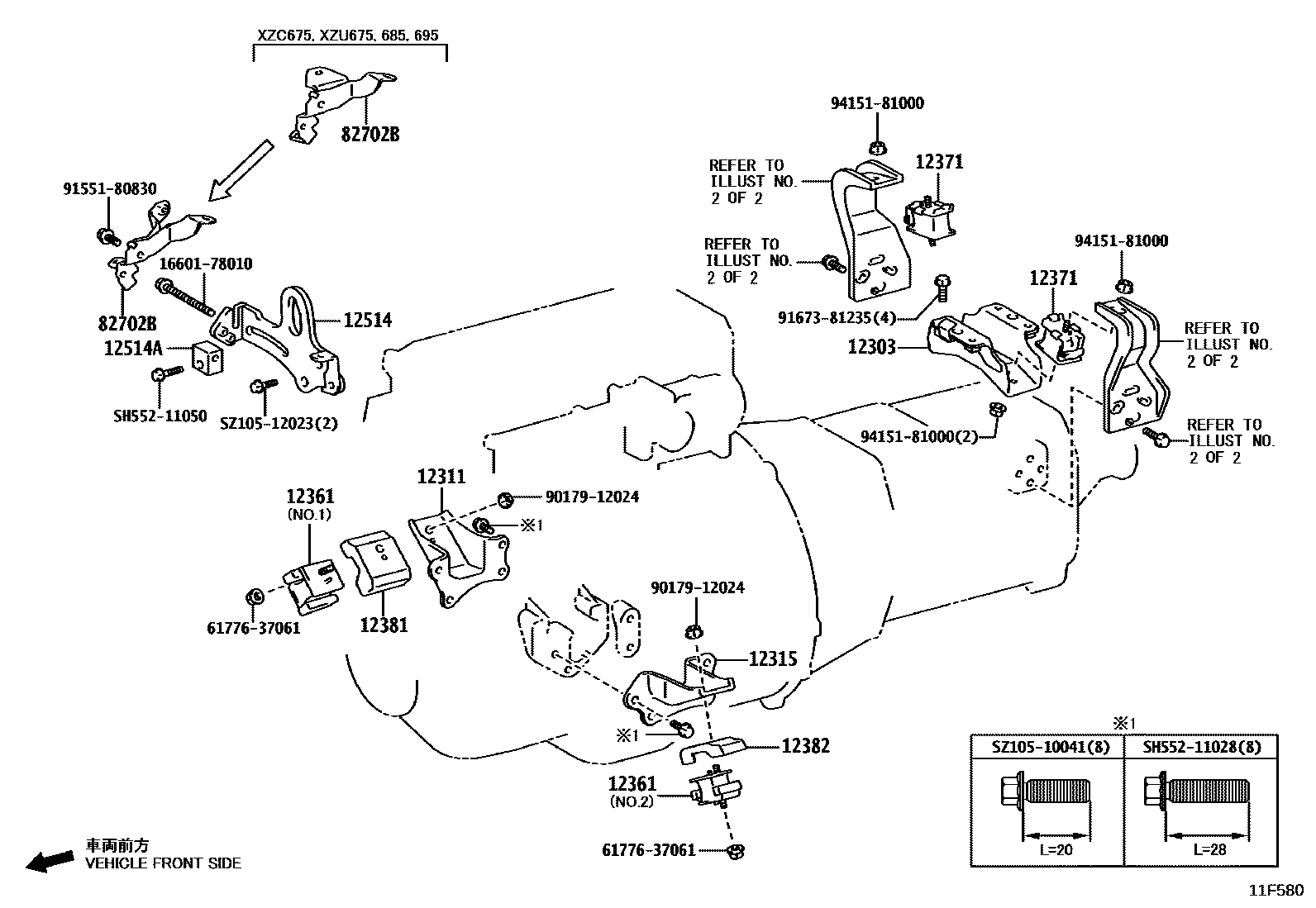

Toyota DYNA — MOUNTING
12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12381STABILIZER, ENGINE MOUNTING
main12381-78040iN04C..XZU675,685,695;N04C..XZU600,650..35T,40T;N04C..XZC675,XZU602,640,642,652..20T,35T,40T202103
12382STABILIZER, ENGINE MOUNTING, LH
main12381-78040iN04C..XZU675,685,695;N04C..XZU600,650..35T,40T;N04C..XZC675,XZU602,640,642,652..20T,35T,40T202103
12514BAR, ALTERNATOR BELT ADJUSTING
main27112-78021iN04C..XZC605,645,655,XZU60#,64#,65#..(DM6,DM7,T2,T3,T4,T5)..(CBU,IV3,IV6); N04C..XZU600,640..IV4202103
12514ASLIDER, FAN BELT ADJUSTING
82702BBRACKET SUB-ASSY, WIRING HARNESS
1660178010TENSIONER SUB-ASSY, V-RIBBED BELT
main16601-78010
6177637061STRENGTH, QUARTER PANEL HORIZONTAL, LOWER CENTER RH
main61776-37061
9017912024
main90179-12024
9155180830
main91551-80830
9167381235
main91673-81235
9415181000
main94151-81000
SH55211028
mainSH552-11028
SH55211050
mainSH552-11050
SZ10510041
mainSZ105-10041
SZ10512023
mainSZ105-12023
20 parts on this diagram · 2 diagrams in section
MOUNTING for Toyota DYNA
This section contains 24 genuine Toyota parts for the MOUNTING system of the Toyota DYNA. Key components include: BRACKET SUB-ASSY, ENGINE MOUNTING, REAR, BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, NO.3.
