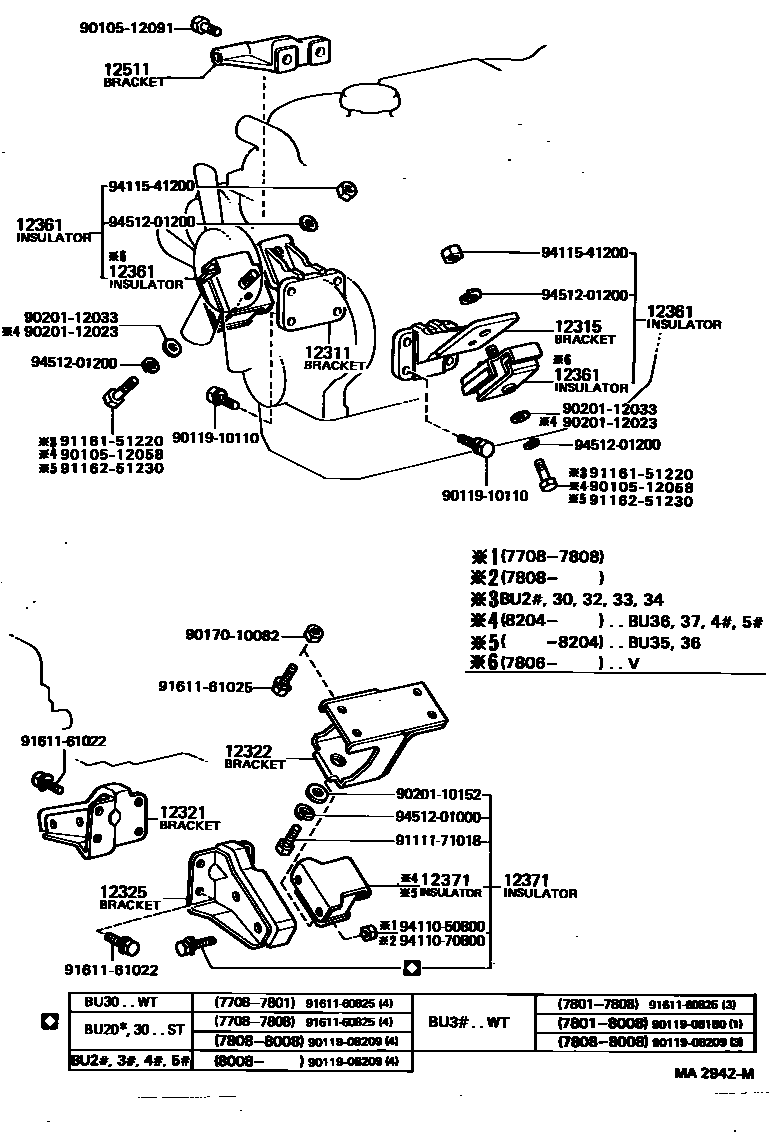

Toyota DYNA — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-56010iB,2B..BU2#,3#197708-198008

main12311-56030iB,3B..BU2#,3#,4#,5#198008-198408

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-56010iB,2B..BU2#,3#197708-198008

main12311-56030iB,3B..BU2#,3#,4#,5#198008-198408

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-56031iB..BU20..HRF,SRF,T1,T2,TW1,TW2197708-198204

main12321-56040iB..BU20..(DM1,TB)..H50;B..BU20..T3..03S..WT..ATP..DSL197708-198008

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-56040×2i3B..BU21,23..DM1,DM4198204-198408

main12322-56050×2iB..BU20..CTP;B..BU20..KKT..IV3;B..BU20..TB..H50..03S..20T..ATP;B..BU20..(DM3,TB)..H50..20T..CBU198008-198204

main12322-56060×2iB..BU20,22,30,33..M50198204-198408

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-56021iB..BU20,22..M50;3B..BU21,23..DM3;3B..BU21,23..BTP,FTP198204-198408

main12325-56030iB..BU20,30..(DM1,TB)..H50..(20T,275)198008-198204

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-56040×2iB,3B..BU35,36,37,4#,5#198008-198408

main12361-56050×2iB..BU20..V197806-197812

main12361-56051×2iB..BU20,22..V197812-198408

main12361-59025×2iB..BU20..DM1197708-197801

main12361-59026×2iB..BU20..DM1197801-197806

main12361-59055×2iB..BU20..CTP;B..BU20,30..TR,V197708-197806

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-48010×2iB,3B..BU35,36,37,4#,5#198008-198408

main12371-59025×2iB..BU20,22..TR;B..BU20,22..DTP;B,3B..BU21,23,30,32,33,34198204-198408

main12371-59035×2iB..BU2#,30197708-197806

sub12371-57011

12511BRACKET, ALTERNATOR, NO.1

main12511-56020iB,2B..BU2#,3#197708-198008

main12511-56030iB,3B..BU20,3#198008-198202

main12511-56031iB,3B..BU2#,3#,4#,5#198202-198408

9010512058

main90105-12058

9010512091

main90105-12091

9011908180

main90119-08180

9011908209

main90119-08209

9011910110

main90119-10110

9017010082

main90170-10082

9020110152

main90201-10152

9020112023

main90201-12023

9020112033

main90201-12033

9111171018

main91111-71018

9116151220

main91161-51220

9116251230

main91162-51230

9161160825

main91611-60825

9161161022

main91611-61022

9161161025

main91611-61025

9411050800

main94110-50800

9411070800

main94110-70800

9411541200

main94115-41200

9451201000

main94512-01000

9451201200

main94512-01200

28 parts on this diagram · 1 diagram in section
