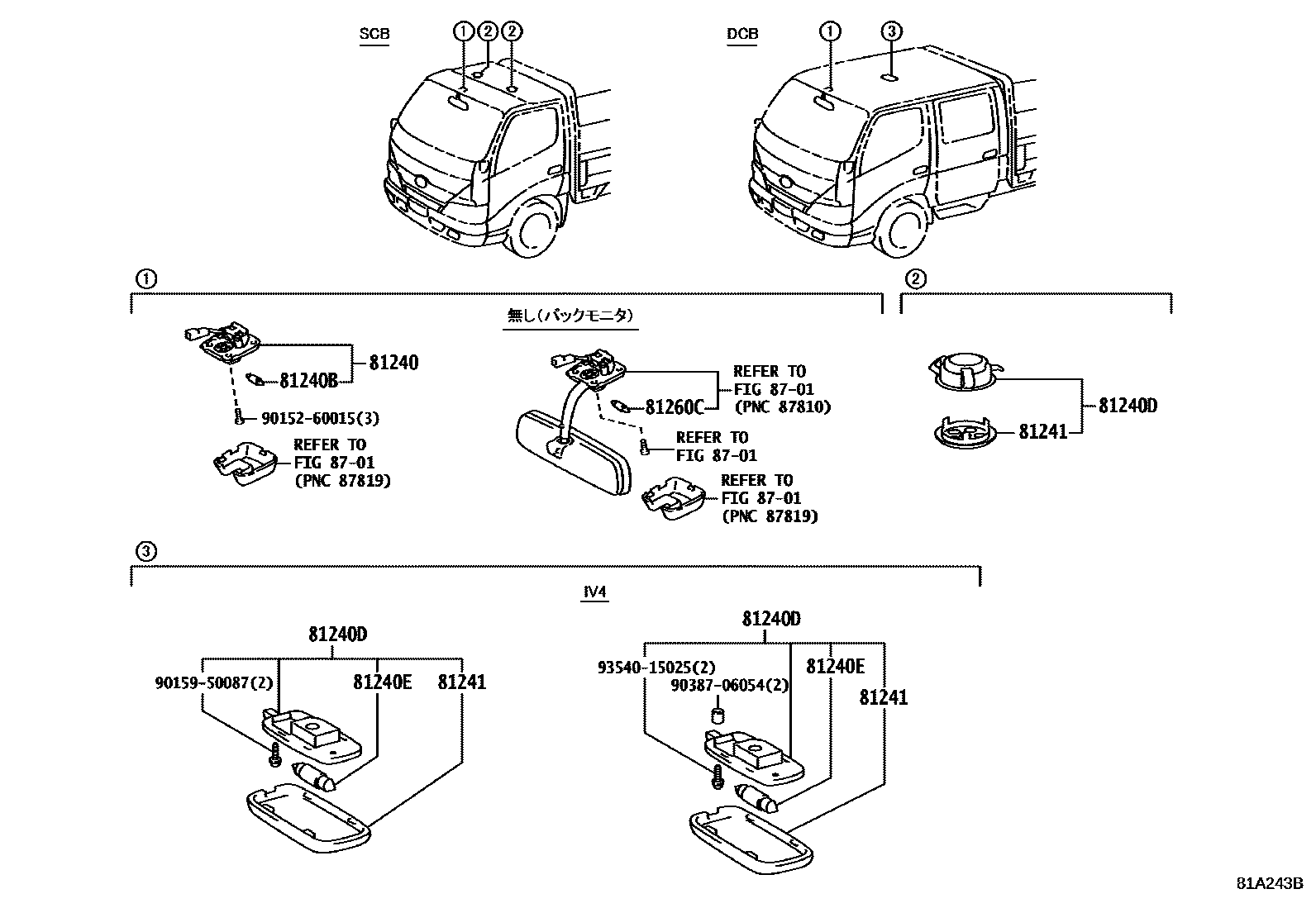

Toyota DYNA — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM1#
81240BBULB, ROOM LAMP, NO.1
main90981-16019iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..IV3,IV4,IV5,IV6,IV7; XZU675..T4..IV3;XZC600,630,XZU600,602,630,642,675..DM3,DM5,DM6,DM7,T3;XZC605,645,655,675,XZU605,640,645,65#,685,695..IV3,IV4,IV5,IV6202310
81240DLAMP ASSY, ROOM, NO.2
MD.CHARCOAL,TRIM1#
MD.CHARCOAL,TRIM1#
81240EBULB, ROOM LAMP, NO.2
81241LENS, ROOM LAMP, NO.1
81260CBULB(FOR MAP LAMP)
main90981-16019iXZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU; XZU675..T4..IV3;XZC600,630,XZU600,602,630,642,675..DM3,DM5,DM6,DM7,T3;XZC605,645,655,675,XZU605,640,645,65#,685,695..IV3,IV4,IV5,IV6202103-202310
8701MIRROR
9015260015
main90152-60015
9015950087
main90159-50087
9038706054
main90387-06054
9354015025
main93540-15025
11 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota DYNA
This section contains 11 genuine Toyota parts for the INTERIOR LAMP system of the Toyota DYNA. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2, LENS, ROOM LAMP, NO.1.
